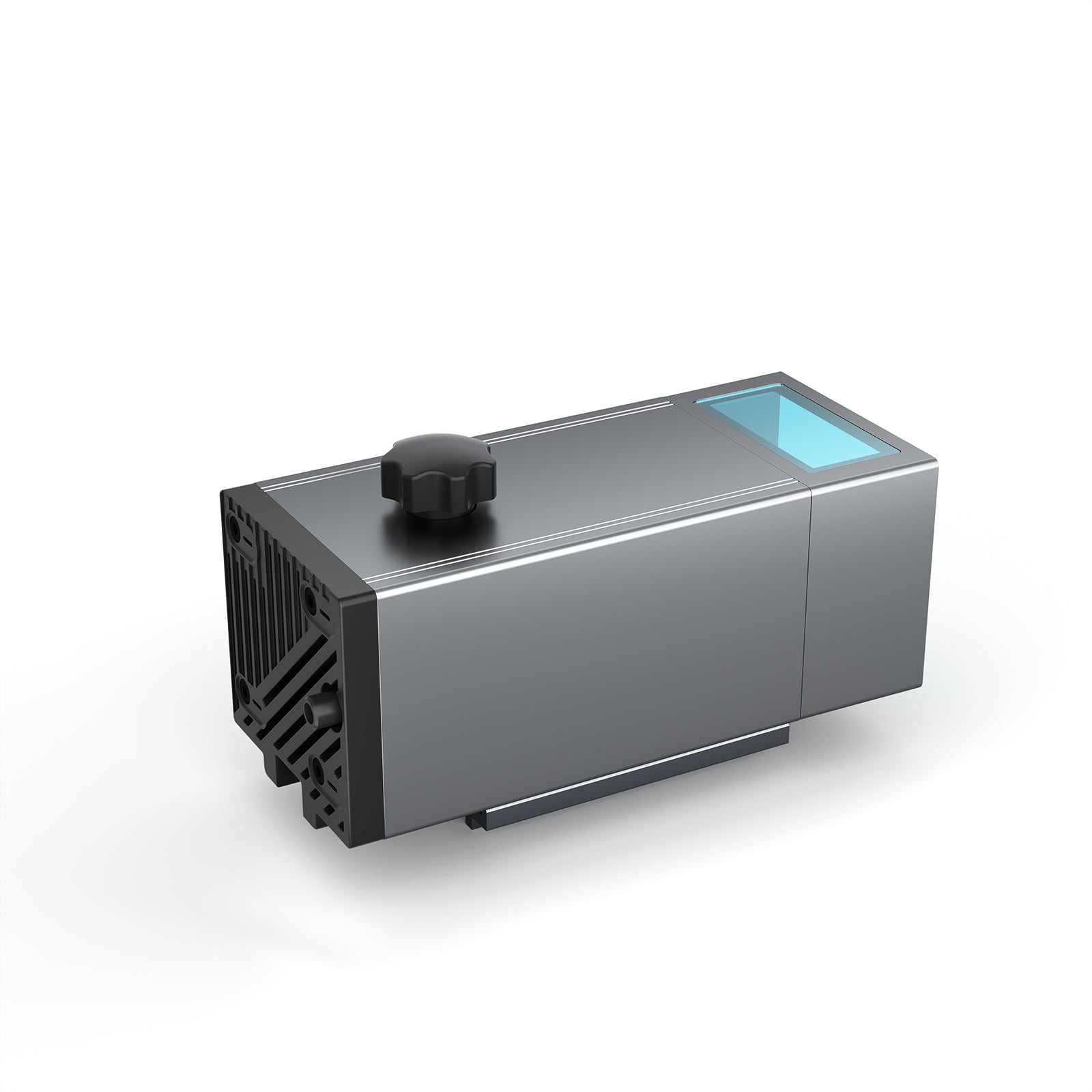

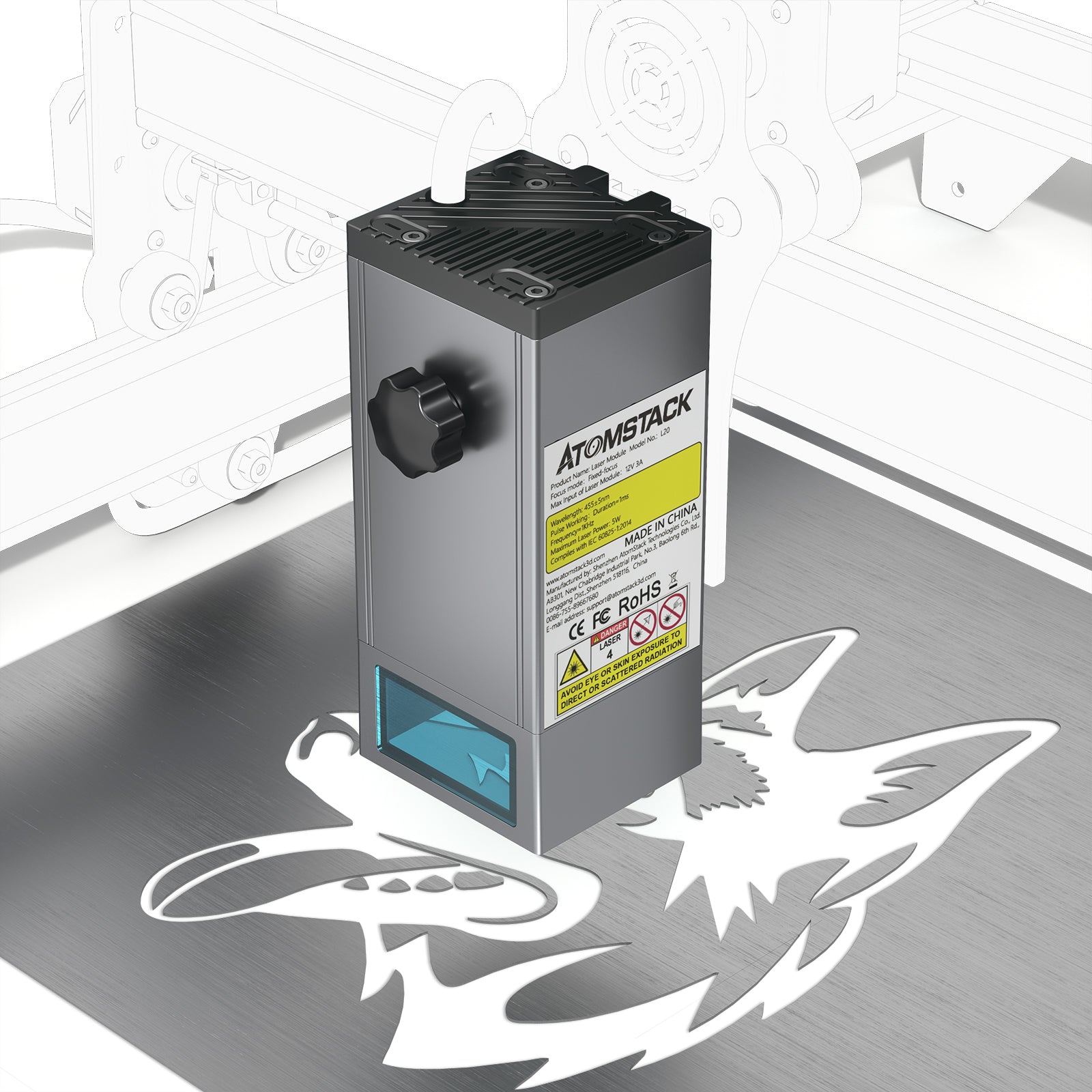

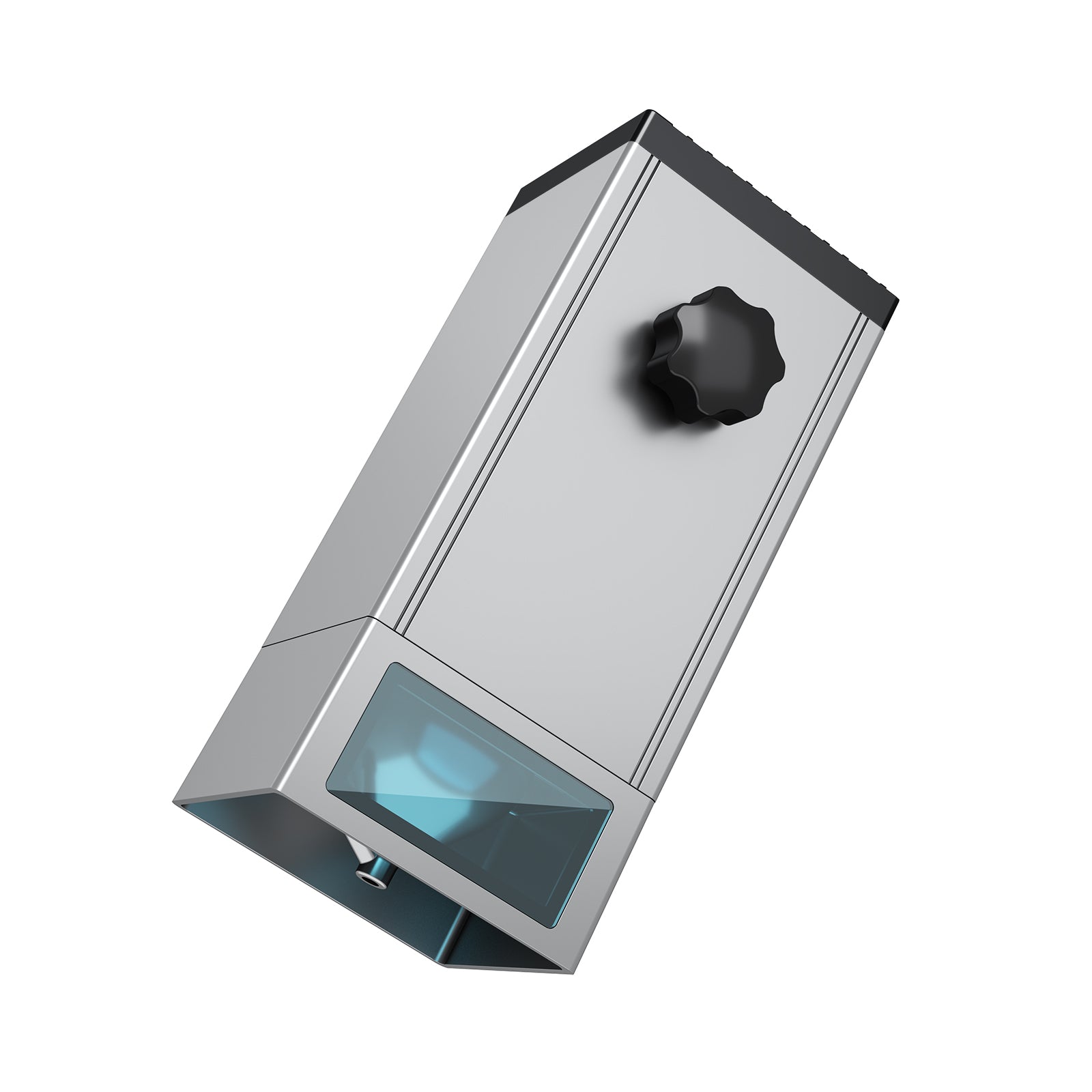

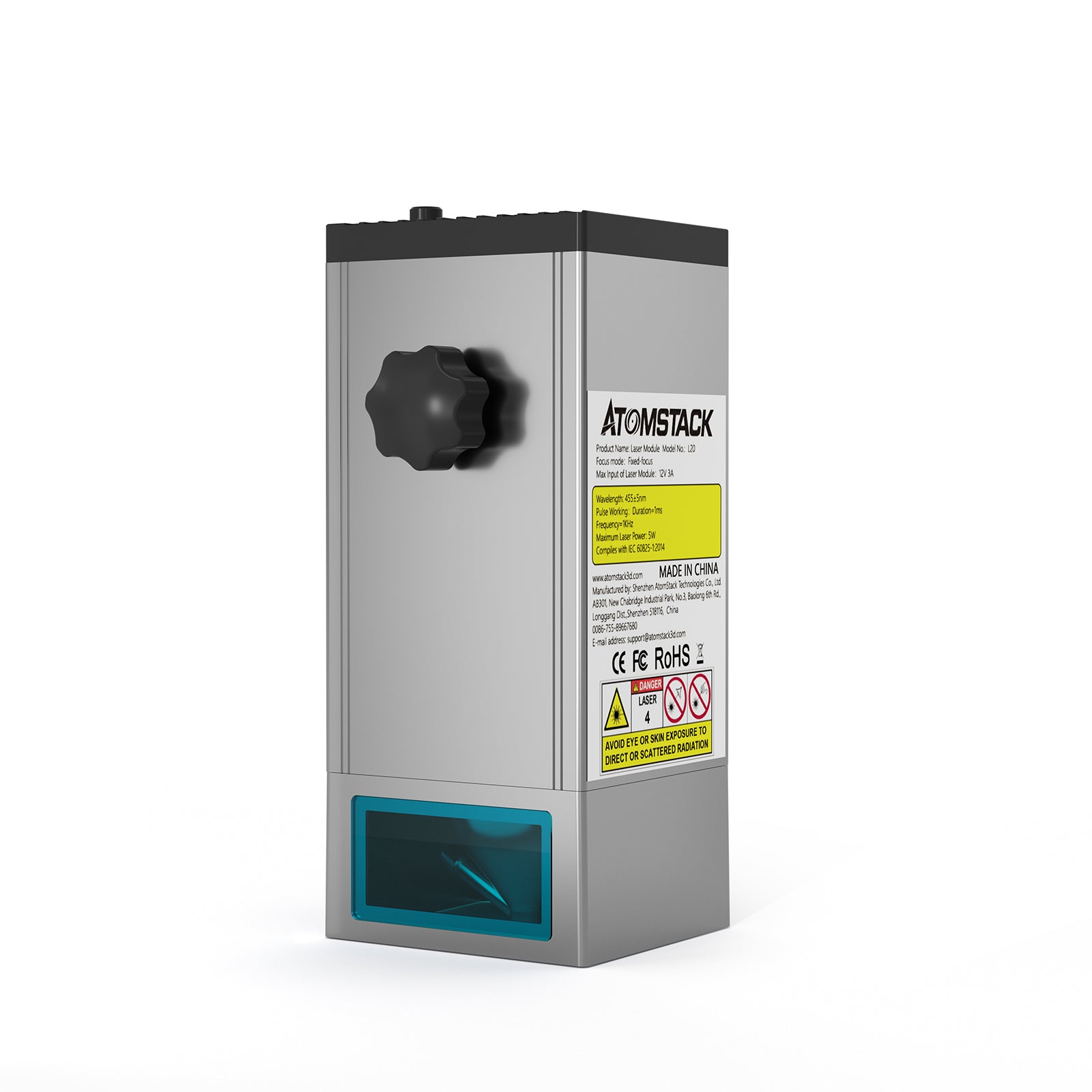

Atomstack M100 130W Quad Laser Module With Air Assist System

$499.99

👉The World's First Quad-core Diode Laser
👉12mm Solid wood Cutting in One-PASS
👉8mm Acrylic Cutting in One-PASS
👉It can even cut 0.05mm thin sheet metal
👉Built-in Powerful air assist kit

PLUG TYPE & SHIP TO: US PLUG / USA

US PLUG / USA
EU PLUG / EU MEMBER STATES
UK PLUG / CN
AU PLUG / CN
  • Warranty:
    1-Year for New Machines

  • Shipping Time:
    Within 1-3 Days

  • International Express:
    3-5 Working Days

  • Liner Logistic:
    7-10 Working Days

Note: Customs duties will be incurred if your order is shipped from China.
Pre-sales: +86 159 8667 9892; +86 137 9752 3312 (Whatsapp)
After-sales: support@atomstack.net

paypalvisamasteramerican expressapple payklarna

The new 20W laser module you've been waiting for with the Atomstack X20 Pro is finally here. This time, it will be available for all frame-based Atomstack models.

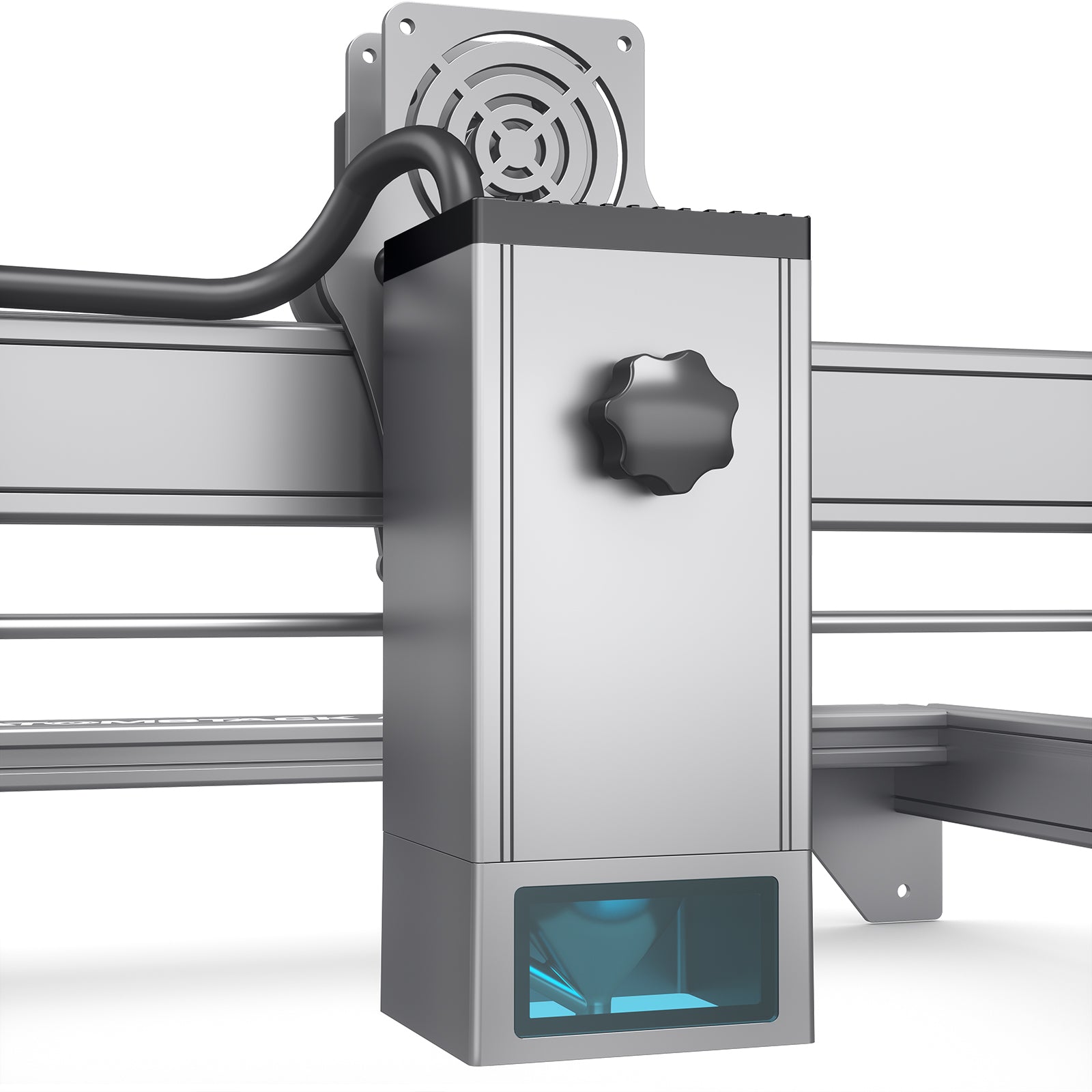

Atomstack M100 fits the following models:

  • X7 Pro, X7 40W
  • X20 Pro, S20 Pro, A20 Pro
  • A10 Pro, S10 Pro
  • A5 20W, A5 30W, A5 M30, A5 Pro, A5 M40, A5 Pro+, A5 M50, A5 M50 Pro



Features:

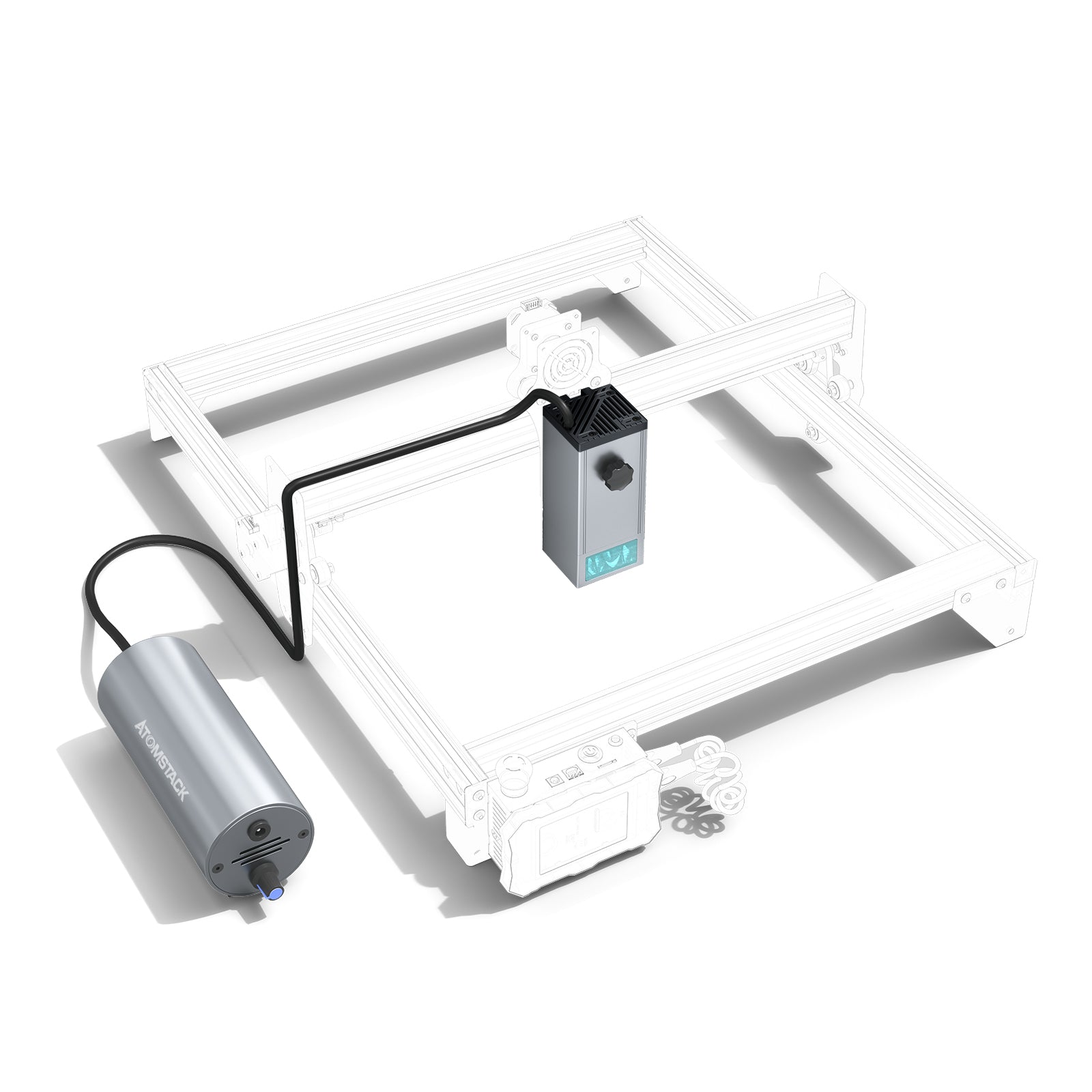

1. Equipped with air-assisted system, which is extremely helpful for cutting and engraving.

2. It works on all Atomstack frame-mounted models, just replace your old laser module.

3. Made of aluminum, strong and durable.

4. The laser head is equipped with a goggle piece that protects the user's eyes while preventing pets from grabbing the laser dot.

5. Upgraded high quality fixed-focus laser, no need to focus.

6. Aviation aluminum TTL driver board with cooling fan can ensure continuous long time work.

7. Engraving speed is 200% higher than other 10W lasers.

8. The laser sintering temperature is 2400 degrees, the effect of engraving metal is better.

9. The wind-collecting hood can clean the smoke and dust to protect the lens to avoid laser energy attenuation.

Specification:

Brand: Atomstack
Model: M100
Machine Power: 130W
Laser Power: 20W
Product Material: Aluminum 6061 Anode
Housing Size: 140*65*60mm
Circuit Board Size: 44*52mm
Circuit Board: V/PWM Modulation Board
Wire Rod: 22# 2P2.54 Terminal Reverse Wire 80mm
Optical Lens: φ6/glass
Fan: 24V
Laser Beam Mode: Spot
Working Mode: Pulse Work
Lightspot Size: 0.08*0.1mm
Working Time: 10000H
Working Temperature: 0℃~70℃
Storage Temperature: -40℃~85℃
Sintering Temperature: 2000~2400℃
Product Net Weight: 715g

Details:

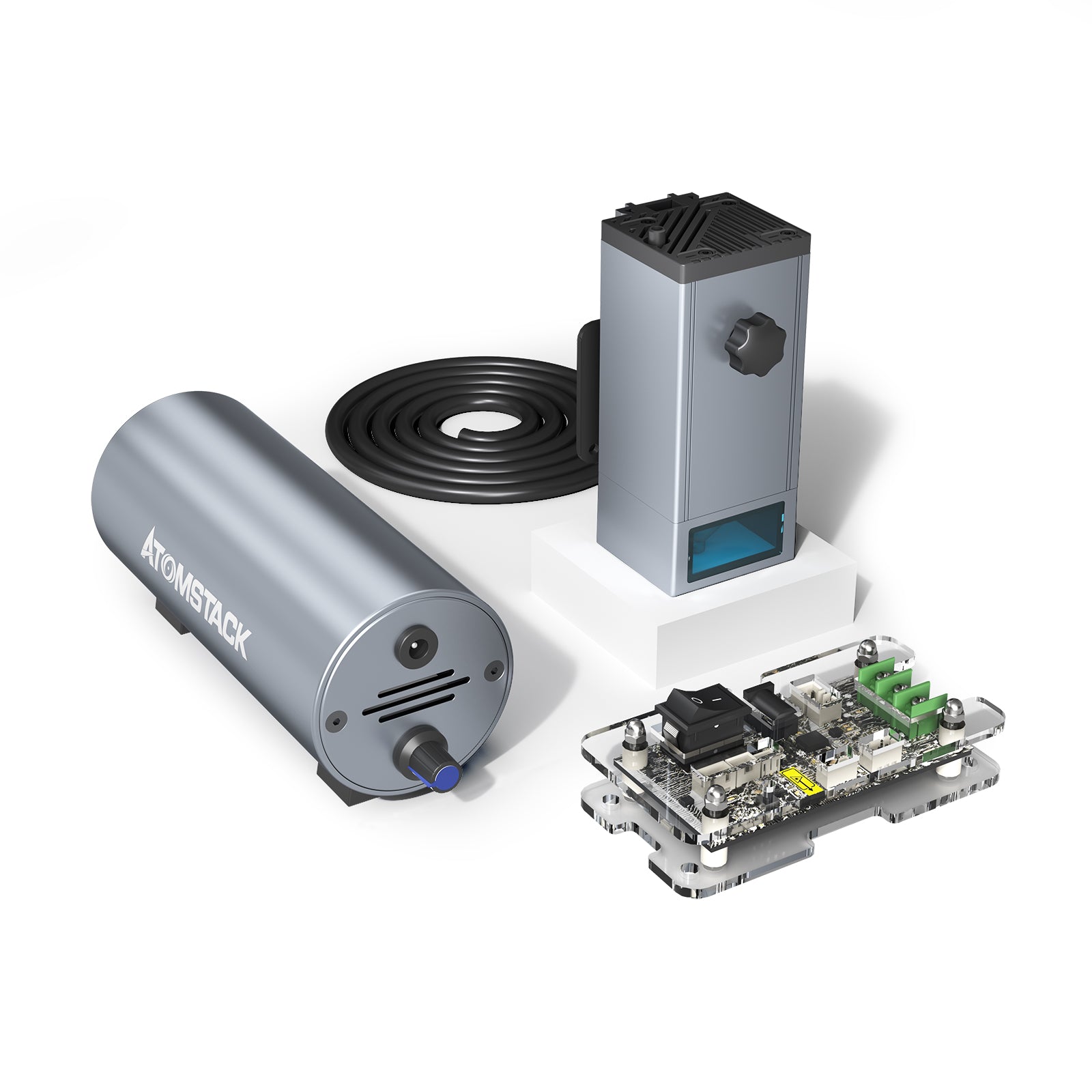

Package Included:

1* M100 Laser Module
1* PCB Circuit Board
1* Compatible Plate(5W series and 10W series use different adapter boards, please pay attention to the distinction)
1* Fixed Focus Plate
1* Connection Line
1* Wrench
6* Screws
1* Power Supply
1* F30 Air assist kit
