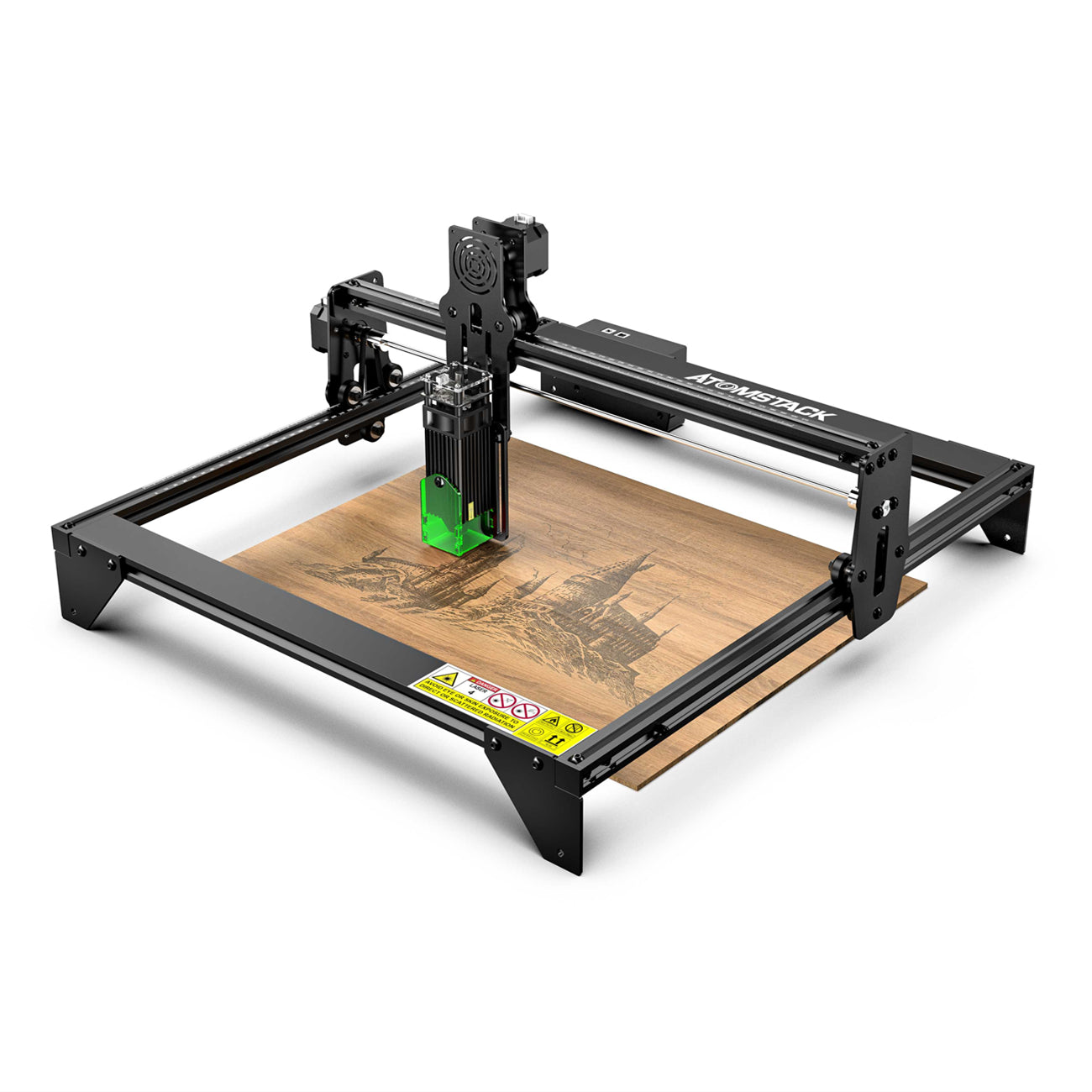

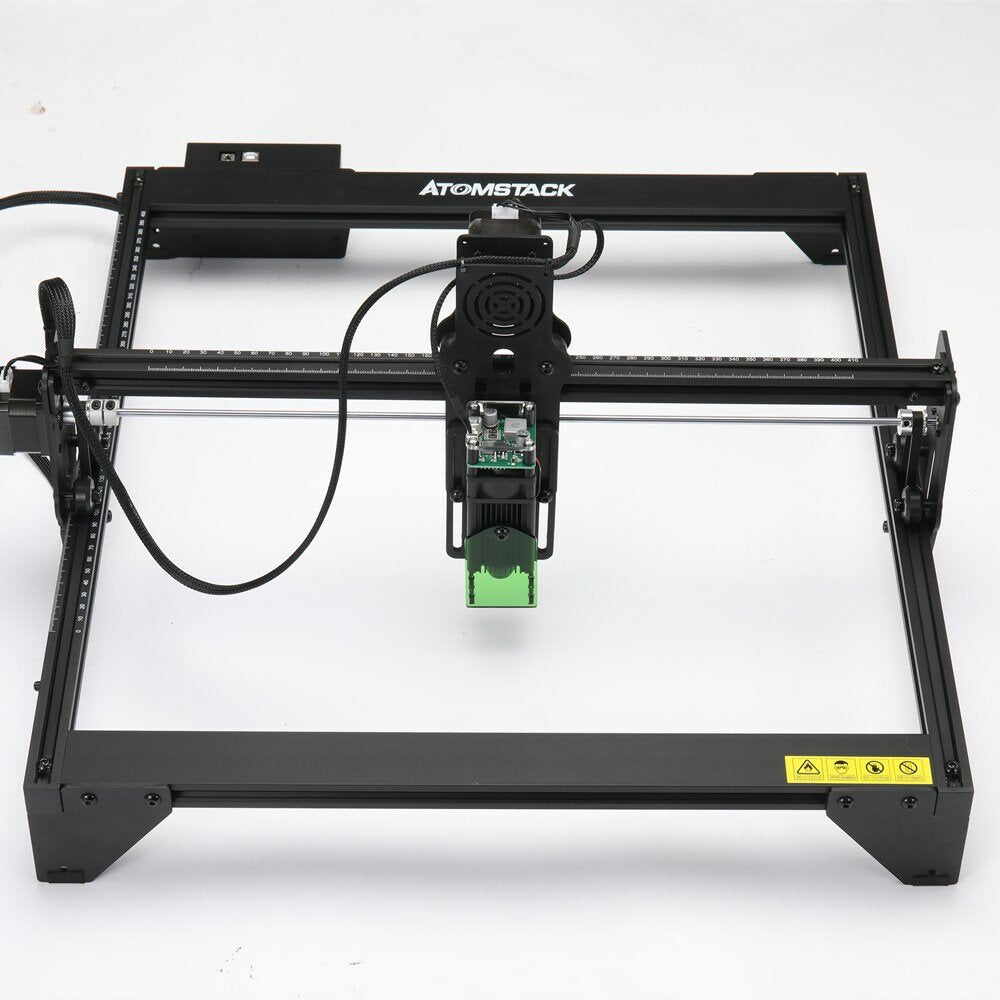

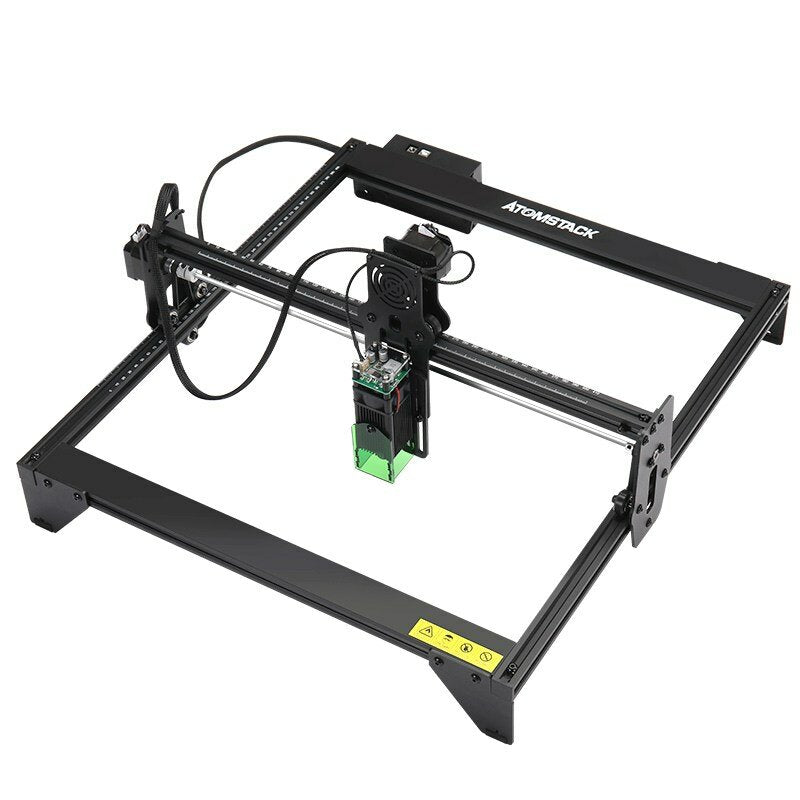

ATOMSTACK A5 20W Laser Engraving Machine

$229.99

$5 Off Coupon:  ALL5OFF

One Year Global Warranty

We have American and European (Germany or Czech) warehouses, usually take 3-8 days to you. A few Accessories will be shipped from China warehouse, usually take 10-15 days.

Notify: All orders for purchasing bundles will be shipped by different packages. There will be multiple tracking numbers. All of them may not reach you at the same time.

Plug Type: US Plug

  • US Plug
  • EU Plug
Out of stock
SKU: A520W-USN/AAvailability : In StockIn StockOut of stock

Video:

Features:

1. New eye protection design: The laser protective cover perfectly protect your eyes,filter UV light for 97%. You and the people around can watch laser engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.

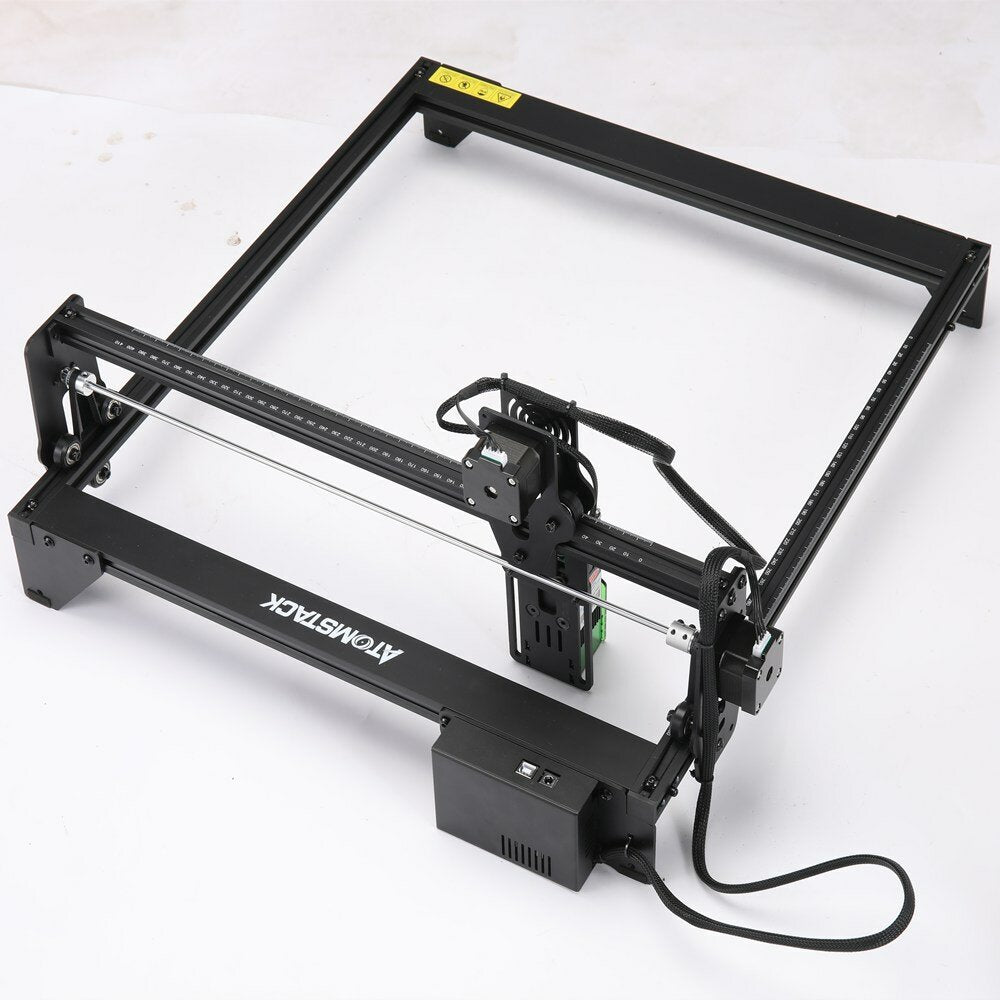

2. Solid and easy installation structure design: The full-metal structure design makes the machine more solid, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

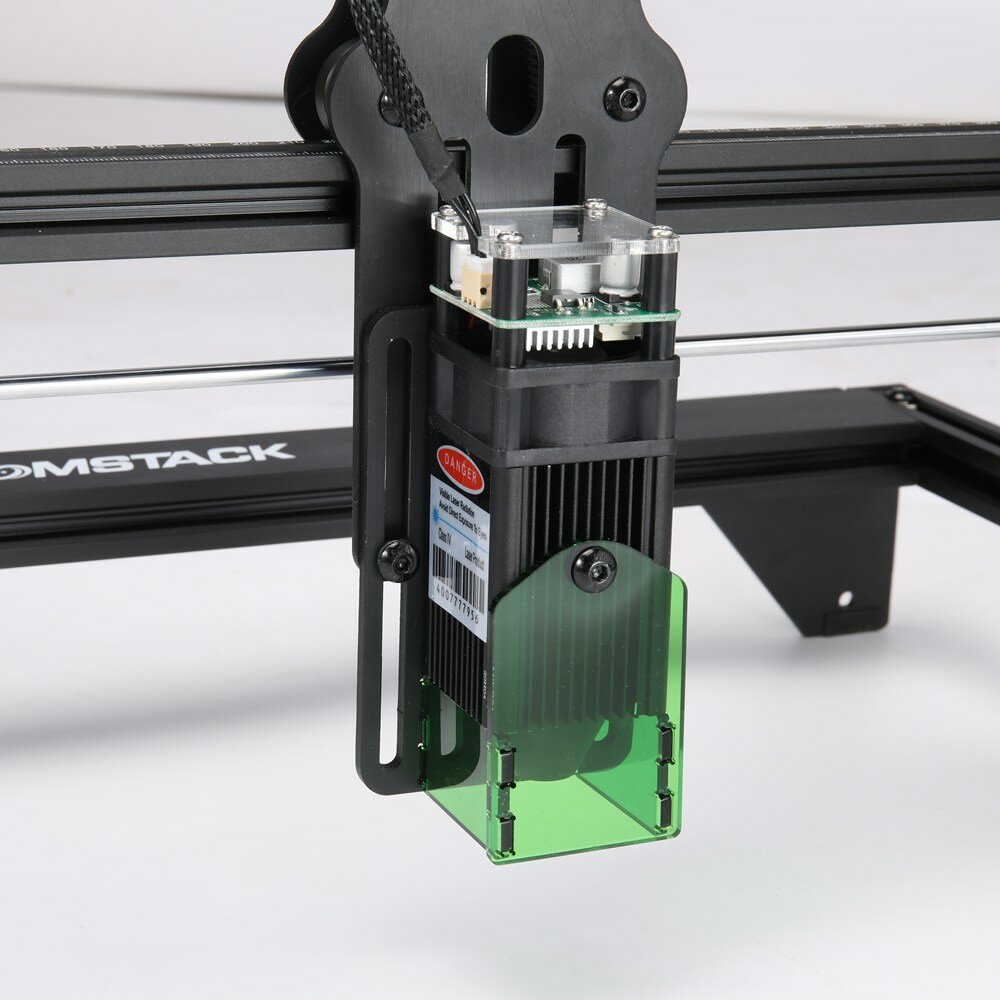

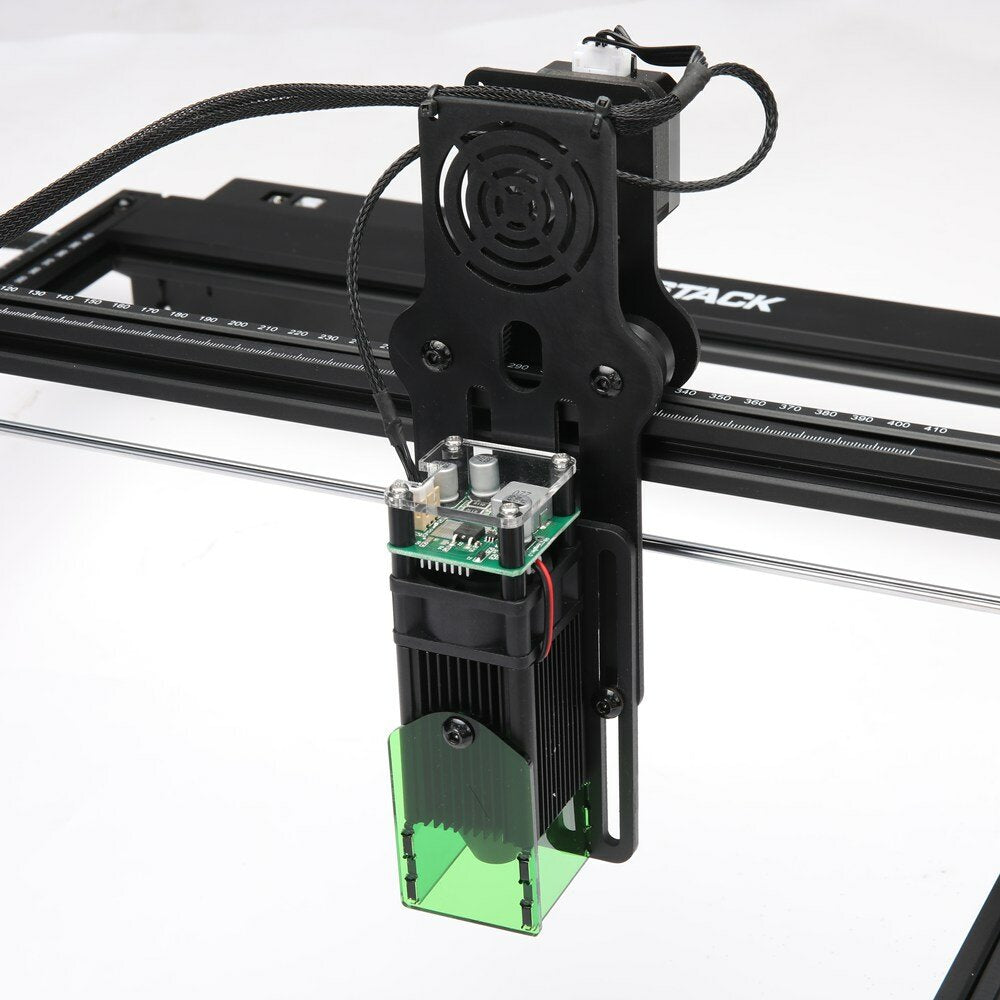

3. Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving; the new laser focal spot is 50% smaller than other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

4. Wide compatibility: The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAcs system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

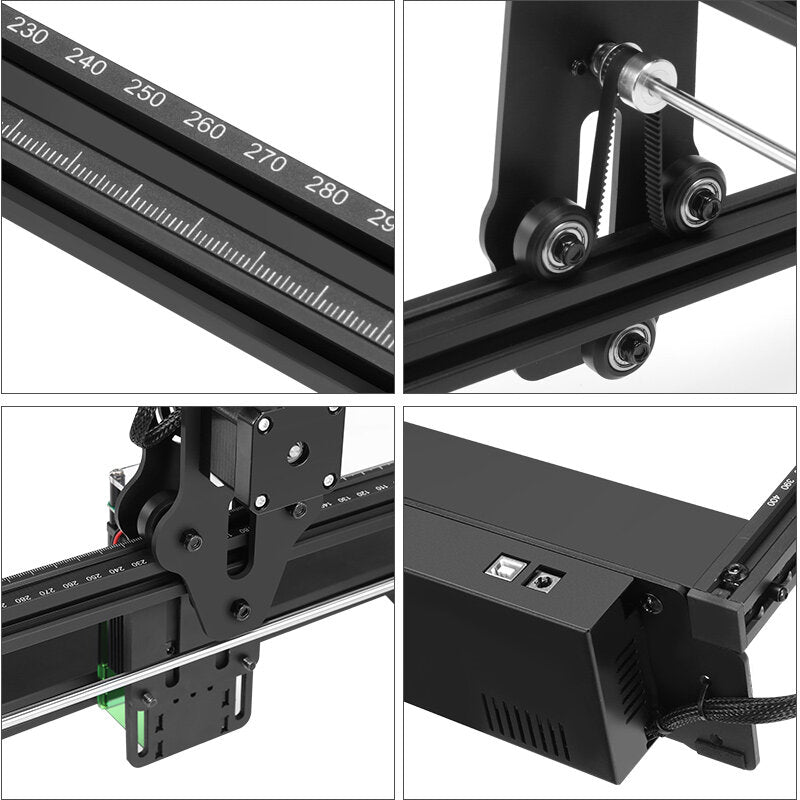

5. Precise scale lines axis: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

Specication:

Product Model  ATOMSTACK A5 20W
Engraving Size 410*400mm
Engraving Materials All wood, bamboo, Paper, Plastic, Leather, PCB Board, Aluminum Oxide, Non-reflective plating and lacquered metal
Cutting Materials Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board
Laser Power 20W
Laser Output Optical Power 4.5~5W
Laser Wave Length 455±5nm
Engraving Accuracy 0.01mm
Focusing Method Fixed focus laser, no need to focus
Laser Protective Cover Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating Software LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
Input Format NC, BMP, JPG, PNG, DXF, etc.
Data Transmission Method USB connection
Input Voltage AC100-240V, 50/60Hz
Output Voltage DC12V, 5A
Equipment Net Weight 4.0kg
Package Weight 5.6kg
Equipment Size 570*600*270mm
Packing Size 618*342*129mm
Certification CE / FCC / RoHS / FDA



Notes:

- When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
- Please do not touch the laser emitter with your hand, or it may burn your hand.
- Please avoid strong impact on the machine.
- Children under 14 are not allowed to use this product and children over 14 need adult supervision.
- The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.

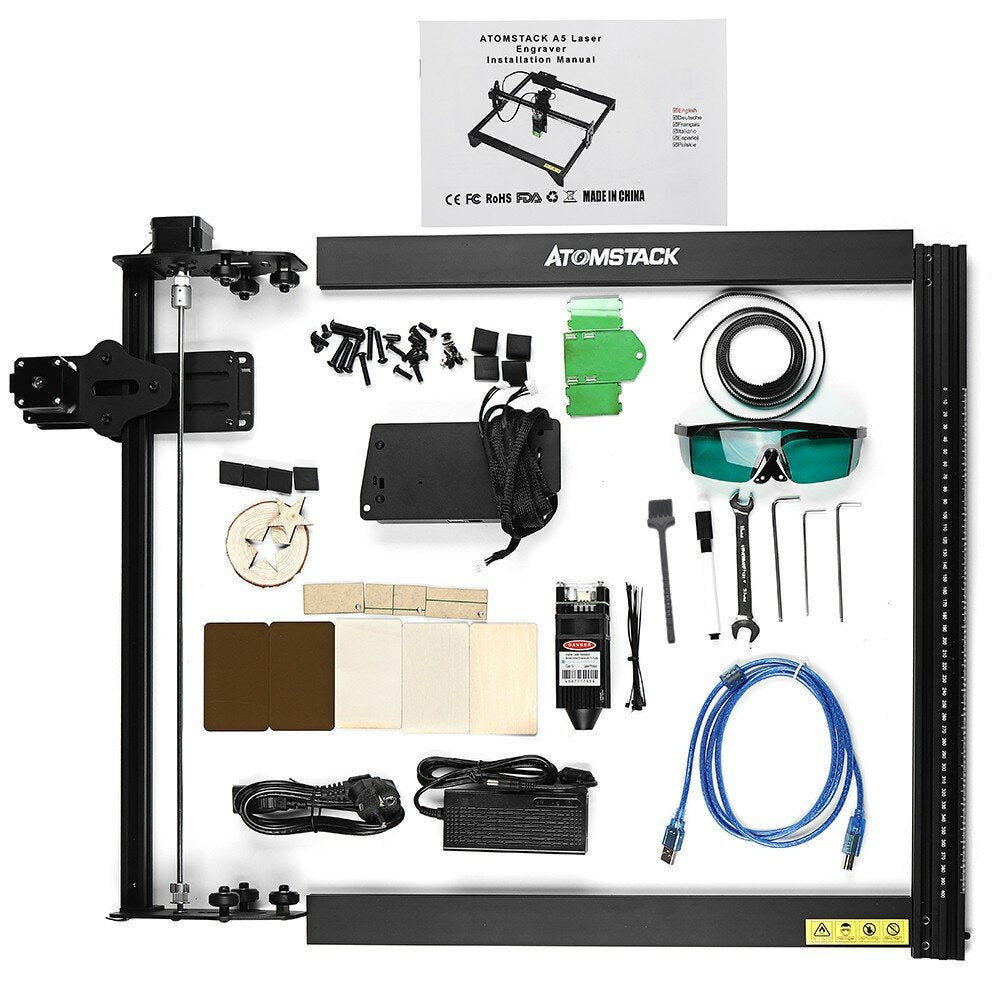

Packing List:

1 * X-axis Assembly
2 * Section 57CM
2 * Section 48CM
1 * Control Box
3 * Support Legs
1 * Goggles
1 * Laser
1 * Power Adapter
1 * Power Cord
1 * USB Cable
1 * Step 1~5 Installation Package
1 * M5 Wrench
10 * Rolled Belt
3 * Small Wood
1 * Focal Length Film
1 * M3 Wrench
1 * Marker
1 * Brush
3 * Small Acrylic

Detailed:

Shipping Info: Usually takes 3-8 business days.

For detailed information on standard delivery and express delivery, choose your shipping country or shipping region from below:

Country or Region Shipping Method Ships From Business Day  Fee
United States FedEx United States 3-7 Free
Austria DHL/UPS Germany Or Czech 3-8 Free
Belgium DHL/UPS Germany Or Czech 3-8 Free
Bulgaria DHL/UPS Germany Or Czech 3-8 Free
Croatia DHL/UPS Germany Or Czech 3-8 Free
Czech Republic DHL/UPS Germany Or Czech 3-8 Free
Denmark DHL/UPS Germany Or Czech 3-8 Free
Estonia DHL/UPS Germany Or Czech 3-8 Free
Finland DHL/UPS Germany Or Czech 3-8 Free
France DHL/UPS Germany Or Czech 3-8 Free
Germany DHL/UPS Germany Or Czech 2-5 Free
Greece DHL/UPS Germany Or Czech 3-8 Free
Hungary DHL/UPS Germany Or Czech 3-8 Free
Ireland DHL/UPS Germany Or Czech 3-8 Free
Italy DHL/UPS Germany Or Czech 3-8 Free
Latvia DHL/UPS Germany Or Czech 3-8 Free
Lithuania DHL/UPS Germany Or Czech 3-8 Free
Luxembourg DHL/UPS Germany Or Czech 3-8 Free
Malta DHL/UPS Germany Or Czech 3-8 Free
Netherlands DHL/UPS Germany Or Czech 3-8 Free
Poland DHL/UPS Germany Or Czech 3-8 Free
Portugal DHL/UPS Germany Or Czech 3-8 Free
Romania DHL/UPS Germany Or Czech 3-8 Free
Slovakia DHL/UPS Germany Or Czech 3-8 Free
Slovenia DHL/UPS Germany Or Czech 3-8 Free
Spain DHL/UPS Germany Or Czech 3-8 Free
Sweden DHL/UPS Germany Or Czech 3-8 Free



The shipping time is a estimated time. Invalid address, customs clearance procedures, the COVID-2019, the bad weather or other reasons will lead to a longer delivery time than expected.

ABOUT TAX

Shipments from all of our warehouses are delivery duty unpaid. Therefore, any and all customs or import duties are charged once the parcel reaches its destination country. If any,these charges must be paid by the customers. Customers take full liability for all return shipment costs, customs charges and handling fees should they refuse to accept a parcel due to import duties or taxes. Please note that according to customs regulations, Madethebest cannot declare purchased items as a gift or list an amount that lower than the actual product price.



User Manual

Download User Guides (A5 / A5 Pro / A5 M40 / A5 M30)

M50 User manual (M50 Laser Module)

Materials Reference

Engraving & Cutting Materials Reference

Installation manual

Download installation manual

FAQ

Download FAQ



** If the computer fails to link with the engraving machine, please refresh the driver.

Driver Download:

LaserGRBL Driver

LightBurn Driver



Software

LaserGRBL(Free)(Windows): Download Page
LightBurn(Paid - 30 Day Free Trial)(Windows/Mac OS/Linux): Download Page

Q: How long does it take to assemble?

A: 5-15 minutes (Depends on your preparation).

Q: Which engraving software is supported?

A: LaserGrbl (Free)(Windows XP, Windows 7, Windows 8, Windows 10)

LightBurn (Paid-30 Day Free Trial)(Mac OS, Linux, Windows XP, Windows 7, Windows 8, Windows 10)

Q: What materials can be engraved?

A: Wood, plastic (opaque), cloth, leather, and other materials that can be burned by laser.

Q: Can I engrave metal and stainless steel?

A: You can mark the metal after plating or spraying (acting on the coating or oxide layer), stainless steel (the effect is better after the stainless steel is painted black. Note: It is not engraving, but discoloration).

Q: How many hours can A5 or A5 Pro work continuously?

A: 24 hours (In a well-ventilated environment).

Q: Can the laser module be replaced?

A: Yes, but the Laser Module input voltage needs to support 24V.

Q: How long is the warranty period?

A: One year warranty (We will send you the corresponding non-artificially damaged parts for free).

Q: Is it possible to engrave cylindrical surfaces?

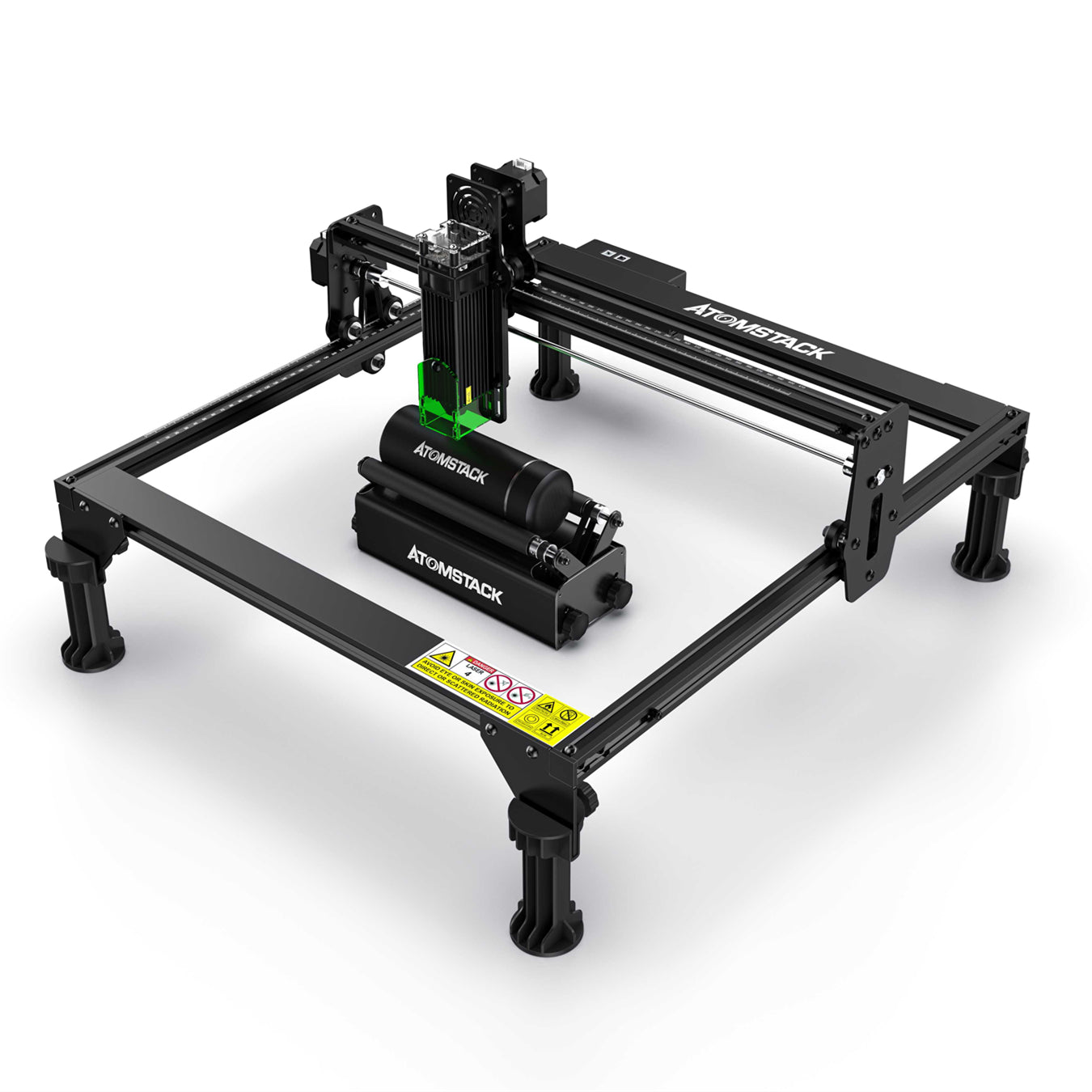

A: Need to purchase Atomstack R3 Rotary Roller as an accessory to sculpt the cylindrical surface.
