The WORLD'S FIRST 6-core Diode 33W Laser Output Engraving and Cutting Machine
Main Features:

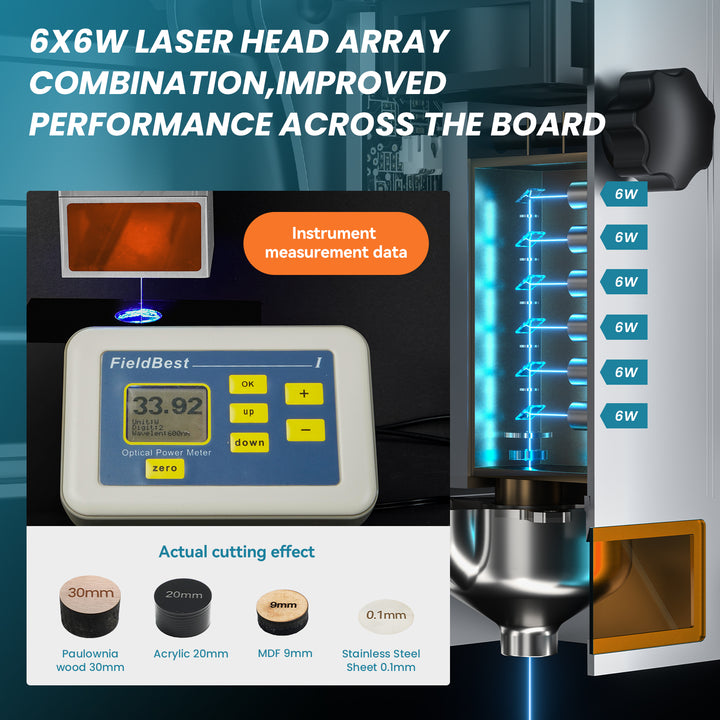

1. Ultra-high Power: the World's First 33W Laser power output laser engraving machine. The latest 6*6W laser coupling technology, can cut 20mm wood board, 10mm black acrylic board at one pass, and even can cut 0.1mm stainless steel sheet. High density laser multiple times work can easily cut 25mm thick wood board, 30mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, opaque glass and other materials.
2. High efficiency: Compared with 10W laser engraving machine, X30 Pro has 200% higher cutting speed and 150% higher cutting depth. Compared with 20W laser engraving machine, X30 Pro has 50% higher cutting speed and 25% higher cutting depth.
3. Equipped with F30 Pro upgraded air-assist kit: the cutting capacity is greatly improved while the cutting accuracy and cutting quality can also be optimized to a great extent.
4. Newly upgraded Atomstack self-research 32-bit motherboard: built-in 256-bit color scale map, so that the engraving works more fine, higher contrast, so that your engraving is not just black.
5. New upgrade of laser module: bored with the fixed focus piece? Think the air assist is not beautiful enough? Now, the new X30 Pro laser module has a built-in tool-free focus module and a built-in air-assist system, without the interference of wires, simple and beautiful.
6. Atomstack APP: It is now online in Android store and Apple store (you can also scan the manual QR code to download), bringing a new control experience.
7. Panoramic filtered glass eye protection: It plays a good protective role, filtering 97% of UV light. You and others do not need to wear goggles to watch the laser engraving process.
8. Sturdy and easy to install: The full aluminum alloy anodized structure design makes the machine more solid and will improve the accuracy of engraving at the same time. The whole structure is designed for quick installation and can be installed within 20 minutes.
9. Upgraded version of high-performance fixed-focus laser module: you can carve without focal adjustment; new laser focus spot area is only 1/3 of the spot area of other ordinary lasers, can simultaneously take into account the precision carving and high energy cutting work. At the same time, the laser power of fixed-focus laser is more stable than the laser power of zoom laser.
10. Wide compatibility: compatible engraving software, such as LaserGRBL, LightBurn. support Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11, MAC. Engraving file format support NC, BMP, JPG, PNG, DXF, etc.
11. Precision scale line axis: X-axis and Y-axis contain precision scale line, which is convenient for you to make quick length measurement. 400x400mm large area engraving area can meet your various engraving needs.
12. Upgraded compressed spot coupling technology: ultra-fine laser focus area reduced to 0.08*0.1mm.
13. Integrated screw: The machine uses an integral screw instead of a combined coupling, the stepper motor and the screw are integral which makes the movement of the laser more accurate and the coupling more durable.
14. New laser with knob: adjusting the height of the laser is more convenient and fast.
15. Off-line work: ATOMSTACK X30 Pro is equipped with a terminal control panel to support off-line engraving, so you can do engraving work anytime and anywhere without the restriction of computer.
16. Laser sintering temperature up to 3000℃

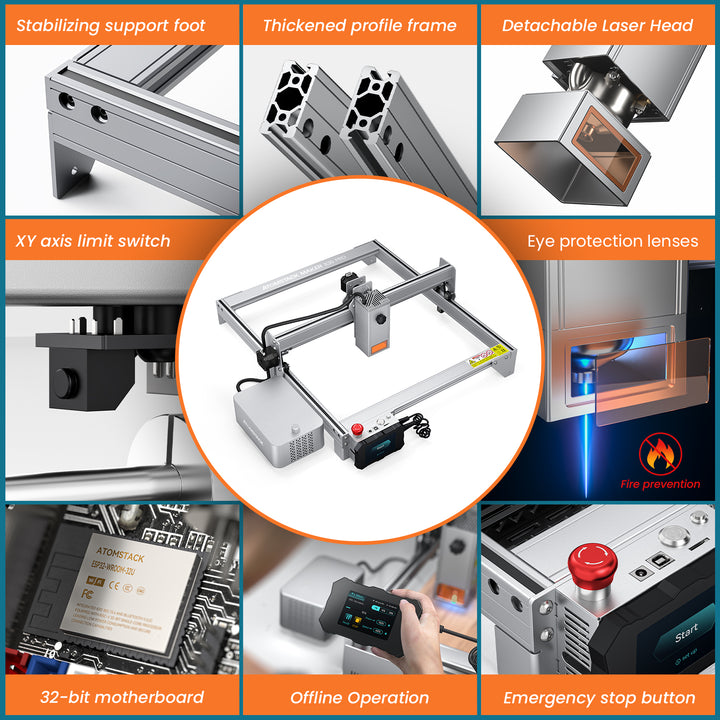

17. Emergency stop button: If there is an accident, stop the machine at any time, so that the machine is safer.
18. Limiter: Yes
19. Reset switch: Yes
20. Expandable Working Area: modular design of the body mechanism, just replace the frame components, you can get 400 * 850mm large working area.
Video:
Specification:
Brand: ATOMSTACK
Model: X30 PRO
Machine Power: 160W
Electric Power: 120W
Laser Power: 33-36W
Laser Wavelength: 455±5nm
Engraving Precision: 0.01mm
Working Area: 410*400mm
Focusing Method: Fixed focus laser, no focusing
Operating Software: LaserGRBL, LightBurn
Operating System: Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 / Mac
File Format: NC, BMP, JPG, PNG, DXF
Data Transmission: USB connection, TF card
Power Input: 100-240V AC, 50/60HZ
Power Output: 24V 5A
Certification: CE FCC RoHS FDA PSE
Engravable Materials: wood, bamboo, cardboard, plastic, leather, PCB plates, aluminum oxide, non-reflective plated and lacquered layers of metal, 304 mirror stainless steel, glass, ceramics, cotton, slate.
Cuttable Materials: cardboard, non-woven fabric, wood panels, acrylic, certain thin plastic sheets, sponges.
More Details:
Packing List:
1* Installation screws
1* Kit
4* Foot pad foam
1* Focusing sheet
3* Acrylic sheet
3* Wooden sheet
10* Wire ties
1* Desiccant
1* Brush
1* Dustless cloth
1* Card reader
1* TF card
1* Power adapter
1* Manual
1* Data cable
1* Touch screen assembly
1* HDMI cable
1* Laser module
1* X-axis assembly
1* Y-axis left profile
1* Y-axis right profile
1* Base upper profile
1* Bottom profile
3* Foot bracket
