Note: The refurbished products are covered by 1 year warranty, customers should bear the postage if return without quality issue.
Ships from U.S. warehouses to U.S. addresses only.
1. New eye protection design: The laser protective cover perfectly protect your eyes,filter UV light for 97%. You and the people around can watch laser engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.

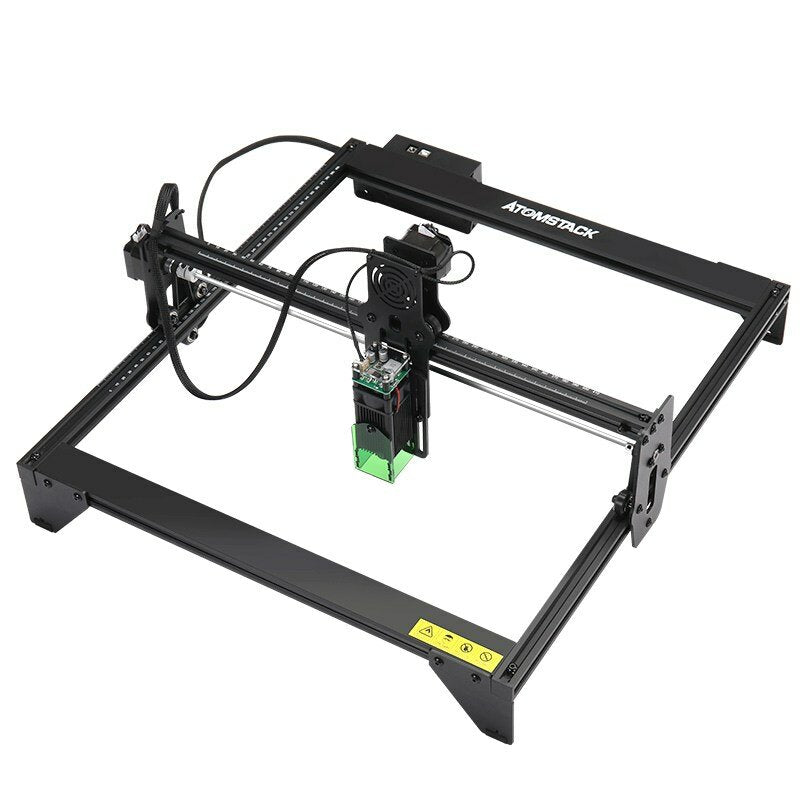

2. Solid and easy installation structure design: The full-metal structure design makes the machine more solid, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

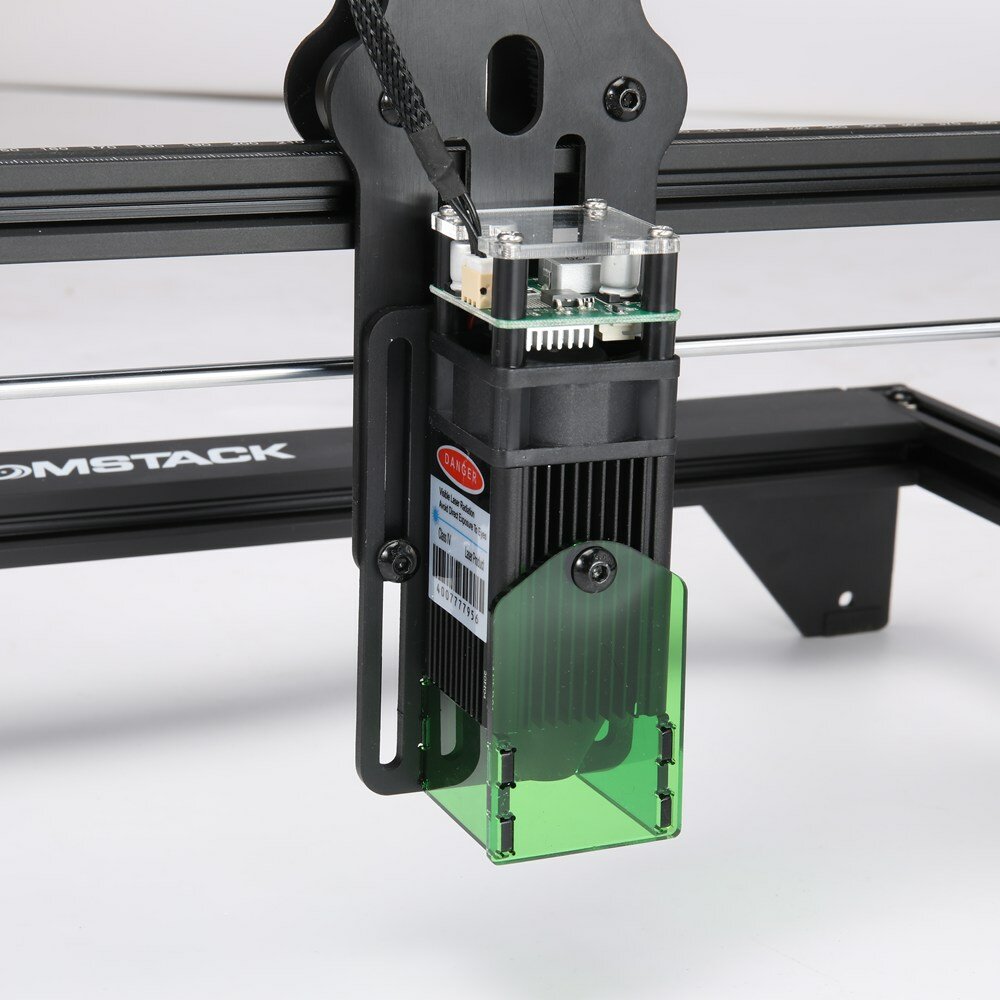

3. Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving; the new laser focal spot is 50% smaller than other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
4. Wide compatibility: The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAcs system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

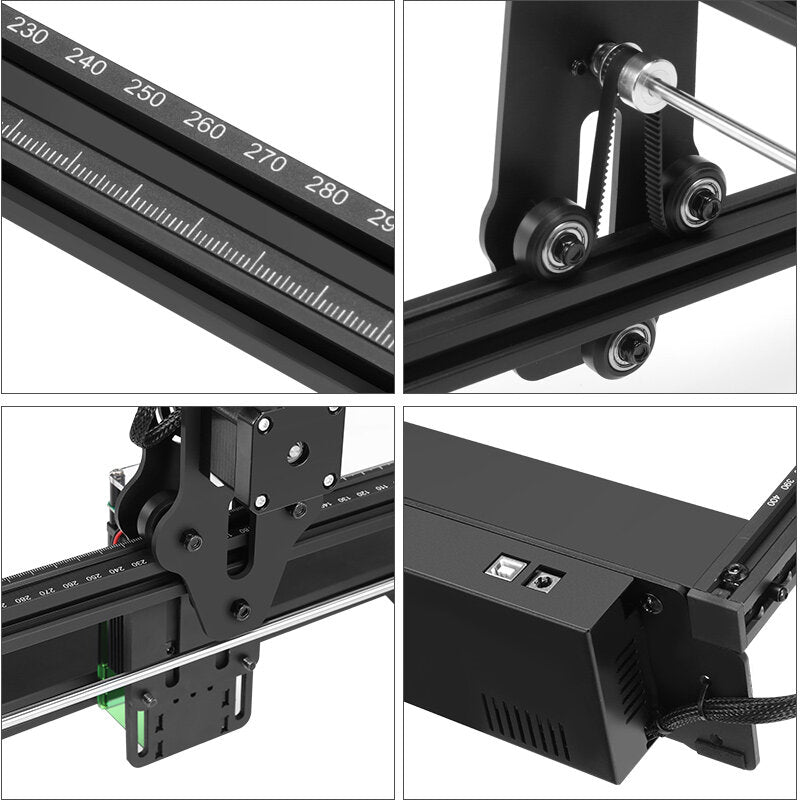

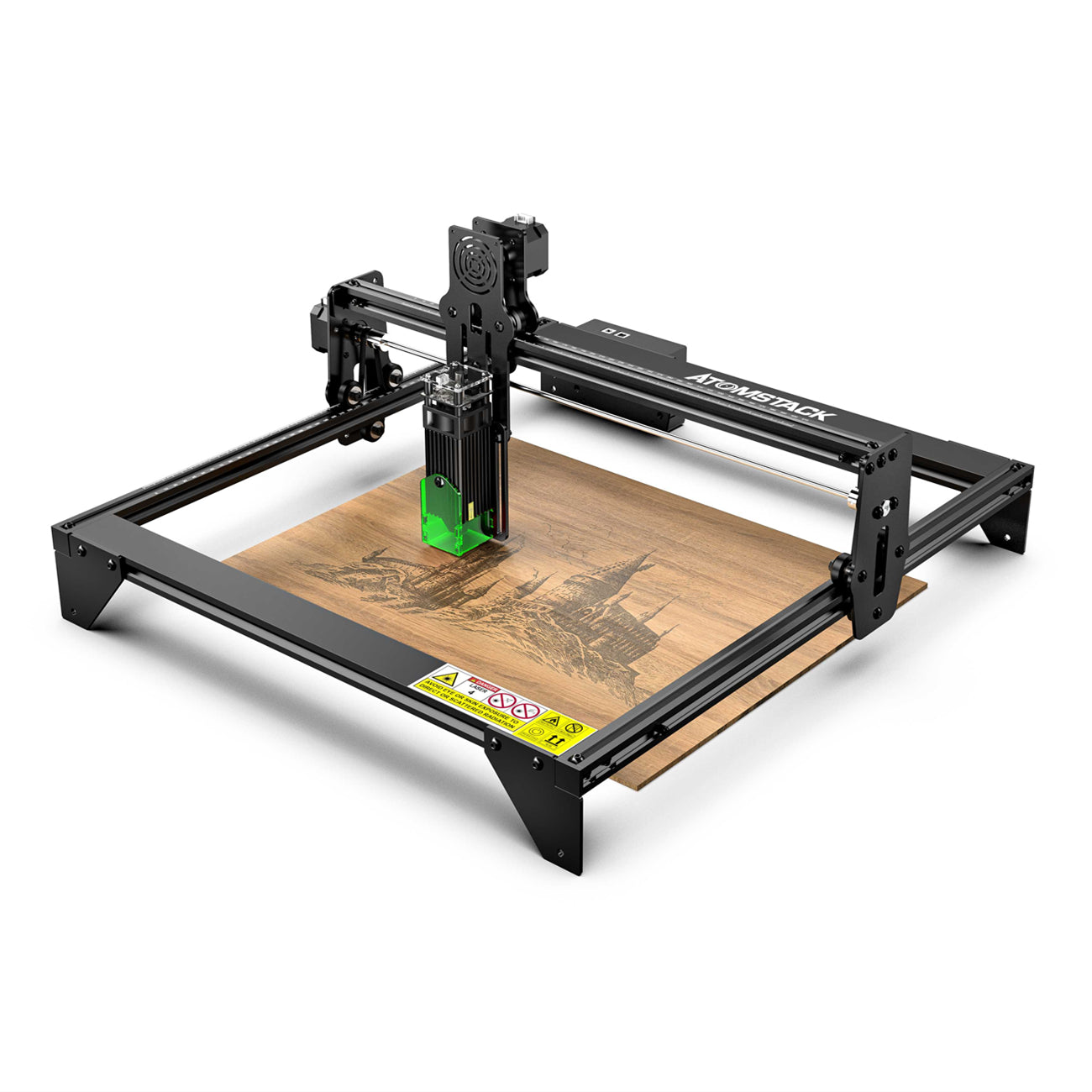

5. Precise scale lines axis: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.
|Product Model||ATOMSTACK A5 20W|
|Engraving Materials||All wood, bamboo, Paper, Plastic, Leather, PCB Board, Aluminum Oxide, Non-reflective plating and lacquered metal|
|Cutting Materials||Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board|
|Laser Output Optical Power||4.5~5W|
|Laser Wave Length||455±5nm|
|Focusing Method||Fixed focus laser, no need to focus|

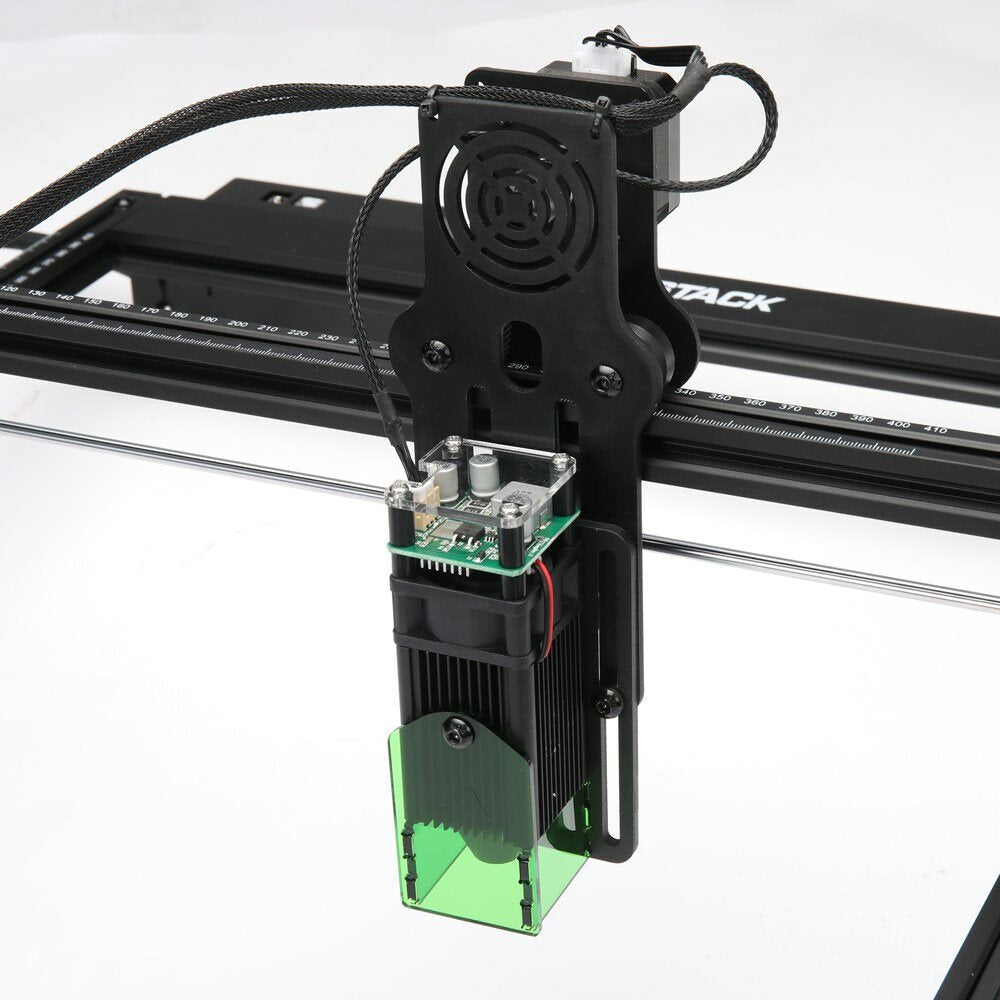

|Laser Protective Cover||Protect the user's eyes and prevent pets from grabbing the laser spot.|
|Operating Software||LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.|
|Input Format||NC, BMP, JPG, PNG, DXF, etc.|
|Data Transmission Method||USB connection|
|Input Voltage||AC100-240V, 50/60Hz|
|Output Voltage||DC12V, 5A|
|Equipment Net Weight||4.0kg|
|Certification||CE / FCC / RoHS / FDA|
- When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
- Please do not touch the laser emitter with your hand, or it may burn your hand.
- Please avoid strong impact on the machine.
- Children under 14 are not allowed to use this product and children over 14 need adult supervision.
- The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.

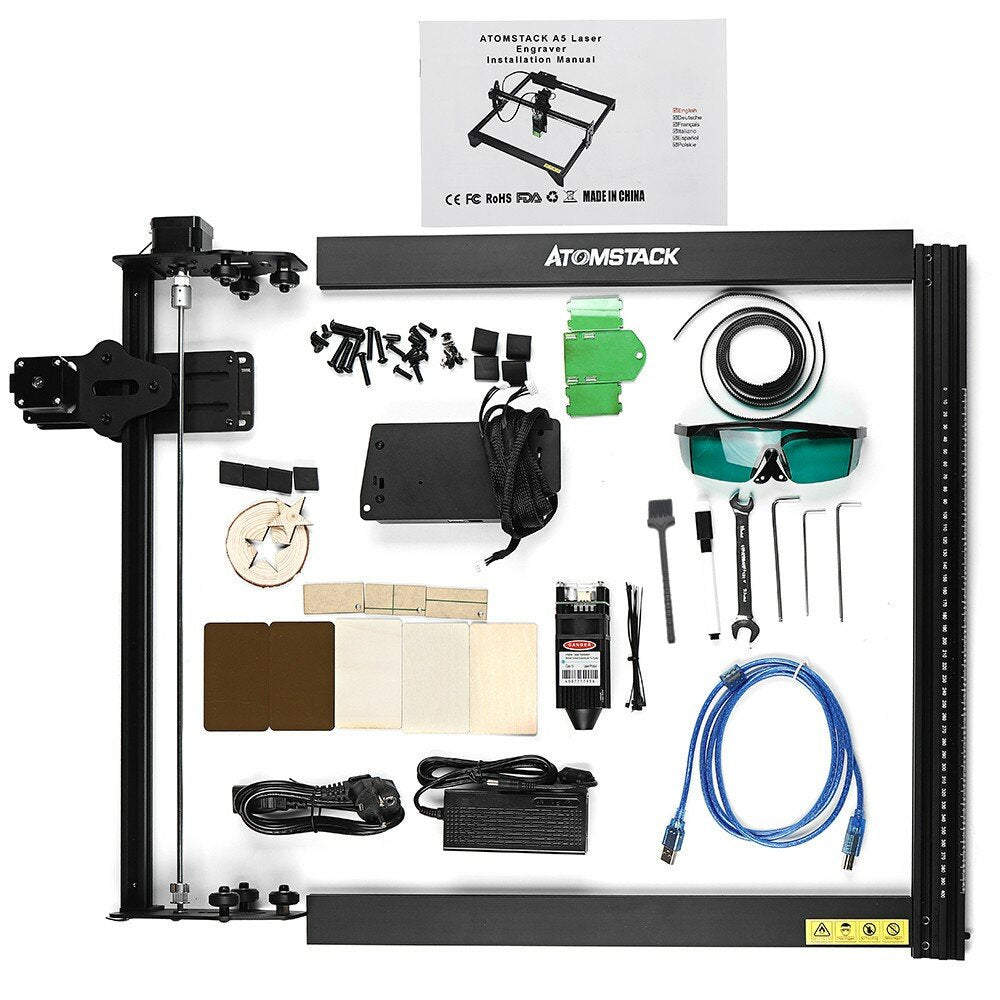

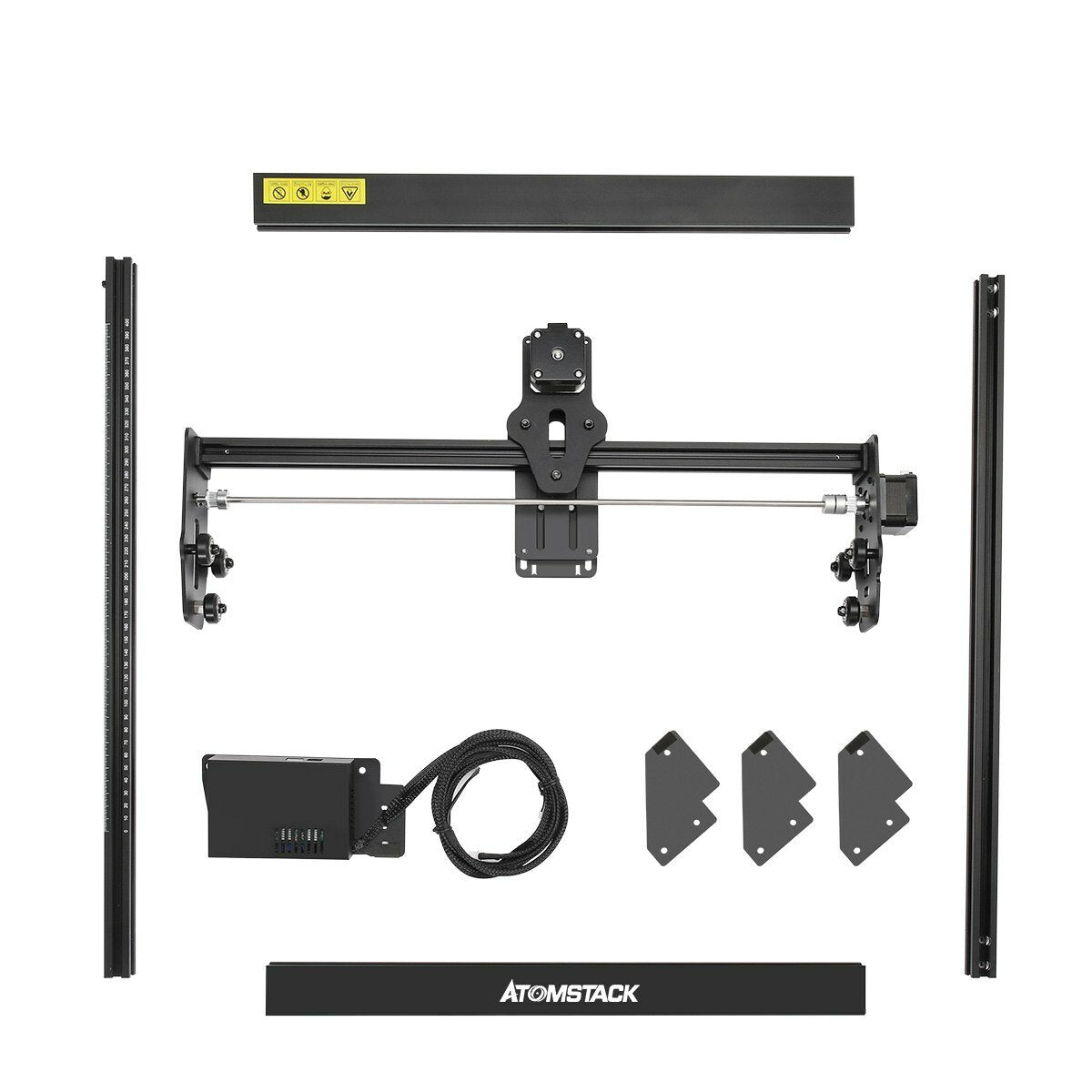

1 * X-axis Assembly
2 * Section 57CM
2 * Section 48CM
1 * Control Box
3 * Support Legs
1 * Goggles
1 * Laser
1 * Power Adapter
1 * Power Cord
1 * USB Cable
1 * Step 1~5 Installation Package
1 * M5 Wrench
10 * Rolled Belt
3 * Small Wood
1 * Focal Length Film
1 * M3 Wrench
1 * Marker
1 * Brush
3 * Small Acrylic
