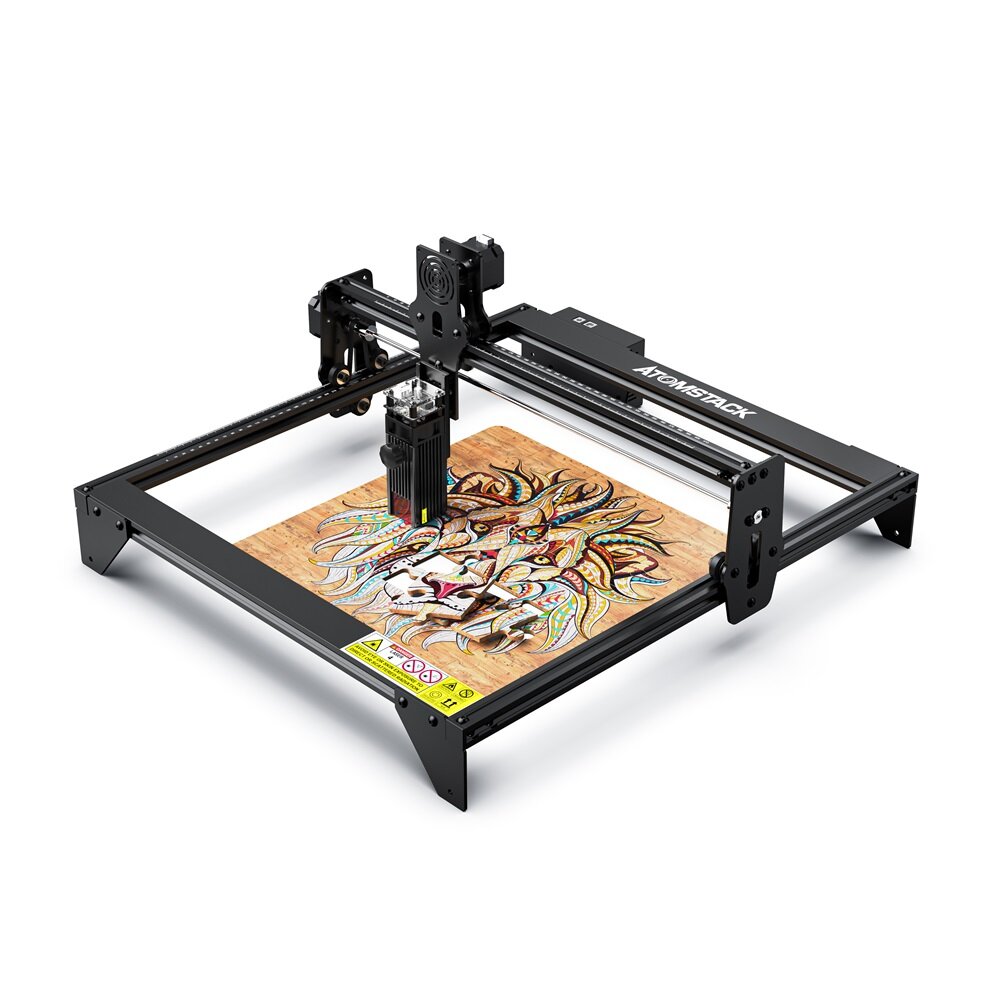

ATOMSTACK A5 M40 40W Laser Engraving Machine

$329.99

Cyber Monday $10 USD Off Coupon:  ALL5OFF

One Year Global Warranty

Notify: All orders for purchasing bundles will be shipped by different packages. There will be multiple tracking numbers. All of them may not reach you at the same time.

Plug Type: US Plug

  • US Plug
  • EU Plug
Out of stock
SKU: A5M40-USN/AAvailability : In StockIn StockOut of stock

Features:

1. New eye protection design: The laser protective cover perfectly protect your eyes,filter UV light for 97%. You and the people around can watch laser engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.

2. Solid and easy installation structure design: The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

3. Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving;The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
4.Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support IOS system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

5. Precise scale lines axis: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

6. Ultra-fine compression laser: The laser power is 5~5.5W, and the ultra-fine laser focus area is reduced to 0.16*0.19mm. The high-density laser can easily cut 6mm thick wood and black acrylic; it can directly engrave smooth stainless steel metal and ceramics.

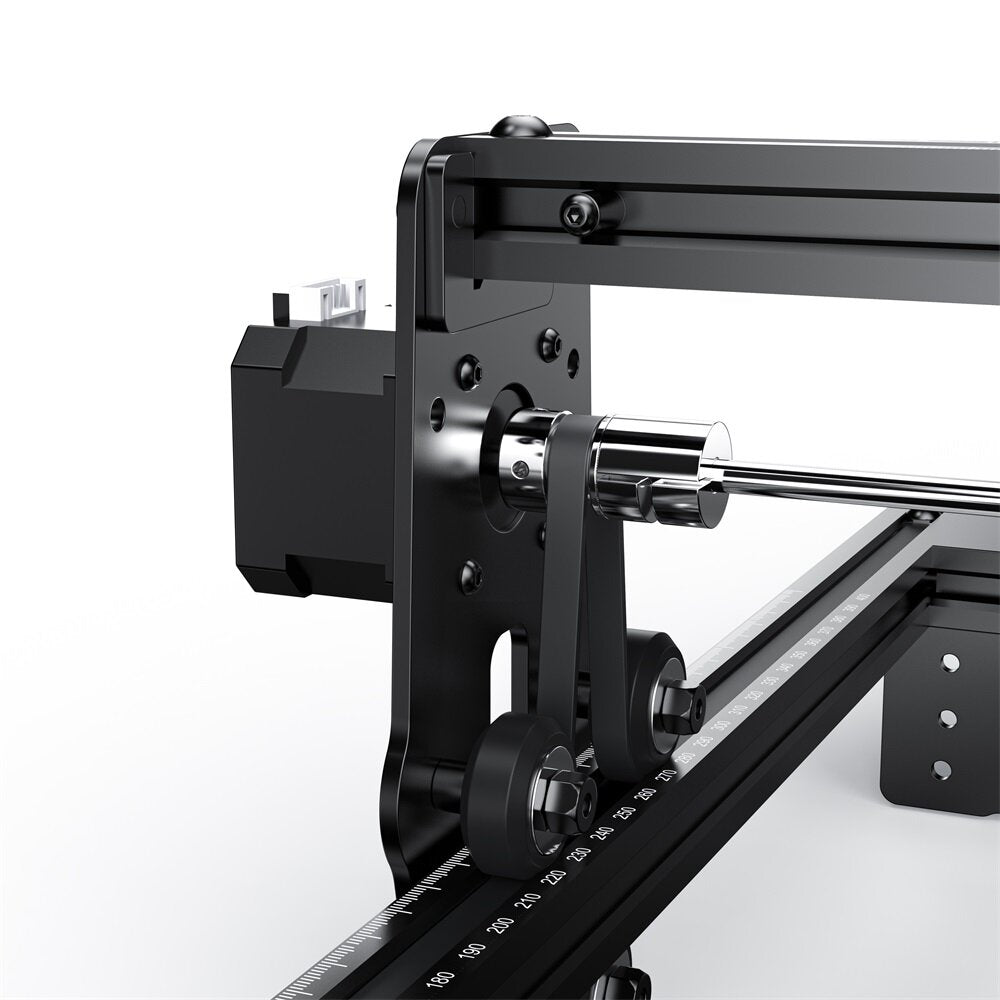

7. Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

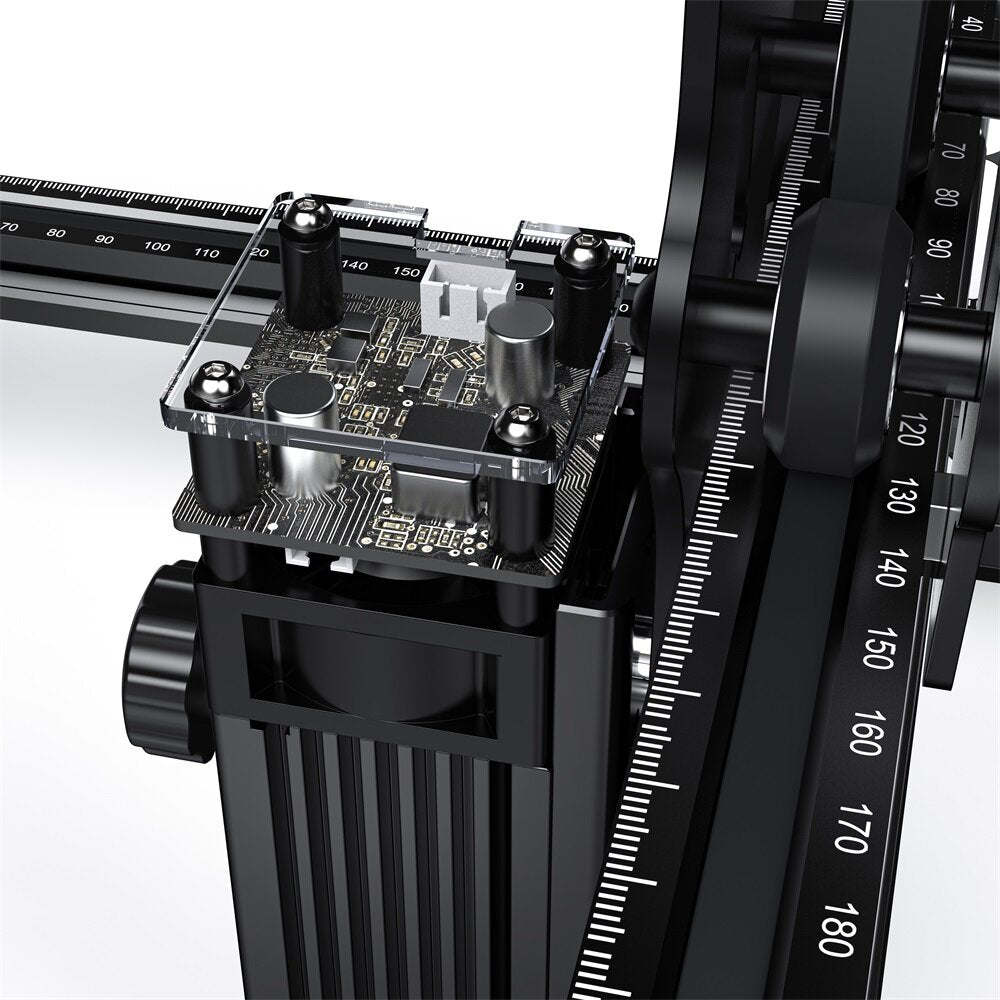

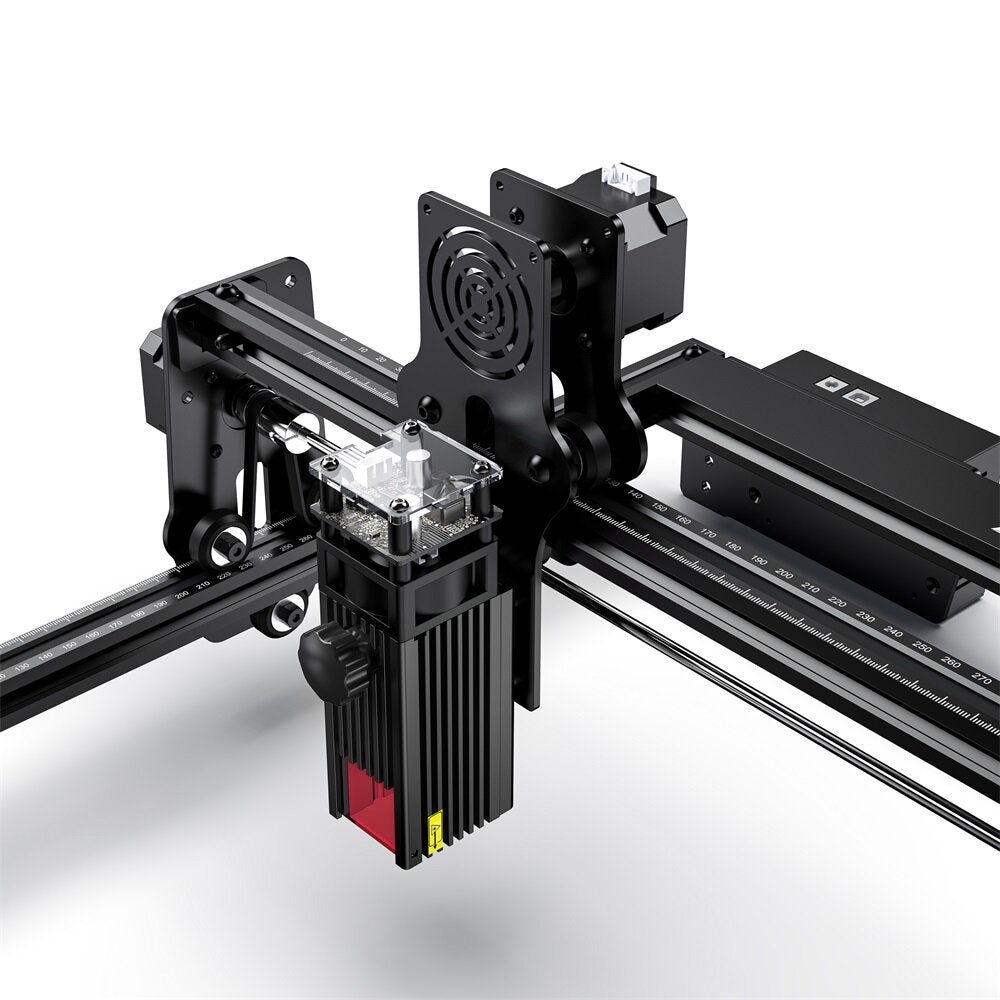

8. New laser with knob: It is more convenient and quick to adjust the height of the laser.

The difference between Atomstack A5 M40 and A5 Pro:

A5 M40 A5 Pro
Electric Power 40W 40W
Optical Power 5-5.5W 5-5.5W
Laser Wavelength 455±5nm 455±5nm
Laser Spot Compressed spot 0.08mm Compressed spot 0.08mm
Full-metal Structure Yes Yes
Height Adjustment Manual knob Hex wrench
Switch Cable Line Yes No
Engraving Objects Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, blackened utility knife, 304 mirror stainless steel, matte stainless steel, ceramic, acrylic. Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, blackened utility knife, 304 mirror stainless steel, matte stainless steel, ceramic, acrylic.
Cutting Objects Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board. Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.
Cutting Ability Strong Strong



Video:

Product Parameters:

Item model number ATOMSTACK A5 M40
Print Size  410*400 mm
Carving Objects All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, Utility knife after blacking
Cutting Objects Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.
Laser power 40W
Laser output power 5-5.5W
Wave Length 445 ± 5nm
Engraving accuracy 0.01mm
Focusing method Fixed focus laser, no need to focus
Laser protective cover Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating software LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
Input Format NC, BMP, JPG, PNG, DXF, etc.
Data transmission method USB connection.
Input Voltage AC100-240V, 50/60Hz
Output Voltage DC12V, 5A
Equipment net weight 3.426kg
Package weight 5.072kg
Equipment size 570*600*270mm
Packing size 620*345*130mm
Certification CE FCC RoHS FDA



Note:

- When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
- Please do not touch the laser emitter with your hand, or it may burn your hand.
- Please avoid strong impact on the machine.
- Children under 14 are not allowed to use this product and children over 14 need adult supervision.
- The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.

A5 LASER ENGRAVER PACKAGE:

1* X-axis assembly
2* Section 57CM
2* Section 48CM

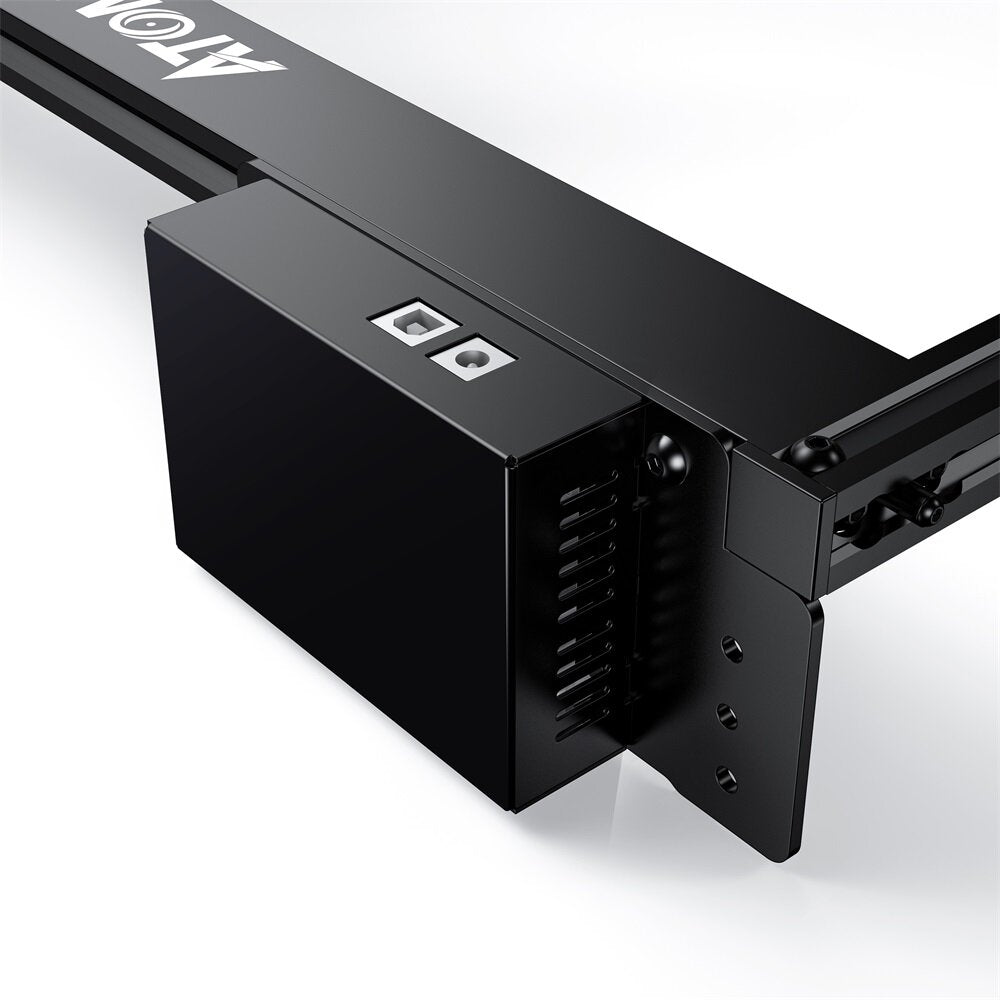

1* Control box
3* Support legs
1* Goggles
1* Laser
1* 24V2A power adapter
1* Power switch line
1* USB cable

Step 1~5 installation package

1* M5 wrench
10* Rolled belt
3* Small wood
1* Focal length film
1* M3 wrench
1* Marker
1* Brush
3* Small acrylic
1* Stainless steel backing plate for cutting

Details:

Shipping Info: Usually takes 3-15 business days.

For detailed information on standard delivery and express delivery, choose your shipping country or shipping region from below:

Country or Region Shipping Method Ships From Shipping Time Shipping Fee
United States FedEx/USPS United States 3-7 Free

EU Countries

DHL/UPS Germany Or Czech 3-8 Free

Asian Countries

4PX/FedEx China 6-10 $19
United Kingdom, Canada, Mexico, Israel, Australia, Turkey, Serbia 4PX/FedEx China 6-15 $49

EU Countries:  Austria, Belgium, Bulgaria, Cyprus, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden

Asian Countries: Singapore, Malaysia, Japan, Thailand, Korea, Philippines, Vietnam, Indonesia

The shipping time is a estimated time. Invalid address, customs clearance procedures, the COVID-2019, the bad weather or other reasons will lead to a longer delivery time than expected.

ABOUT TAX

Shipments from all of our warehouses are delivery duty unpaid. Therefore, any and all customs or import duties are charged once the parcel reaches its destination country. If any, these charges must be paid by the customers. Customers take full liability for all return shipment costs, customs charges and handling fees should they refuse to accept a parcel due to import duties or taxes. Please note that according to customs regulations, Madethebest cannot declare purchased items as a gift or list an amount that lower than the actual product price.

Software

LaserGRBL (Free) (Windows): Download Page
LightBurn (Paid - 30 Day Free Trial) (Windows/Mac OS/Linux): Download Page



User Manual

Download User Manual (X7 Pro)

Download User Guides (A5 / A5 Pro / A5 M40 / A5 M30)

M50 User manual (M50 Laser Module)

Materials Reference

Engraving & Cutting Materials Reference

Installation manual

Download installation manual

FAQ

Download FAQ



** If the computer fails to link with the engraving machine, please refresh the driver.

Driver Download:

LaserGRBL Driver

LightBurn Driver

Q: How long does it take to assemble?

A: 5-15 minutes (Depends on your preparation).

Q: Which engraving software is supported?

A: LaserGrbl (Free)(Windows XP, Windows 7, Windows 8, Windows 10)

LightBurn (Paid-30 Day Free Trial)(Mac OS, Linux, Windows XP, Windows 7, Windows 8, Windows 10)

Q: What materials can be engraved?

A: Wood, plastic (opaque), cloth, leather, and other materials that can be burned by laser.

Q: Can I engrave metal and stainless steel?

A: You can mark the metal after plating or spraying (acting on the coating or oxide layer), stainless steel (the effect is better after the stainless steel is painted black. Note: It is not engraving, but discoloration).

Q: How many hours can A5 or A5 Pro work continuously?

A: 24 hours (In a well-ventilated environment).

Q: Can the laser module be replaced?

A: Yes, but the Laser Module input voltage needs to support 24V.

Q: How long is the warranty period?

A: One year warranty (We will send you the corresponding non-artificially damaged parts for free).

Q: Is it possible to engrave cylindrical surfaces?

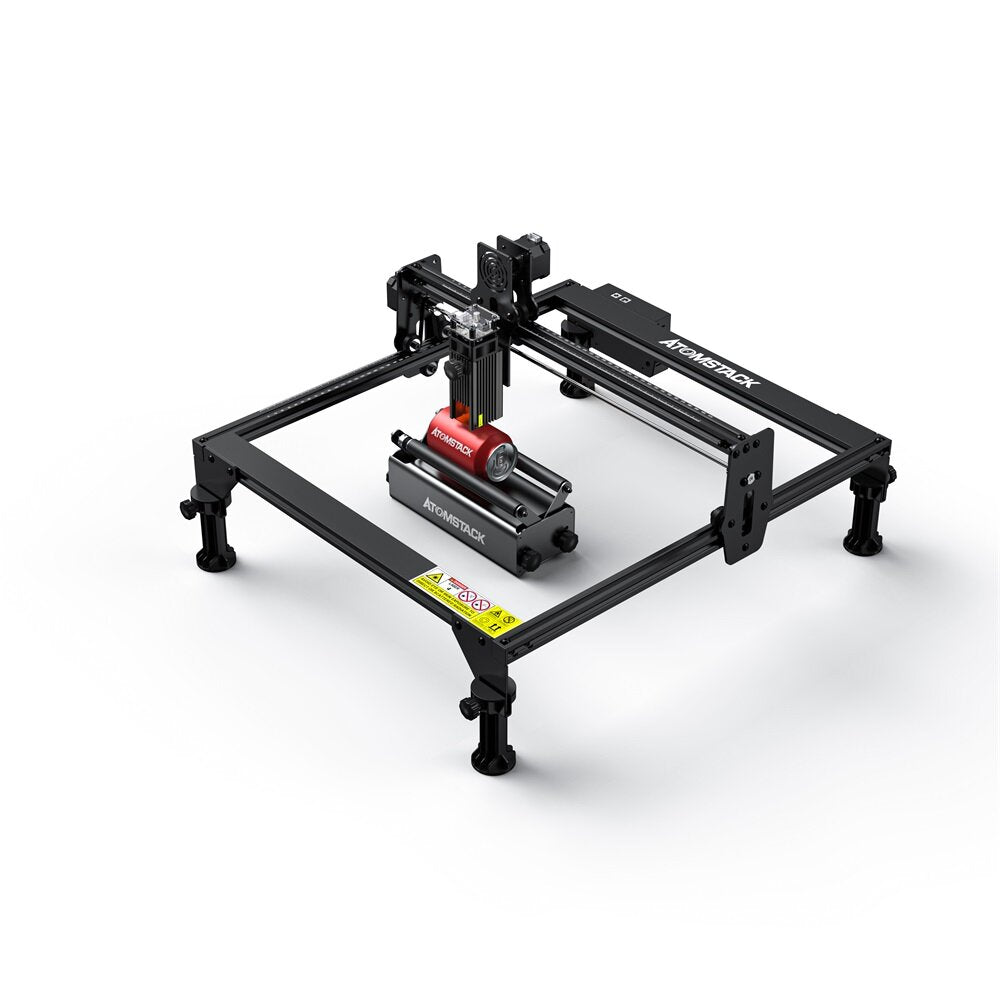

A: Need to purchase Atomstack R3 Rotary Roller as an accessory to sculpt the cylindrical surface.
