Purchase Instructions:

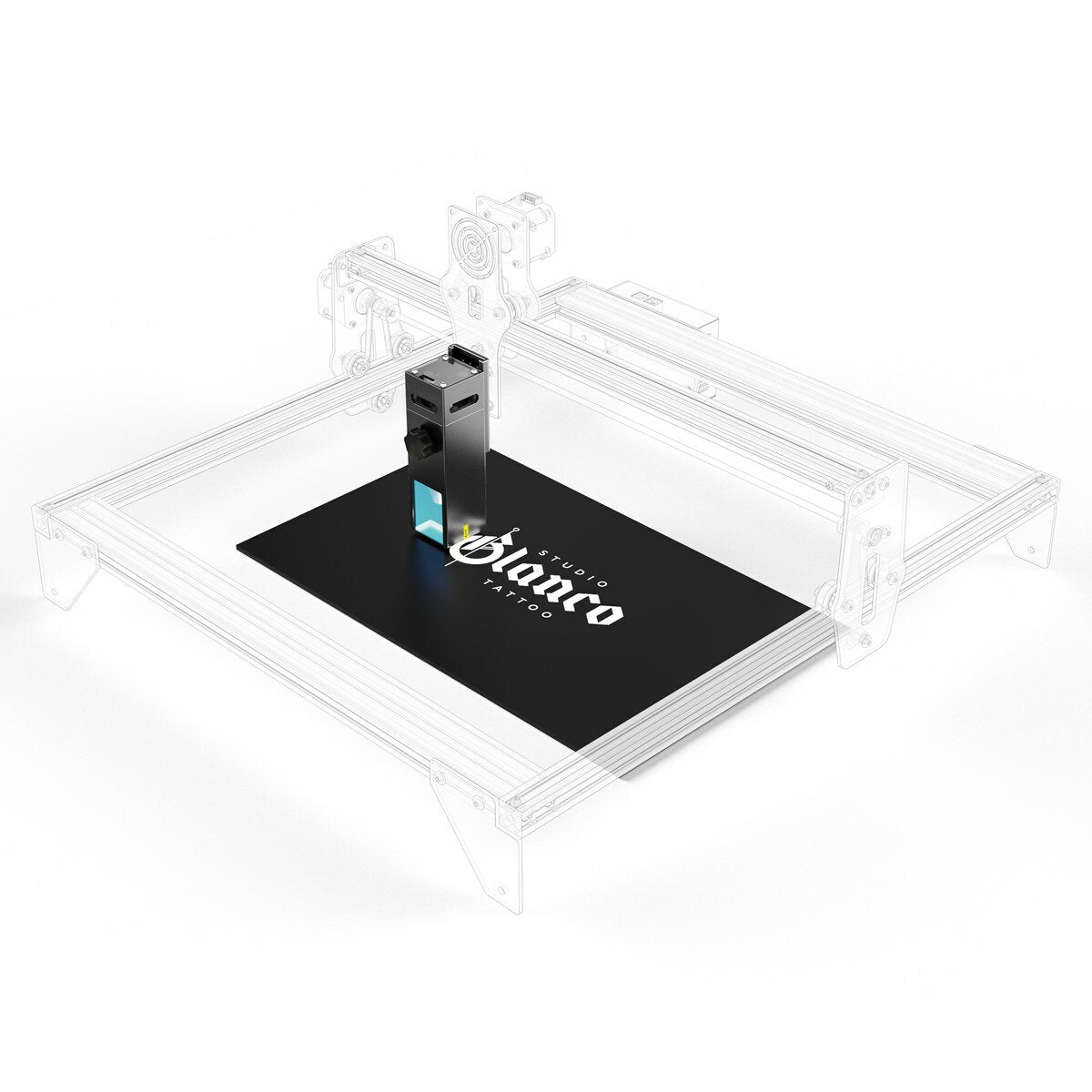

1. The M50 laser module can be installed on any engraver model of the Atomstack A5 series and can be used without any additional setup.
2. If you own other brands of engravers such as Ortur, NEJE, Two-Trees, etc., you can also install our Atomstack M50 laser module, which comes with a free adapter in the box.
Higher laser power, faster engraving speed! NEW ATOMSTACK M50 50W double ultra-fine compressed spot Laser Module: can be used for laser cutting machine, laser engraving machine, CNC, DIY laser. Upgraded high quality fixed-focus laser, no need to focus. Engraving speed is 200% higher than other 5W lasers.
Video:
M50 cuts 15mm hard wood and 20mm soft wood
Features:
1. It can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.
2. Laser protective cover: The laser is equipped with a protective cover to protect the eyes of the user without the need to wear additional protective glasses. At the same time prevent pets from grabbing the laser spot.
3. Made of aluminum, strong and durable.
4. Upgraded high quality fixed-focus laser, no need to focus.
5. Aviation aluminum TTL driver board with cooling fan can ensure continuous long time work.
6. Engravable materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and lacquered metal, after blackening Utility knife.
7. Cutable material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board.
8. 0.08*0.08mm double compression spot light coupling technology makes engraving more powerful and precise.
9. Engraving speed is 200% higher than other 5W lasers.
10. High energy can cut 10mm thickness plates at one time.
11. The laser sintering temperature is 1100 degrees, the effect of engraving metal is better.
12. The laser has a built-in horizontal gyroscope anti-tip protection device, and it stops working when the tilt angle is 20°.
13. The wind-collecting hood can clean the smoke and dust to protect the lens to avoid laser energy attenuation.
14. The transfer circuit board is compatible with 95% of laser engraving machines on the market, Including Atomstack, Ortur, Neje, twotrees, etc.
Specification:
| Brand | Atomstack |
| Product Material | Aluminum 6061 anode |
| Housing size | 44*52*50 mm |
| Circuit Board Size | 44*52 mm |
| Circuit Board | 12V/PWM modulation board |
| Wire Rod | 22# 2P2.54 terminal reverse wire 80mm |
| Optical Lens | φ6/glass |
| Fan | 12V |
| Laser Beam Mode | Spot |
| Working Mode | Pulse work |
| Lightspot Size | 0.08*0.08mm |
| Working Time | 10000H |
| Working Temperature | 0℃~70℃ |
| Storage Temperature | -40℃~85℃ |
| Sintering temperature | 1000~1200℃ |
| Items | Symbol | Min | Typ | Max | Unit | Condition |
| Optical Output Power | Po | 9.5 | 10 | W | 12V Power | |
| Working current | Iop | / | 2.9 | 3.2 | A | |
| Operating Voltage | Vop | / | 12 | / | V | |
| Laser Wavelength | λp | 455 | 460 | nm | ||
| Electric Power | Wl | / | 34.8 | 38.4 | W |
CAUTIONS:
1. The laser light emitted by the laser module is likely to injure persons'eye, so do not directly gaze its end surface and wear appropriate safety glasses to prevent laser light when it is working.
2. Laser module needs an appropriate laser driver(PCB). When the laser module connects with power supply, please set the output voltage to zero. The adjustment of the current should be slowly increased or decrease to avoid damaging the device.
3. Keep the device working or storing in a dry environment. The anti-dust grade is over one million, in order to prevent dust inside the lens to affect the laser dot shape.
4. Working at high temperatures will increase the threshold current, reduce conversion
efficiency and speed up the aging of the device.
5. When output power is higher than it's specific parameter of operation, it will accelerate the aging of the device.
6. When the operation temperature of the laser diode is over 70degree, please do well heat dissipation of it.
7. This laser module is an electrostatic sensitive device. Please make sure ground yourself or wear an antistatic wrist strap before you take it.
Package Included:
1 x M50 Laser Module
