ATOMSTACK X40 Pro 210W Professional Grade Laser Engraving and Cutting Machine

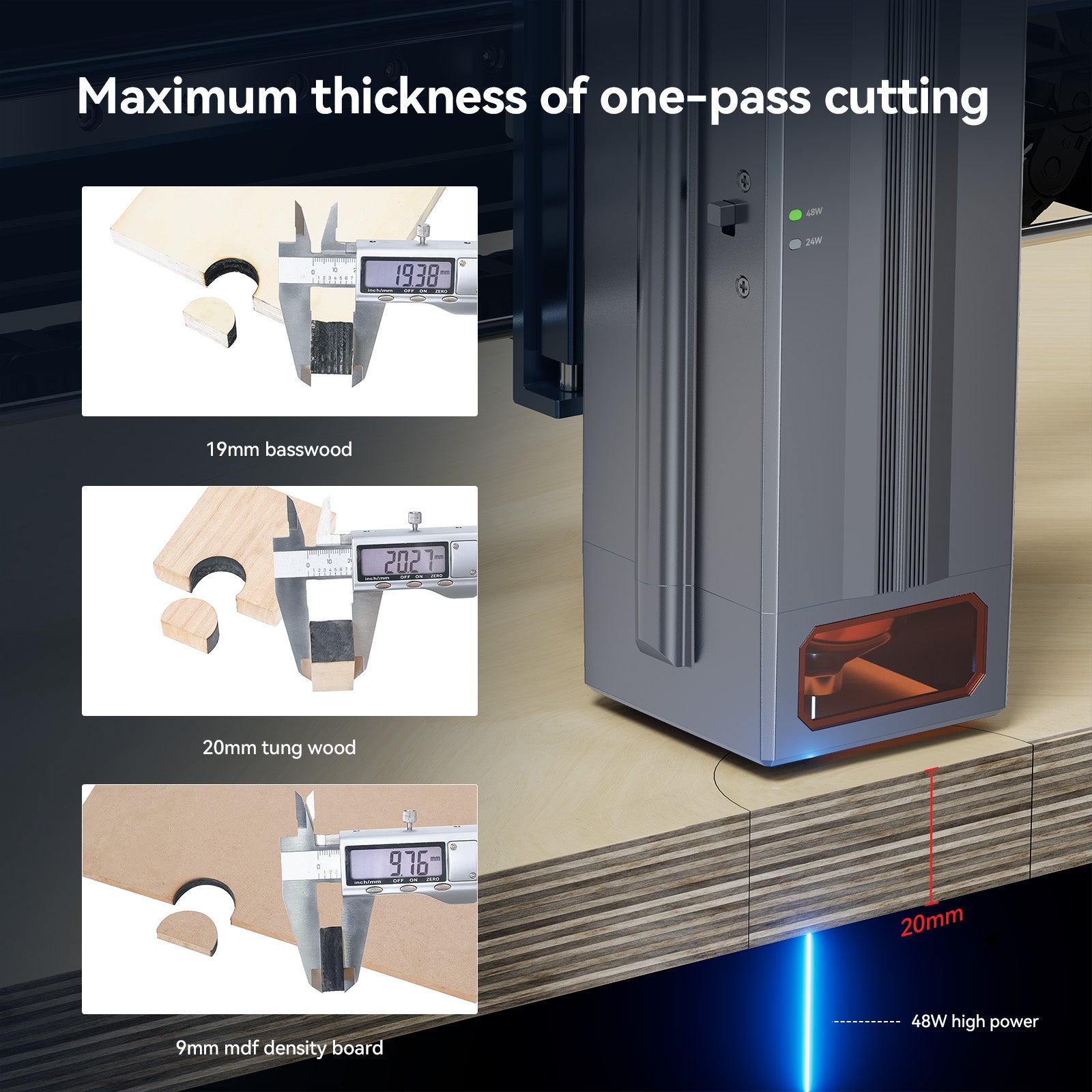

1. High Power: ATOMSTACK X40 Pro, the cutting-edge laser engraver, has the highest 48W optical power in the industry for professional work and greatly improves work efficiency. He can cut through 18mm basswood, pine and tung wood, 9mm mdf density board and 0.1mm stainless steel sheet at one time.

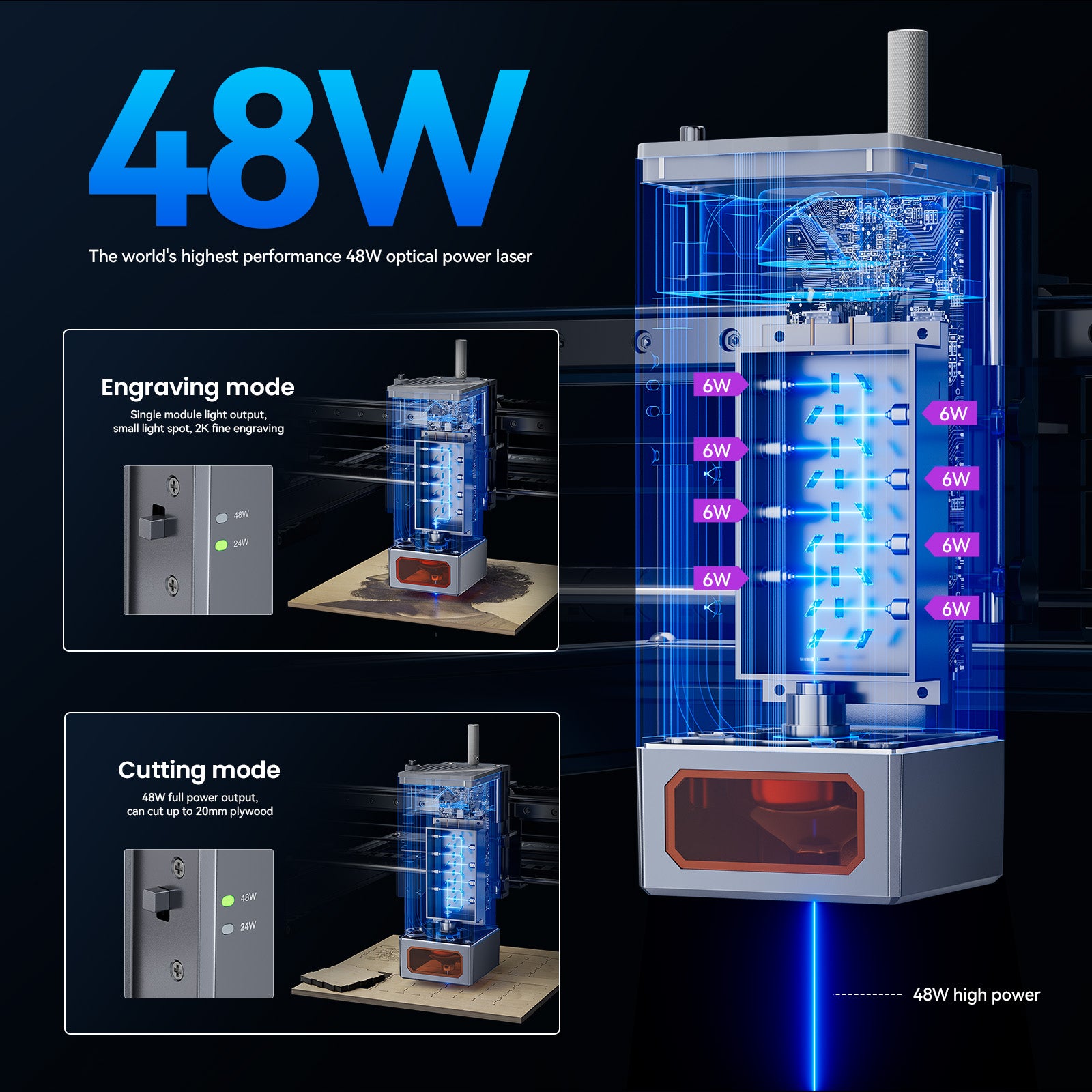

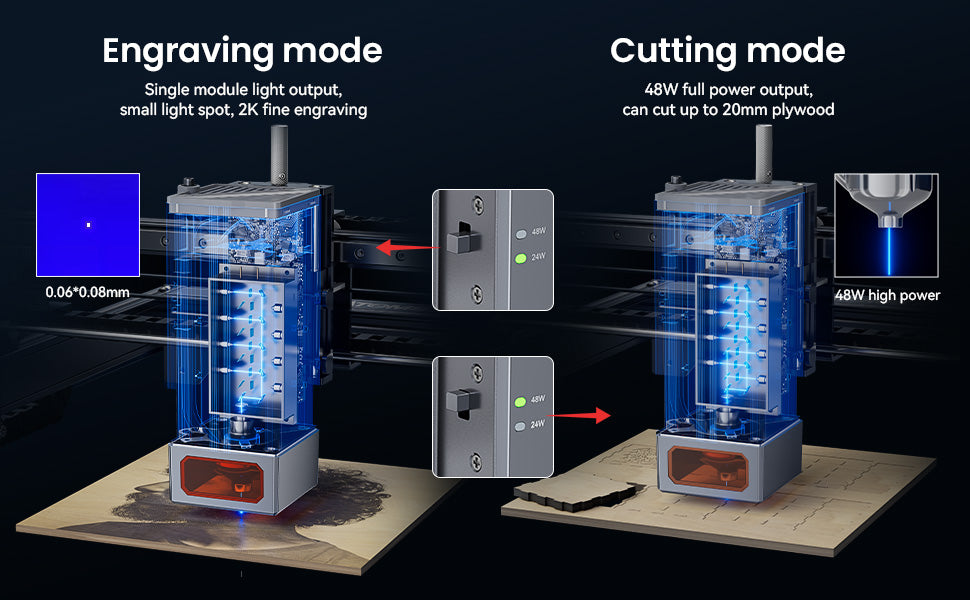

2. One Key Switch Engraving/Cutting Mode: ATOMSTACK X40 Pro adopts a new laser design, it can switch between 24W and 48W output power with one key by physical button. For different work of engraving and cutting open different modes, ATOMSTACK X40 Pro can be both fine engraving and powerful output.

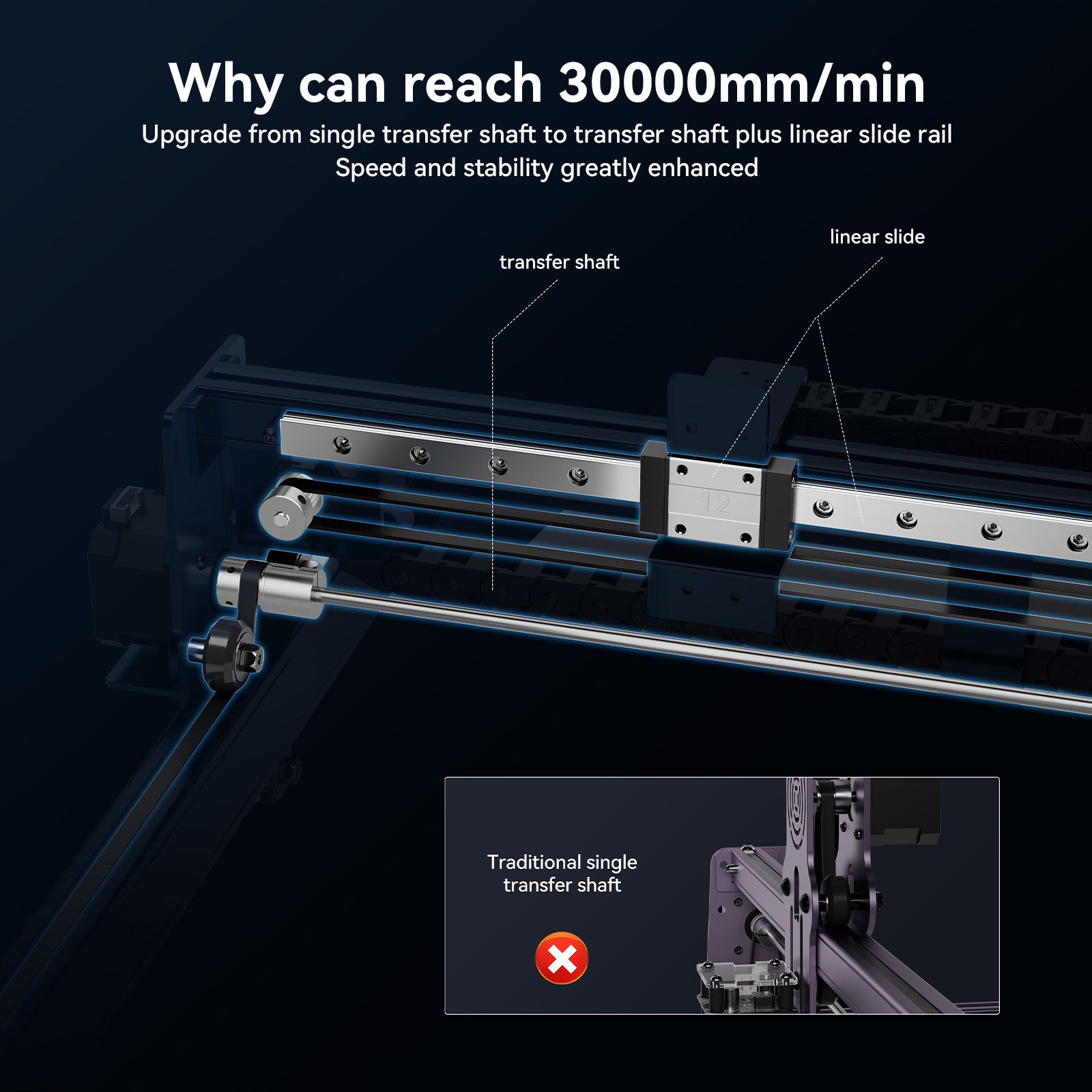

3. New Motion Structure: Unlike Atomstack's previous machines, ATOMSTACK X40 Pro adopts a linear guide X-axis with better structural stability, which makes X40 Pro work stably at a high speed of 600mm/s and engraving and cutting lines smoothly without jittering.
4. Cable Drag Chain: In order to make the machine more beautiful and the structure more stable, ATOMSTACK X40 Pro adopts the drag chain wire harness solution that other models do not have, so the wire harness runs smoothly without tangling and improves the wire life.
5. Professional Cutting Machine: ATOMSTACK X40 Pro adopts the most stable 48W high optical power laser module, using the latest 8pcs 6W laser coupling technology, the peak power can be as high as 48W. It can cut 20mm basswood, 25mm pine and tung wood, 12mm mdf density board.
6. Standard Automatic Switch Air Assist Kit: standard F30 Pro high flow air assist, you can turn on Lightburn M7 mode to achieve different modes of cutting/engraving automatic switch air assist. ATOMSTACK X40 Pro cutting capacity has been greatly enhanced at the same time, cutting accuracy and quality can also be largely optimized.
7. Upgrade Atomstack Self-research 32-bit Motherboard: built-in 256-bit color scale map makes engraving works more fine, higher contrast. This makes your engraving works not only black.
8. The New Non-clogging Laser: the new X40 PRO laser built-in tool-free focus module and air-assisted system, which makes it no wire interference, simple and beautiful. The new X40 PRO laser also has a patented double-layer poly wind cover design, which can ensure long time use without blocking the head and not polluting the lens, greatly improving the life of the laser.
9. Atomstack Self-research Cell Phone APP: Atomstack self-research cell phone APP is now on the major Android application market and Apple APPstore (you can also scan the manual QR code to download), small size and multi-function, bringing a new control experience, come and try it.
10. New Light Filtering Panoramic Glass Eye Protection Design: The panoramic light filtering glass protector plays a good role in protecting your eyes. It can filter 97% of the ultraviolet light, you and the people around you can watch the laser engraving without wearing goggles.
11. Strong and Easy to Install Structure: The full aluminum alloy anodized structure design makes the machine more solid and durable, and improves the accuracy of engraving. The whole structure supports quick installation design. Users can generally install the machine within 20-30min.
12. Wide Compatibility: The machine can be compatible with various mature carving software, such as LaserGRBL, LightBurn, supporting Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11, also supporting MAc system (LightBurn), carving file formats support NC, BMP, JPG, PNG, DXF, etc.
13. Upgraded Compression Spot Coupling Technology: ultra-fine laser focus area reduced to 0.1*0.1mm, high-density laser can easily cut thick wood, black acrylic. ATOMSTACK X40 Pro can directly engrave mirror stainless steel metal, ceramics, glass. The engraving and cutting speed is 40% higher than ATOMSTACK X30 Pro, which can be comparable to the cutting effect of 80W CO₂ laser engraving machine.
14. Integrated Screw: The machine adopts integral screw instead of combined coupling, the stepper motor and the screw are integral, which makes the laser movement more accurate and the coupling more durable.
15. Laser Sintering Temperature: up to 3000 ℃
16. Safety Protection: configured with an emergency stop button. If there is an accident, you can stop the machine at any time to run. Reset switch and limit switch make the engraving process safer.

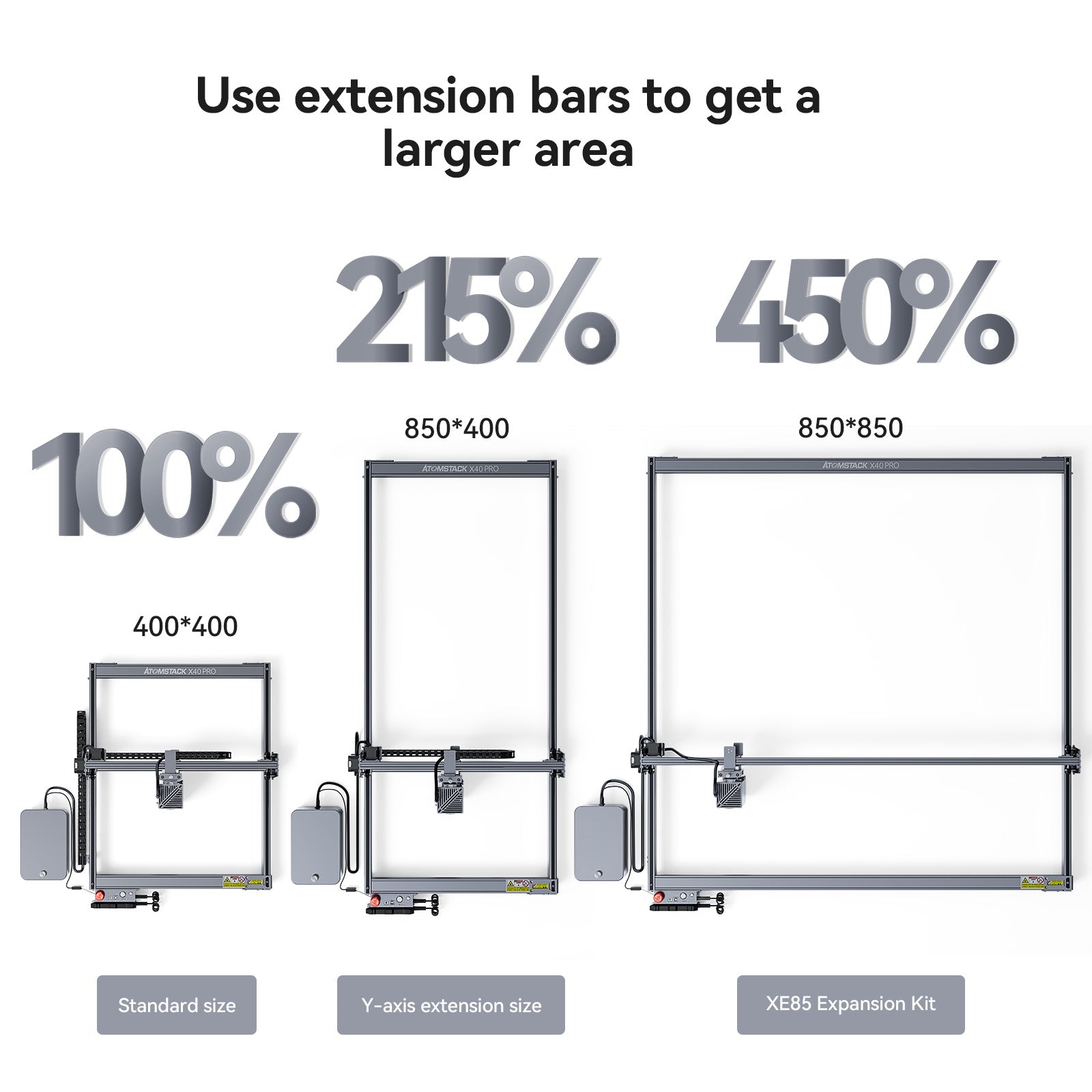

17. Expandable Engraving Size: modular design of the body mechanism, you only need to replace the Y-axis frame components to get 850 * 400mm large engraving size.
Product Model: ATOMSTACK X40 Pro
Engraving size: 400*400mm
Engraving material: wood, bamboo, cardboard, plastic, leather, PCB plate, aluminum oxide, non-reflective, radioactive plated and lacquered layer metal, 304 mirror stainless steel, glass, ceramic, cotton, slate
Cutting materials: cardboard, non-woven fabrics, wood panels, plywood, acrylic (transparent to be blackened), certain thin plastic plates, sponges, metal sheets such as aluminum and stainless steel
Overall machine power: 210W
Laser output optical power: 40-48W
Laser wavelength: 455±5nm
engraving accuracy: 0.01mm
Focusing mode: fixed focus laser, no focus
Laser protective cover: Laser shield: There is a protective shield on the laser that protects the user's eyes, eliminating the need to wear additional eye protection. It also prevents pets from grabbing the laser spot.
Operating software: LaserGRBL, LightBurn, supports Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 system
Supported file formats: NC, BMP, JPG, PNG, DXF.
Data transfer method: USB connection
Power supply: International standard power
input: 100-240V AC, 50/60HZ
Output: 12V 8.5A
Certification: CE FCC RoHS FDA PSE
1×Linear guide X-axis assembly
1×Base upper profile
1×Base lower profile
1×F30Pro double pump air assist
4×Foot pad foam
1×Fixed focus sheet
1×Y-axis left profile
1×Y-axis right profile
● When operating the laser engraving machine, please install the laser protection cover; you need to wear goggles when it is not installed.
● Do not touch the laser with your hands, otherwise your hands may be burned.
● Please avoid strong impact to the machine.
● Children under 14 years old are prohibited from using this product; children over 14 years old need adult supervision.
● Do not apply the laser directly to any mirror reflecting object, this may cause injury to the operator or burn the laser.
