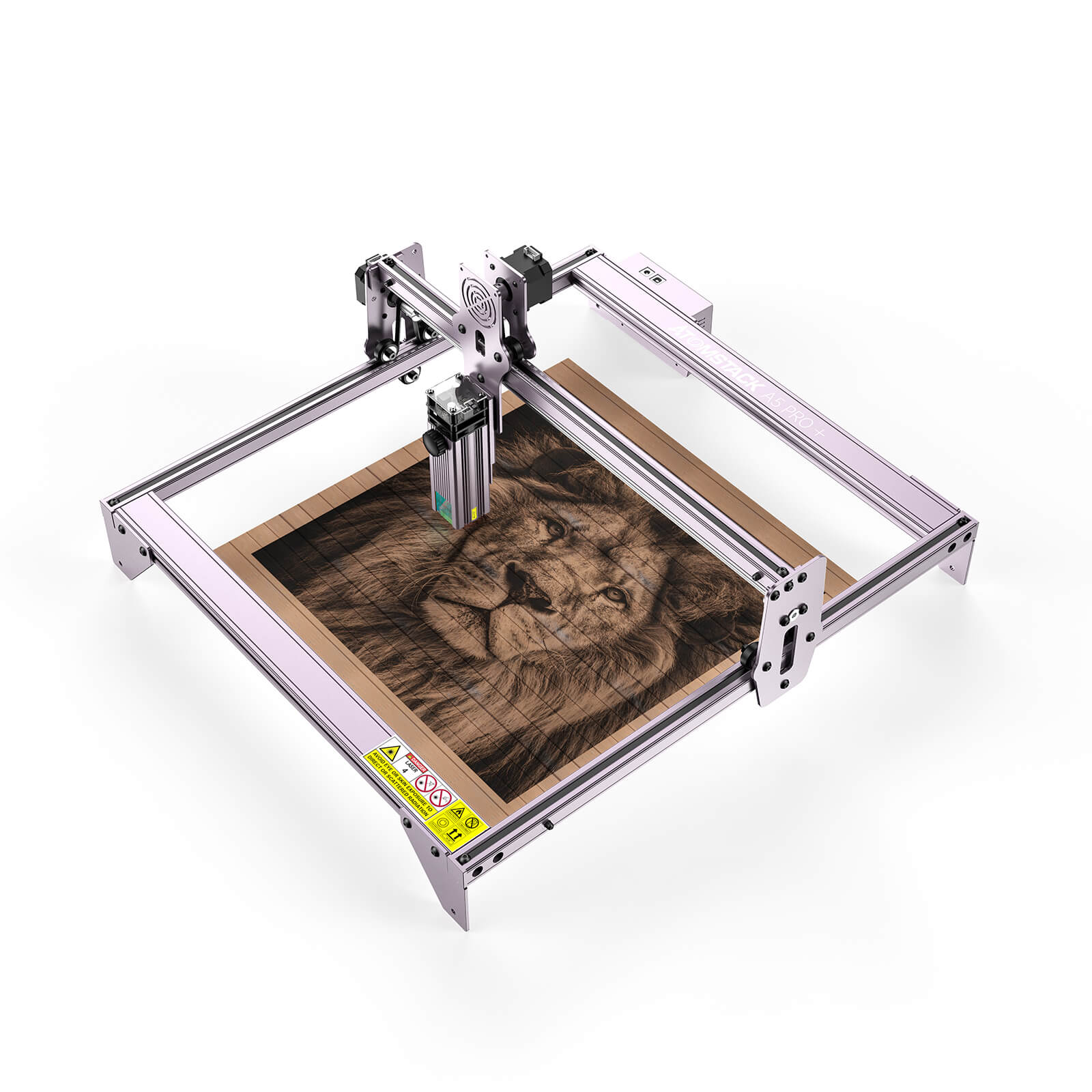

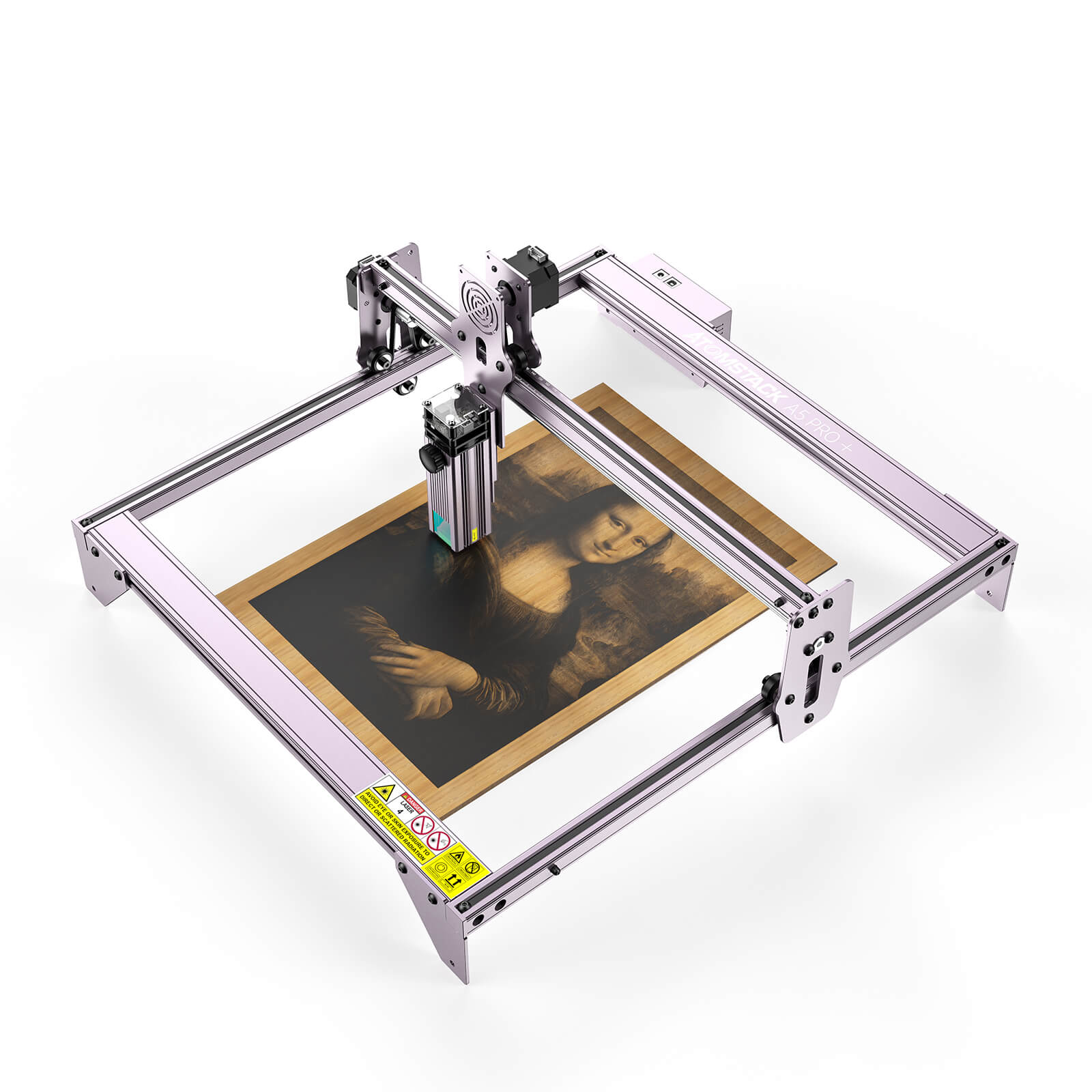

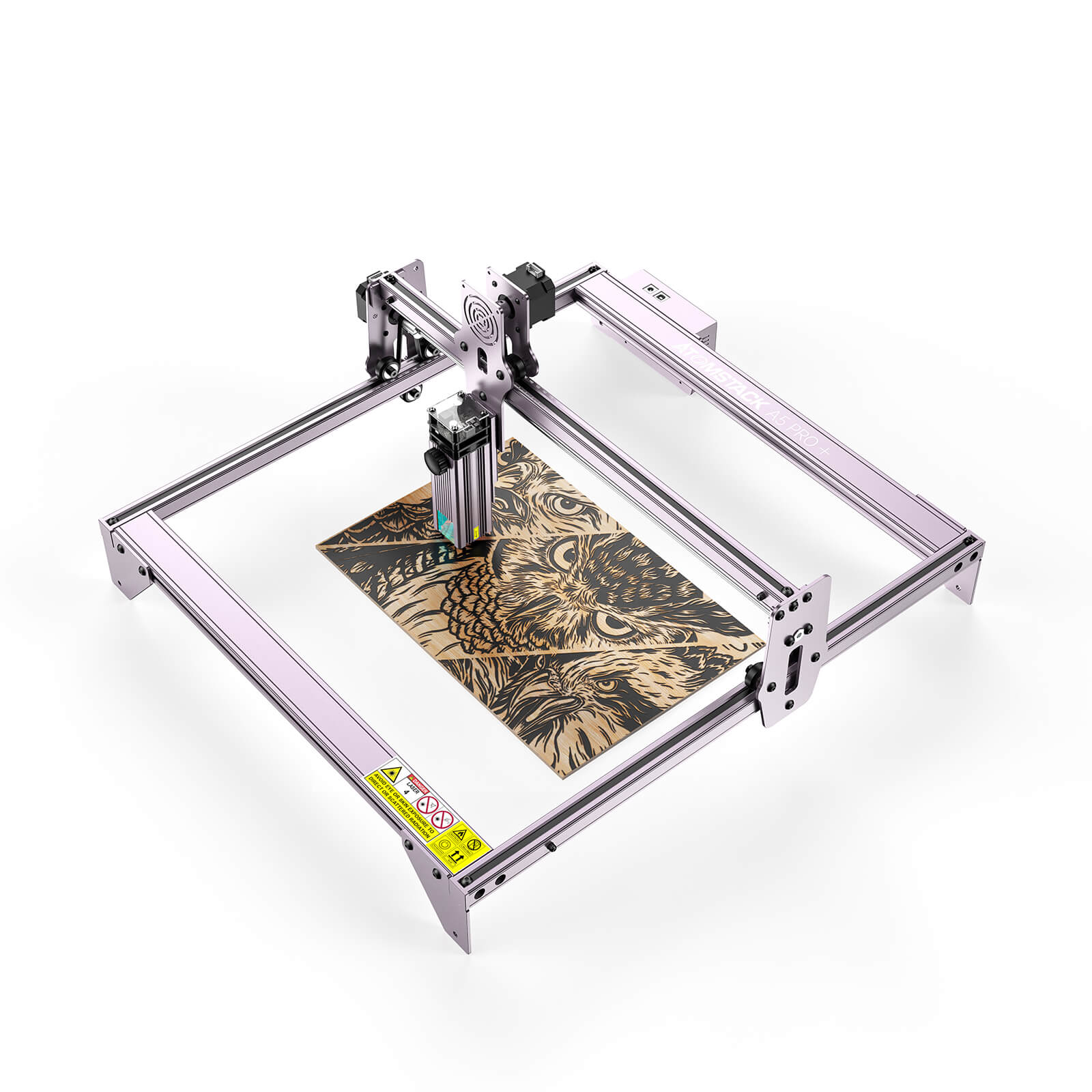

Upgraded Atomstack A5 PRO+ 40W Laser Engraving Machine

$349.99

This is an upgraded version of the Star model A5 Pro
It has compressed spot technology, which makes engraving and cutting more precise

PLUG: US Plug

  • US Plug
  • EU Plug
  • UK Plug
  • AU Plug

Ships From: China

  • China
$349.99
Out of stock
SKU: NewA5Pro-USN/AAvailability : In StockIn StockOut of stock

Main Features:

★ A5 PRO+ is an upgraded version of the star model A5 Pro. It has a better laser module and uses lens compression spot technology.

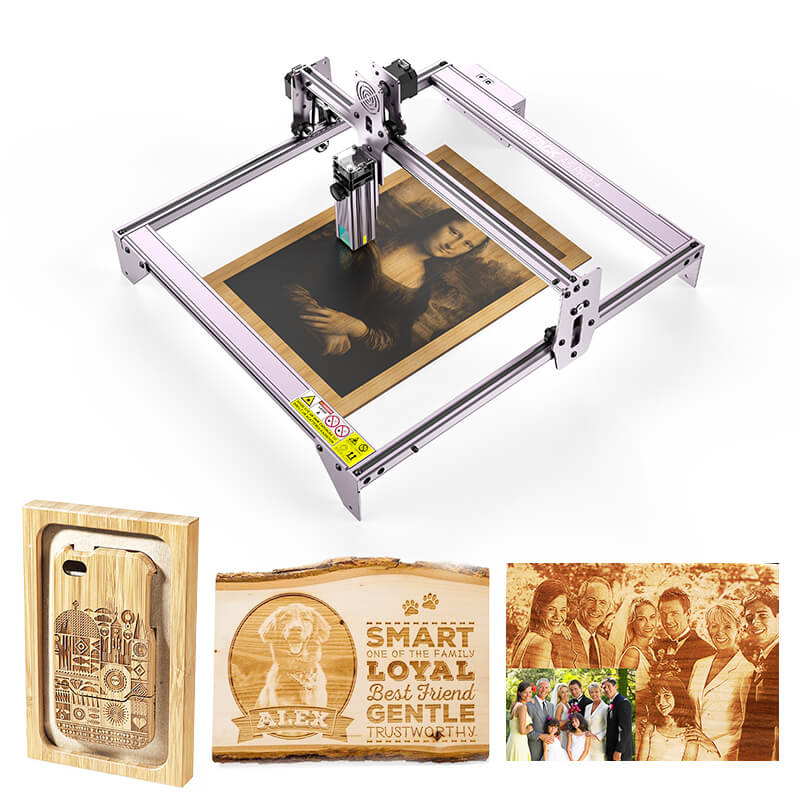

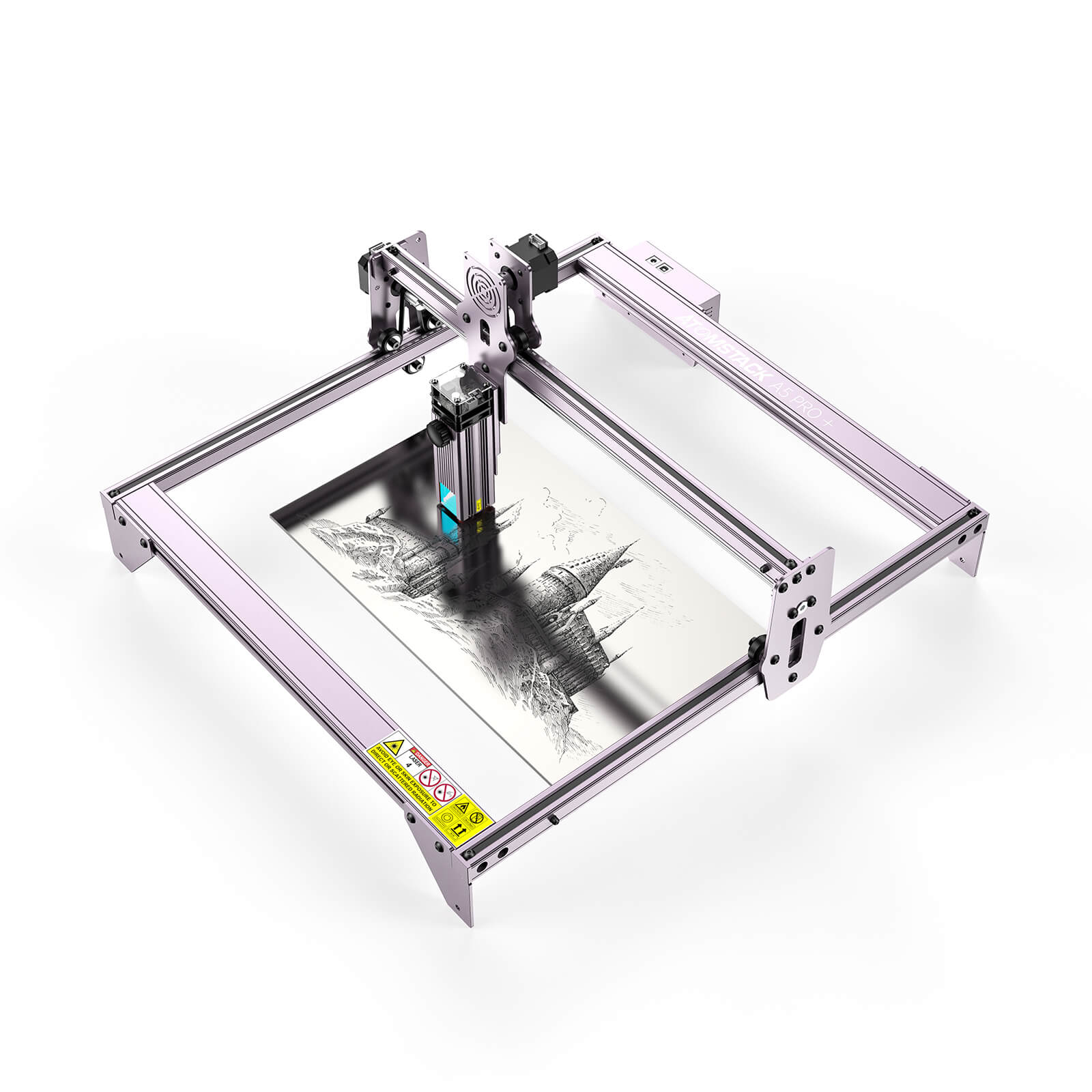

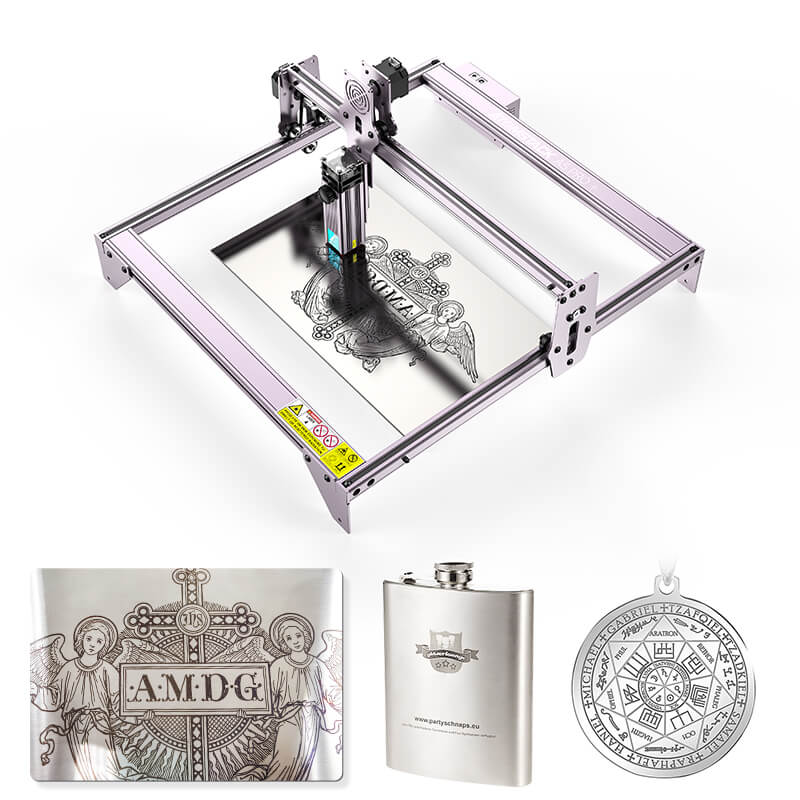

★ It can engrave on metal, ceramics, slate, glass, wood, and cut wood, acrylic and other materials.

★ It can easily cut 10mm wooden boards and 8mm acrylic to achieve the effect of a 100W CO₂ laser engraving machine.

★ It supports an extension kit of 850*410mm to expand the working area.

Video

Basic Specifications:

Model  A5 Pro+
Electric Power 40W
Laser Power 5.5-6W
Working Area 410*400mm
Data Transmission USB
Wave Length 0445 ± 5nm
Engraving Accuracy 0.01mm

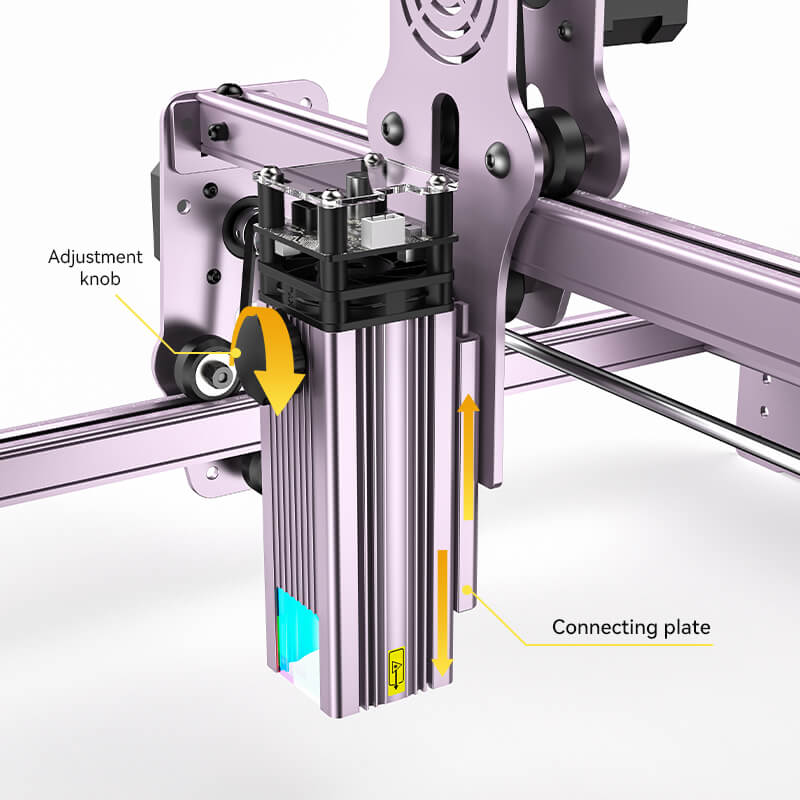

Focusing Method Fixed focus laser, no need to focus
Operating Software LaserGRBL (free, supports Windows) or LightBurn (paid, supports Windows, Mac OS and Linux)
Input Format NC, BMP, JPG, PNG, DXF, etc
Input Voltage AC100-240V, 50/60Hz
Output Voltage DC12V, 5A

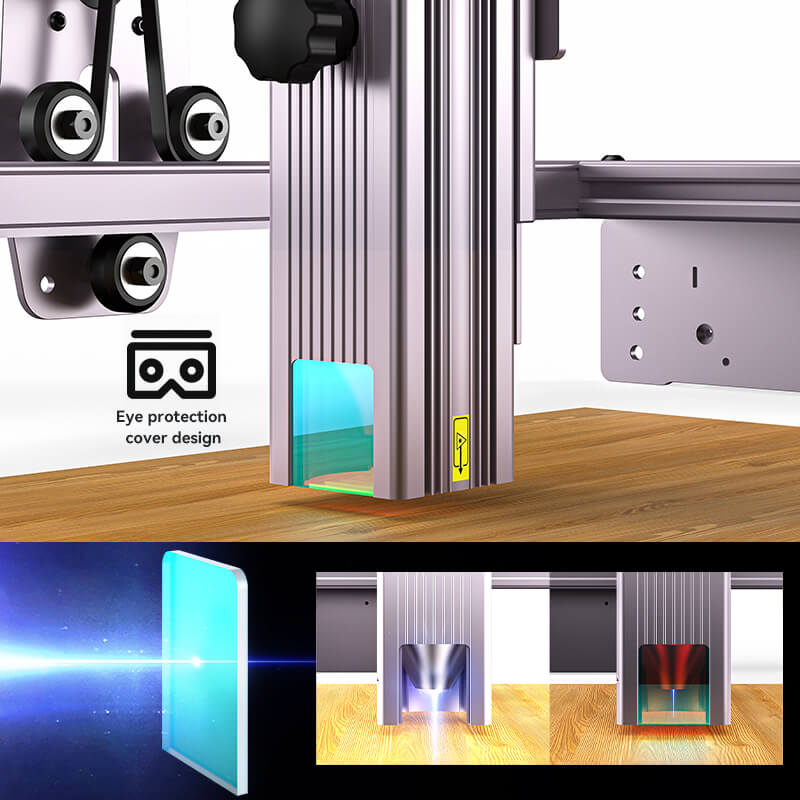

Laser Protective Cover Protect the user's eyes and prevent pets from grabbing the laser spot.
Cutting Objects 1/5" wood and Acrylic ( The deepest cut can be 1/2", repeated cutting multiple times ), material, Cardboard, non-woven fabric, thin plastic board.
Carving Objects Wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, ceramics
Equipment net weight 3.426kg
Package weight 5.072kg
Equipment size 570*600*270mm
Packing size 620*345*130mm
Certification CE FCC RoHS FDA



More details:

A5 Pro+ PACKAGE:

1* X-axis assembly
2* Section 57CM
2* Section 48CM
1* Control box
3* support legs
1* Goggles
1* laser
1* 12V2A power adapter
1* Power switch line
1* USB cable

Step 1~5 installation package

1* M5 wrench
10* rolled belt
3* small wood
1* focal length film
1* M3 wrench
1* marker
1* brush
3* small acrylic
1* Stainless steel backing plate for cutting

Note:

- When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
- Please do not touch the laser emitter with your hand, or it may burn your hand.
- Please avoid strong impact on the machine.
- Children under 14 are not allowed to use this product and children over 14 need adult supervision.
- The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.

Shipping Info: Usually takes 3-15 business days.

For detailed information on standard delivery and express delivery, choose your shipping country or shipping region from below:

Country or Region Shipping Method Ships From Shipping Time Shipping Fee
United States FedEx/USPS United States 3-7 Free

EU Countries

DHL/UPS Germany Or Czech 3-8 Free

Asian Countries

4PX/FedEx China 6-10 $19
United Kingdom, Canada, Mexico, Israel, Australia, Turkey, Serbia 4PX/FedEx China 6-15 $49

EU Countries:  Austria, Belgium, Bulgaria, Cyprus, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden

Asian Countries: Singapore, Malaysia, Japan, Thailand, Korea, Philippines, Vietnam, Indonesia

The shipping time is a estimated time. Invalid address, customs clearance procedures, the COVID-2019, the bad weather or other reasons will lead to a longer delivery time than expected.

ABOUT TAX

Shipments from all of our warehouses are delivery duty unpaid. Therefore, any and all customs or import duties are charged once the parcel reaches its destination country. If any, these charges must be paid by the customers. Customers take full liability for all return shipment costs, customs charges and handling fees should they refuse to accept a parcel due to import duties or taxes. Please note that according to customs regulations, Madethebest cannot declare purchased items as a gift or list an amount that lower than the actual product price.

Software

LaserGRBL (Free) (Windows): Download Page
LightBurn (Paid - 30 Day Free Trial) (Windows/Mac OS/Linux): Download Page



User Manual

Download User Manual (X7 Pro)

Download User Guides (A5 / A5 Pro / A5 M40 / A5 M30)

M50 User manual (M50 Laser Module)

Materials Reference

Engraving & Cutting Materials Reference

Installation manual

Download installation manual

FAQ

Download FAQ



** If the computer fails to link with the engraving machine, please refresh the driver.

Driver Download:

LaserGRBL Driver

LightBurn Driver

Q: How long does it take to assemble?

A: 5-15 minutes (Depends on your preparation).

Q: Which engraving software is supported?

A: LaserGrbl (Free)(Windows XP, Windows 7, Windows 8, Windows 10)

LightBurn (Paid-30 Day Free Trial)(Mac OS, Linux, Windows XP, Windows 7, Windows 8, Windows 10)

Q: What materials can be engraved?

A: Wood, plastic (opaque), cloth, leather, and other materials that can be burned by laser.

Q: Can I engrave metal and stainless steel?

A: You can mark the metal after plating or spraying (acting on the coating or oxide layer), stainless steel (the effect is better after the stainless steel is painted black. Note: It is not engraving, but discoloration).

Q: How many hours can A5 or A5 Pro work continuously?

A: 24 hours (In a well-ventilated environment).

Q: Can the laser module be replaced?

A: Yes, but the Laser Module input voltage needs to support 24V.

Q: How long is the warranty period?

A: One year warranty (We will send you the corresponding non-artificially damaged parts for free).

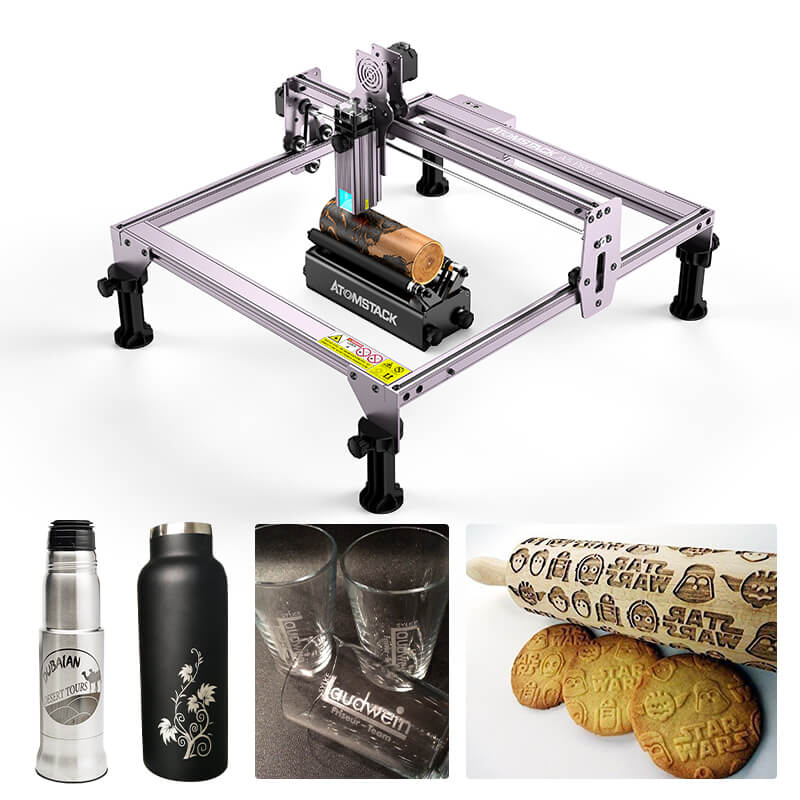

Q: Is it possible to engrave cylindrical surfaces?

A: Need to purchase Atomstack R3 Rotary Roller as an accessory to sculpt the cylindrical surface.
