1. Upgrated Ultra-fine 0.23mm*0.23mm Laser Focal Area
2. New eye protection design
3. 410x400mm Large Carving Area
4. Upgraded High-quality Laser
5. Full-metal Structure
6. Quick Assembly Design
7. Precise Scale Lines

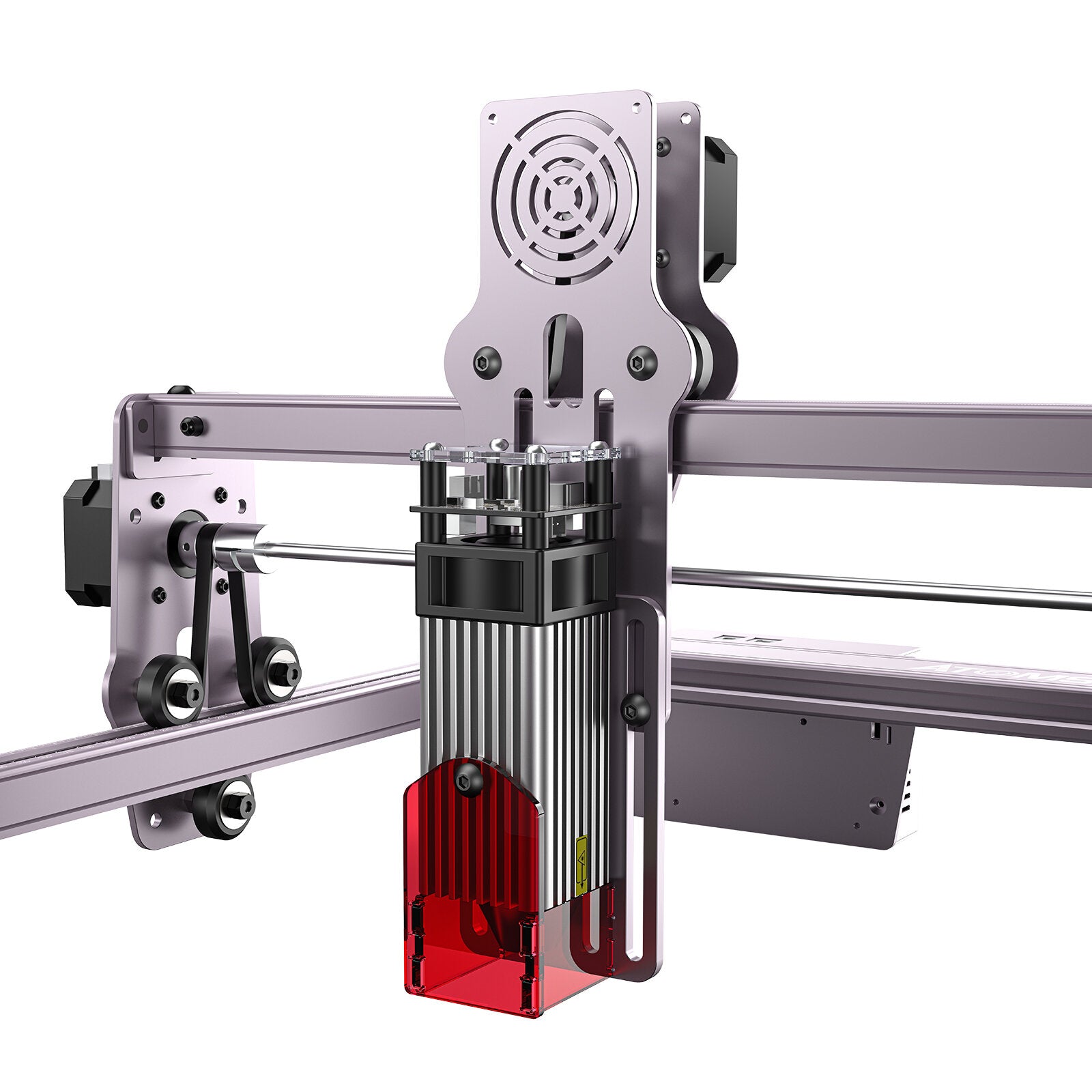

1. New eye protection design: The laser protective cover perfectly protect your eyes,filter UV light for 95%. You and the people around can watch laser engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.

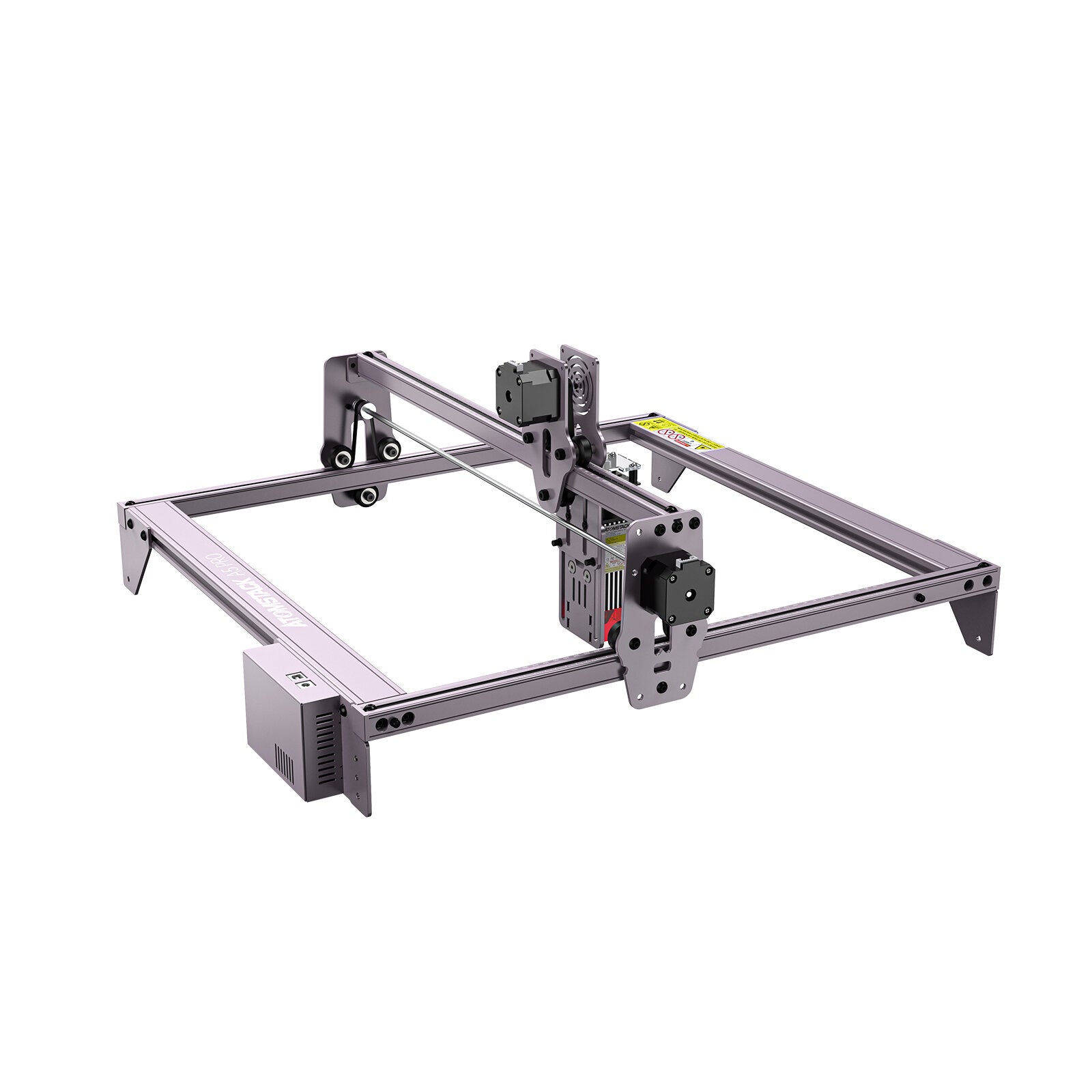

2. Solid and easy installation structure design: The full-metal structure design makes the machine more solid, it will reduce the vibration of the machine and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

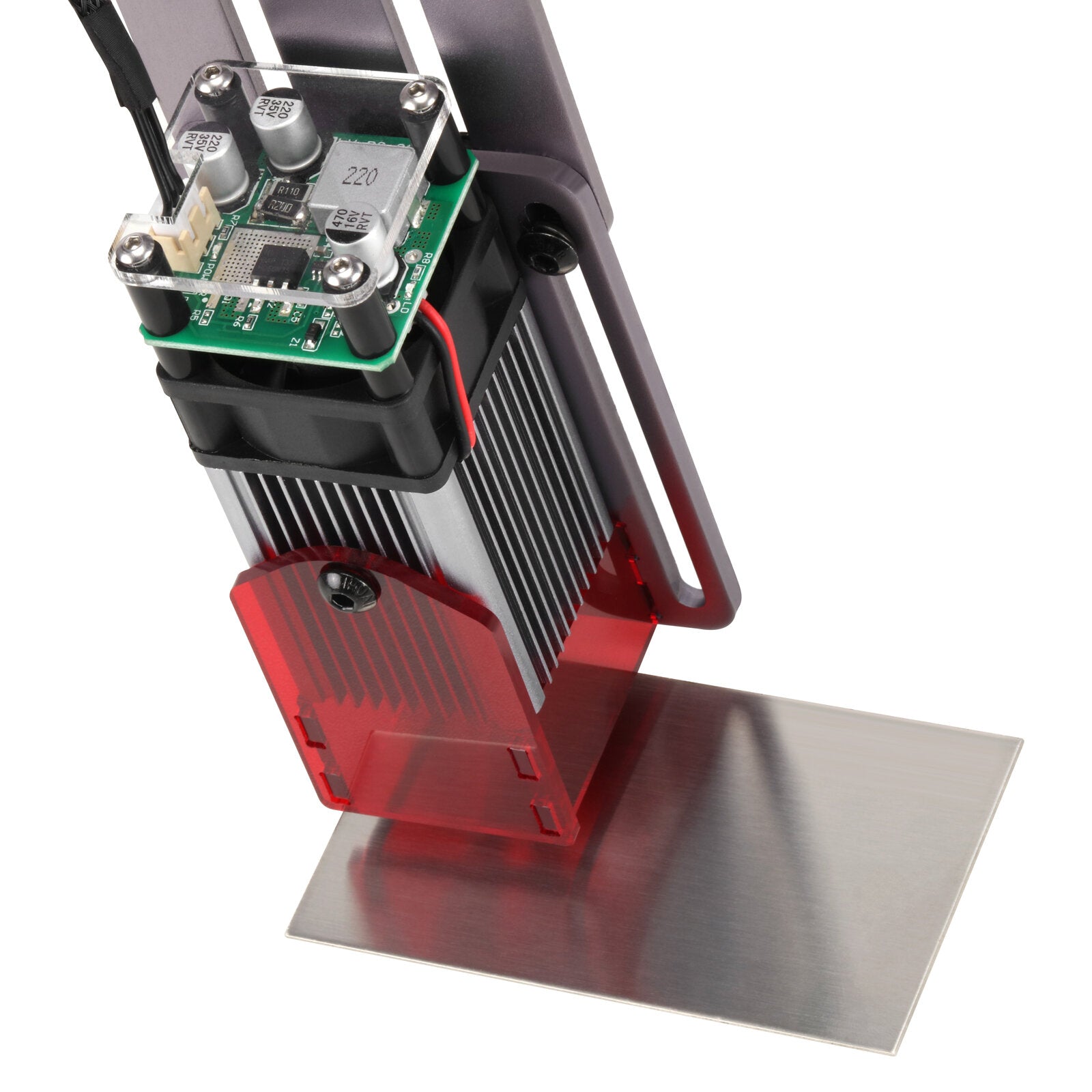

3. Fixed-focus laser: No need to rotate lens to focus, the focal length of the laser is a fixed value, move the lens up and down close to the surface of the object to start carving.

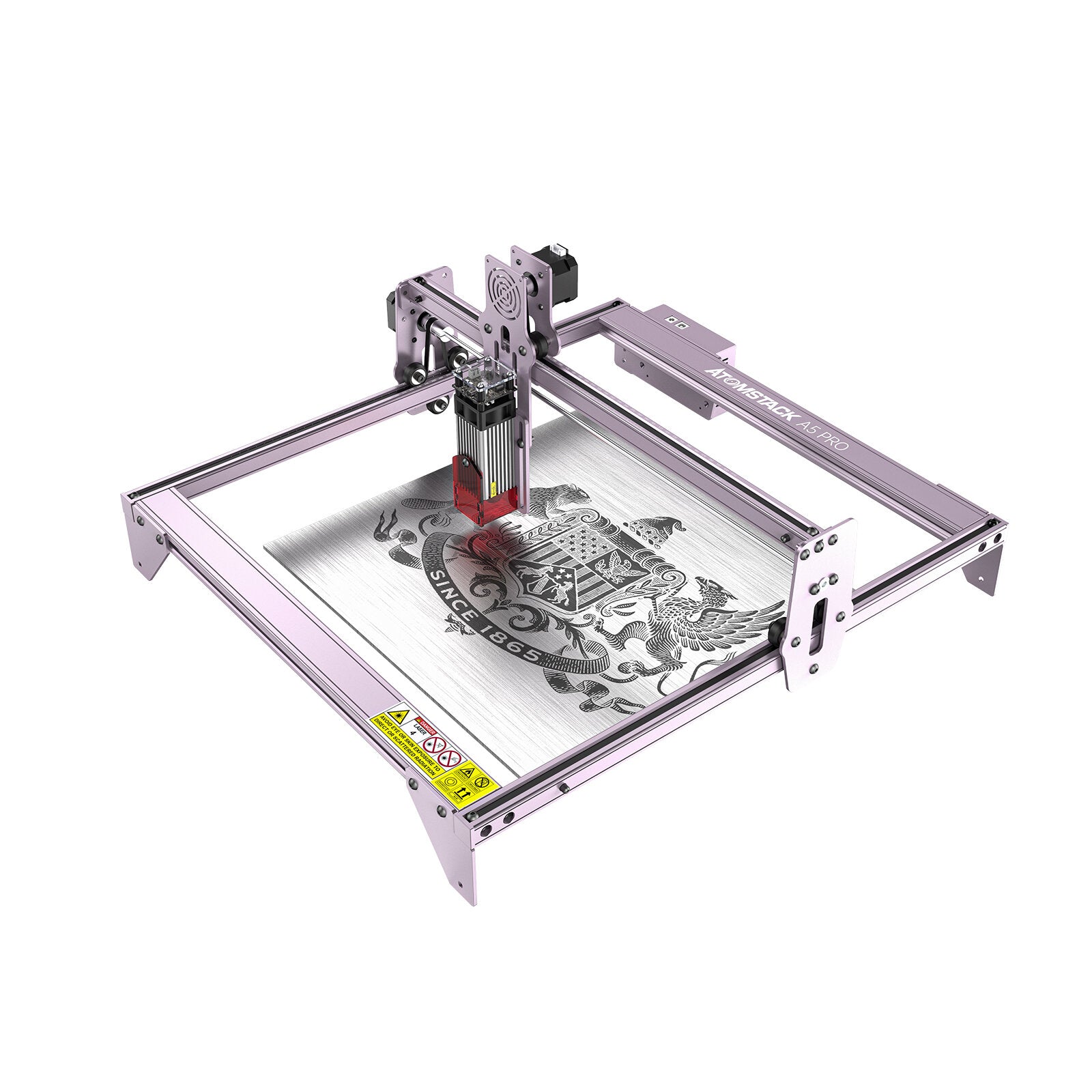

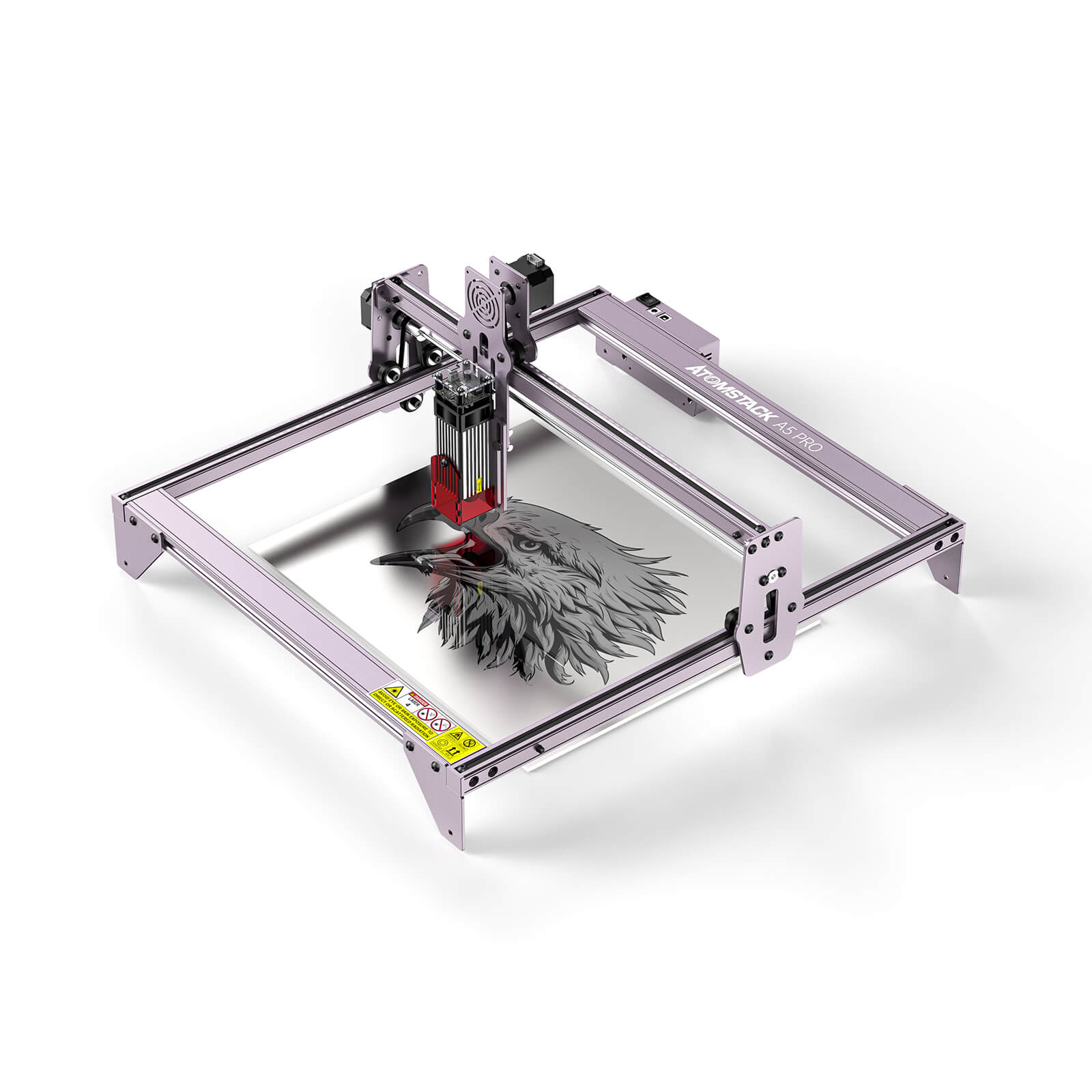

4. High-energy, ultra-fine laser: laser power is 5W-5.5W, ultra-fine laser focal area is reduced to 0.23mm^2, high-density laser can easily cut 12mm thick wood, black acrylic; can directly engrave smooth stainless steel metal, ceramics.
5. Wide compatibility: The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MACs system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

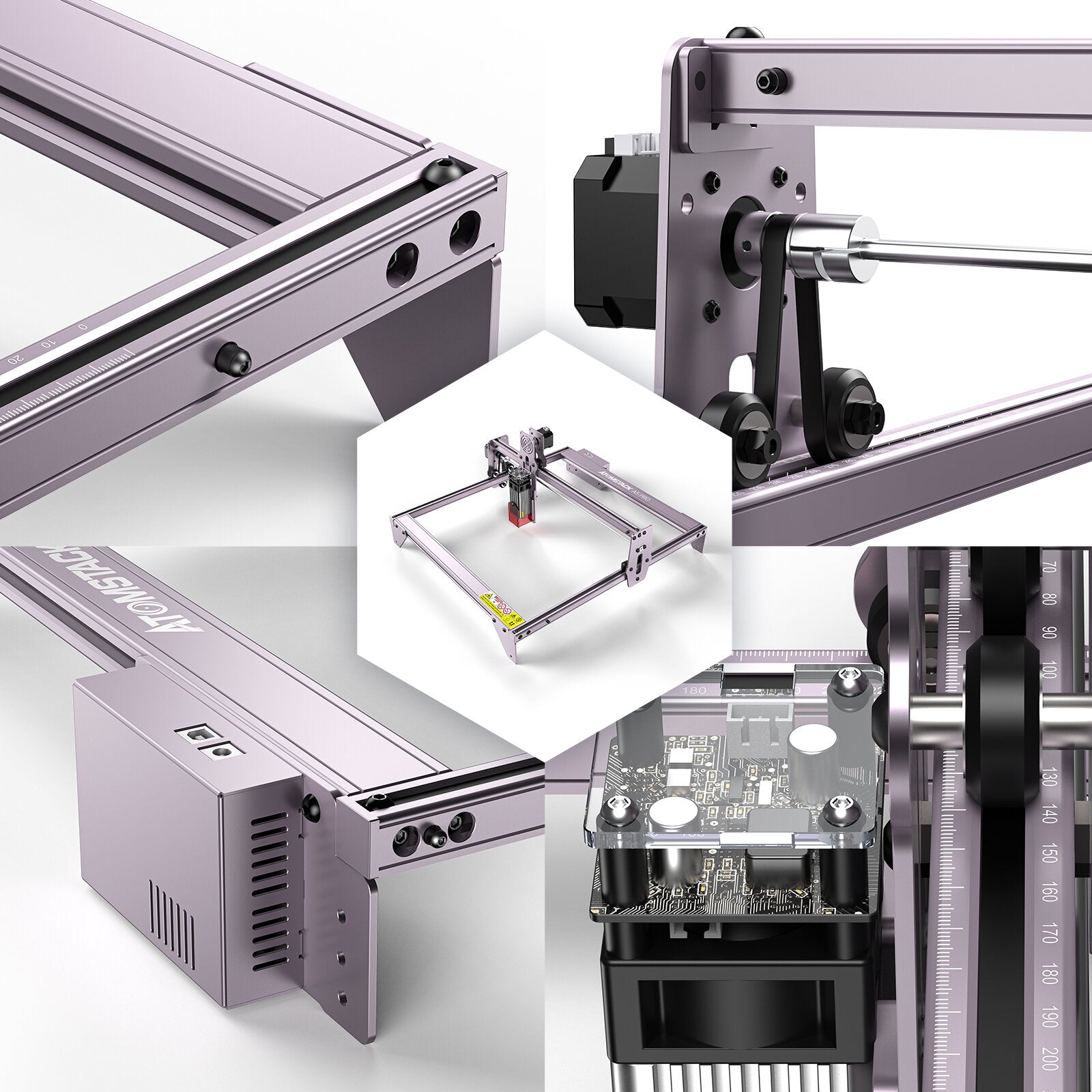

6. Precise scale lines axis: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.
7. Integrated stepper motor and shaft: The machine uses an integral screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the laser movement more precise and the coupling more durable.
|Item model number||ATOMSTACK A5 PRO|
|Print Size||Recommend Print Size 410*400mm|
|Carving Objects||All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, ceramics (Should be painted black)|
|Cutting Objects||Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.|
|Laser output power||5W-5.5W|
|Wave Length||445 ± 5nm|
|Focusing method||Fixed focus laser, no need to focus|
|Laser protective cover||Protect the user's eyes and prevent pets from grabbing the laser spot.|
|Operating software||LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.|
|Input Format||NC, BMP, JPG, PNG, DXF, etc.|
|Data transmission method||USB connection.|
|Input Voltage||AC100-240V, 50/60Hz|
|Output Voltage||DC12V, 5A|
|Equipment net weight||4.0kg|
|Certification||CE FCC RoHS FDA Weee|
1. When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
2. Please do not touch the laser emitter with your hand, or it may burn your hand.
3. Please avoid strong impact on the machine.
4. Children under 14 are not allowed to use this product and children over 14 need adult supervision.
5. The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
1 x X-axis assembly
2 x Section 57CM
2 x Section 48CM
1 x Control box
3 x Support legs
1 x Goggles
1 x Laser
1 x 24V2A power adapter
1 x Power cord
1 x USB cable
Step 1~5 Installation package
1 x M5 wrench
10 x Rolled belt
3 x Small wood
1 x focal length film
1 x M3 wrench
1 x Marker
1 x Brush
3 x Small acrylic
