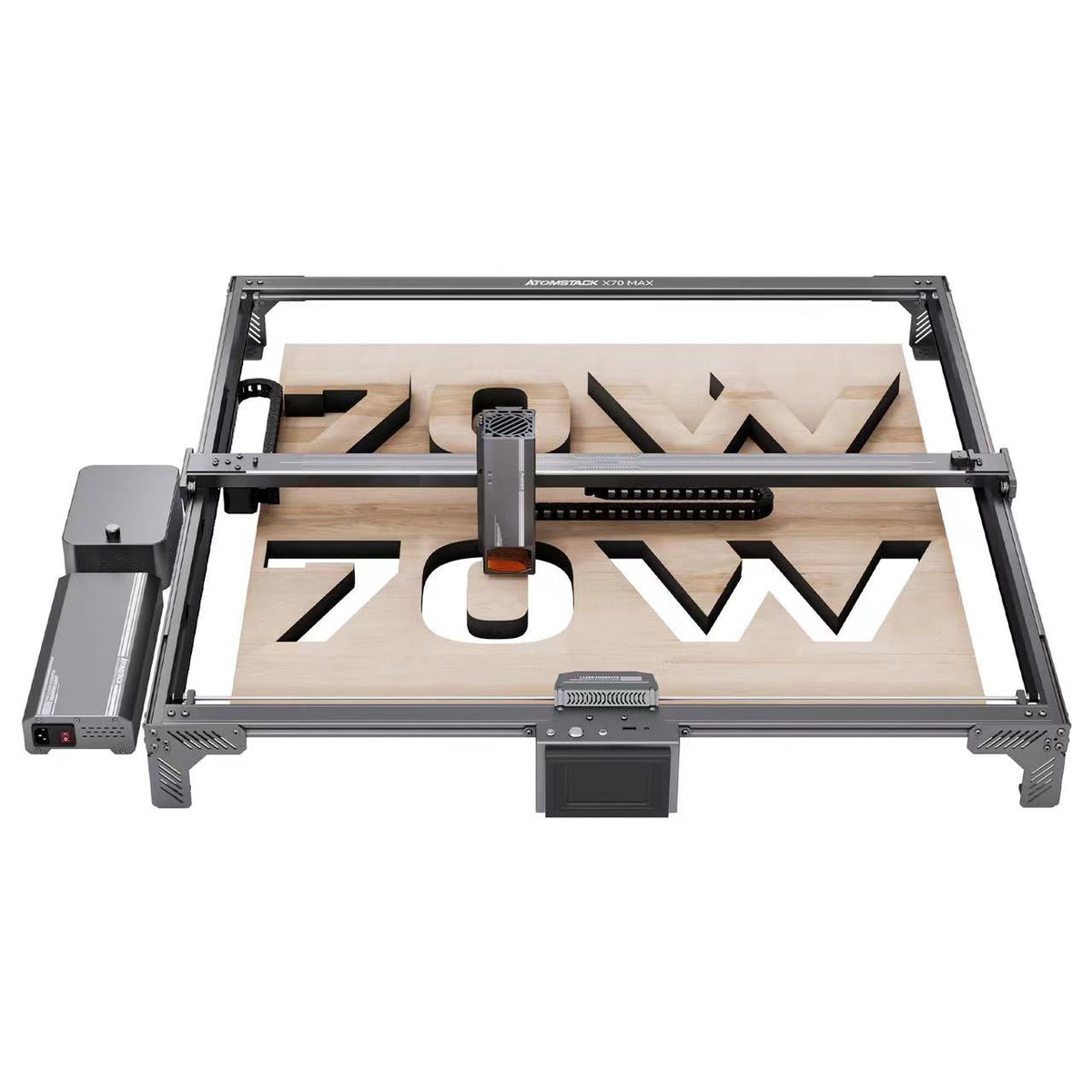

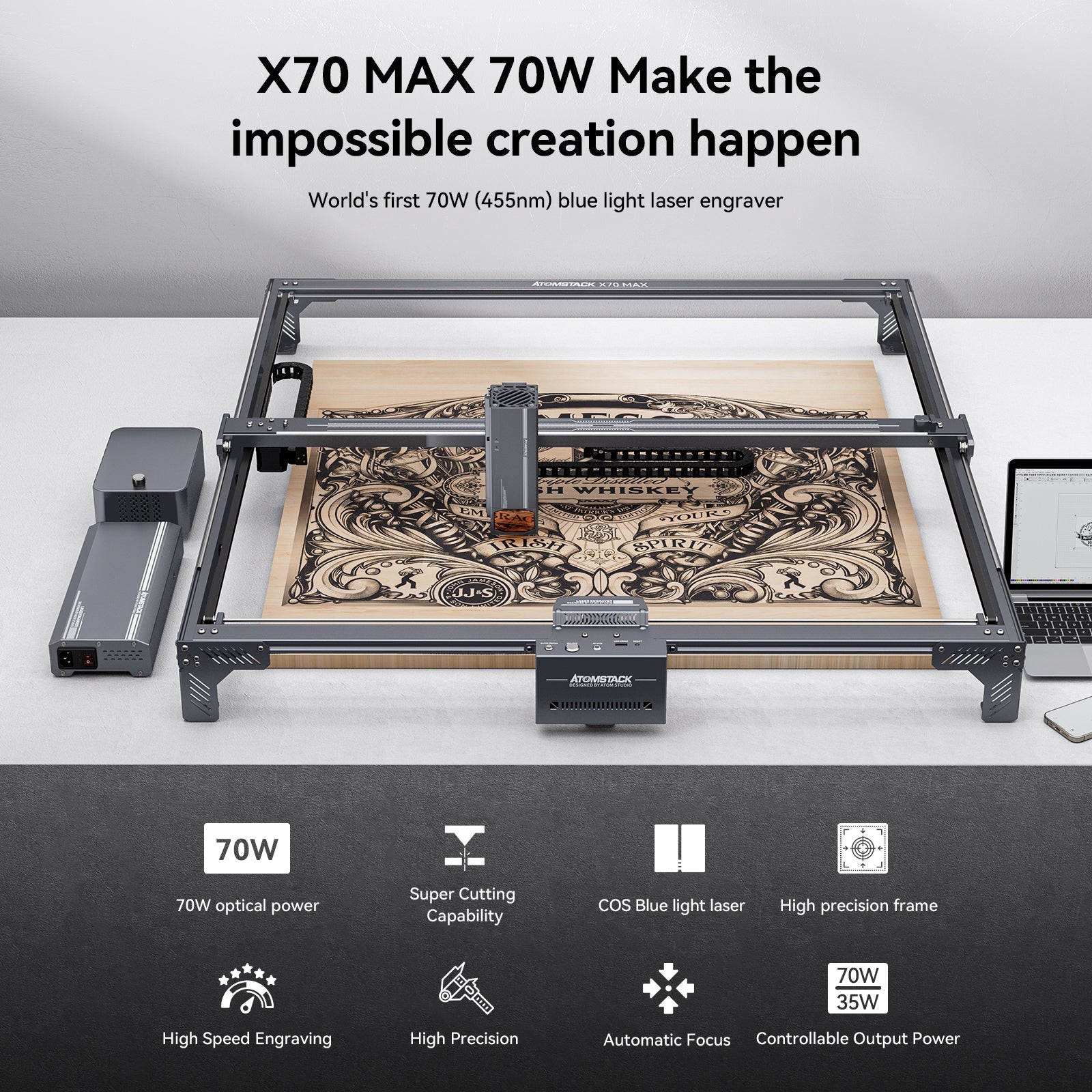

Atomstack X70 Max 360W Laser Engraver F60 Air Assist Kit 850*800MM Engraving Size
➤ Engraving Accuracy: 0.01MM Precision with 400MM/S
➤ Engraving Size: 850*800MM

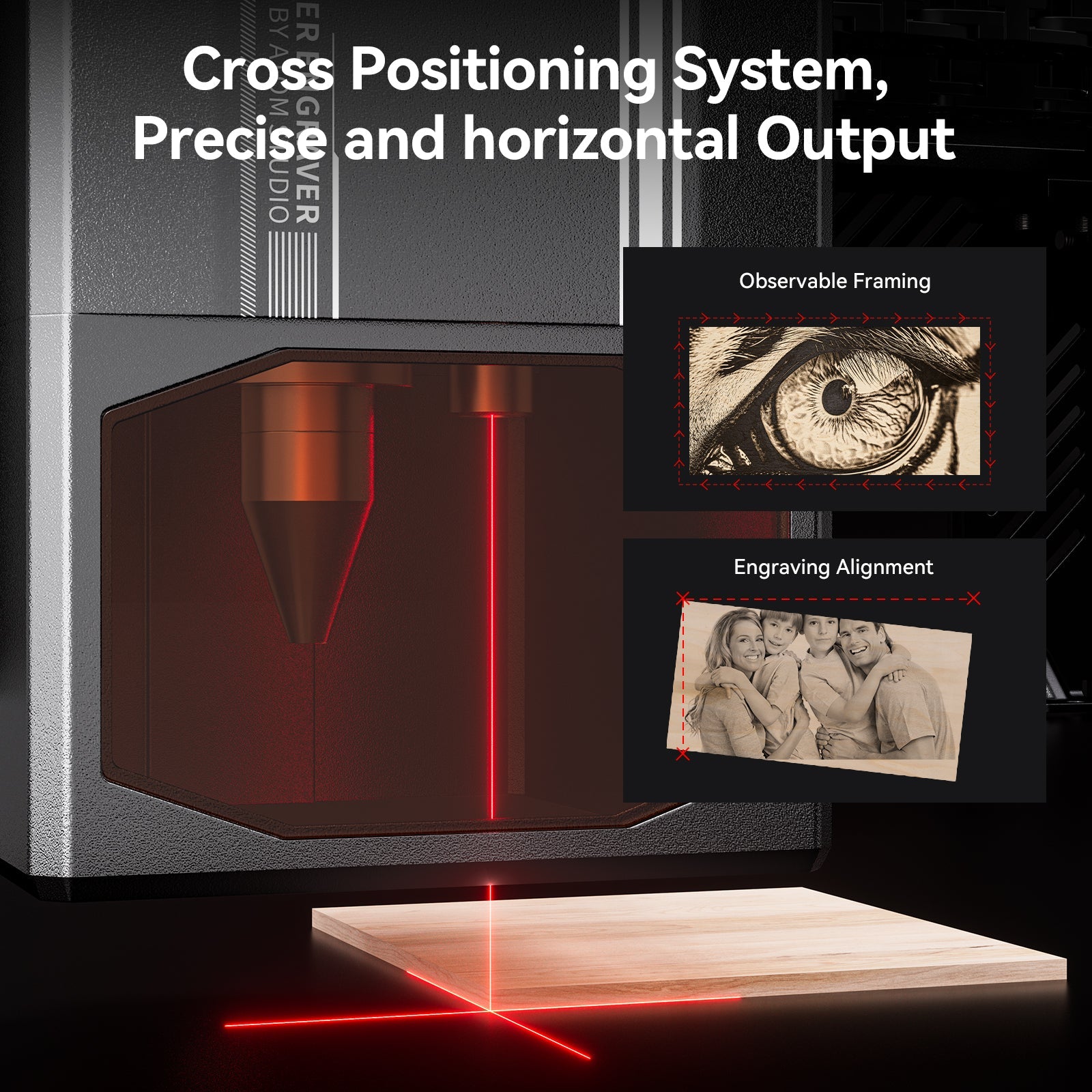

➤ Cross Positioning System
➤ Dual-Shaft Driving
➤ Built-in Screen Controller
-
Warranty:
1-Year for New Machines -
Shipping Time:
Within 1-3 Days -
International Express:
3-5 Working Days -
Liner Logistic:
7-10 Working Days
Note: Customs duties will be incurred if your order is shipped from China.
Frequently Bought Together
Characteristics:
1. Powerful cutting force: capable of cutting 25mm black acrylic, 12mm MDF density board, 30mm pine board, 0.3mm stainless steel sheet
2. Max version processing area: The most professional blue light laser cutting and engraving machine, standard 800*850mm large working area, frame can accommodate materials up to 1045*950mm with four support feet and fixed holes for stable operation on the workbench

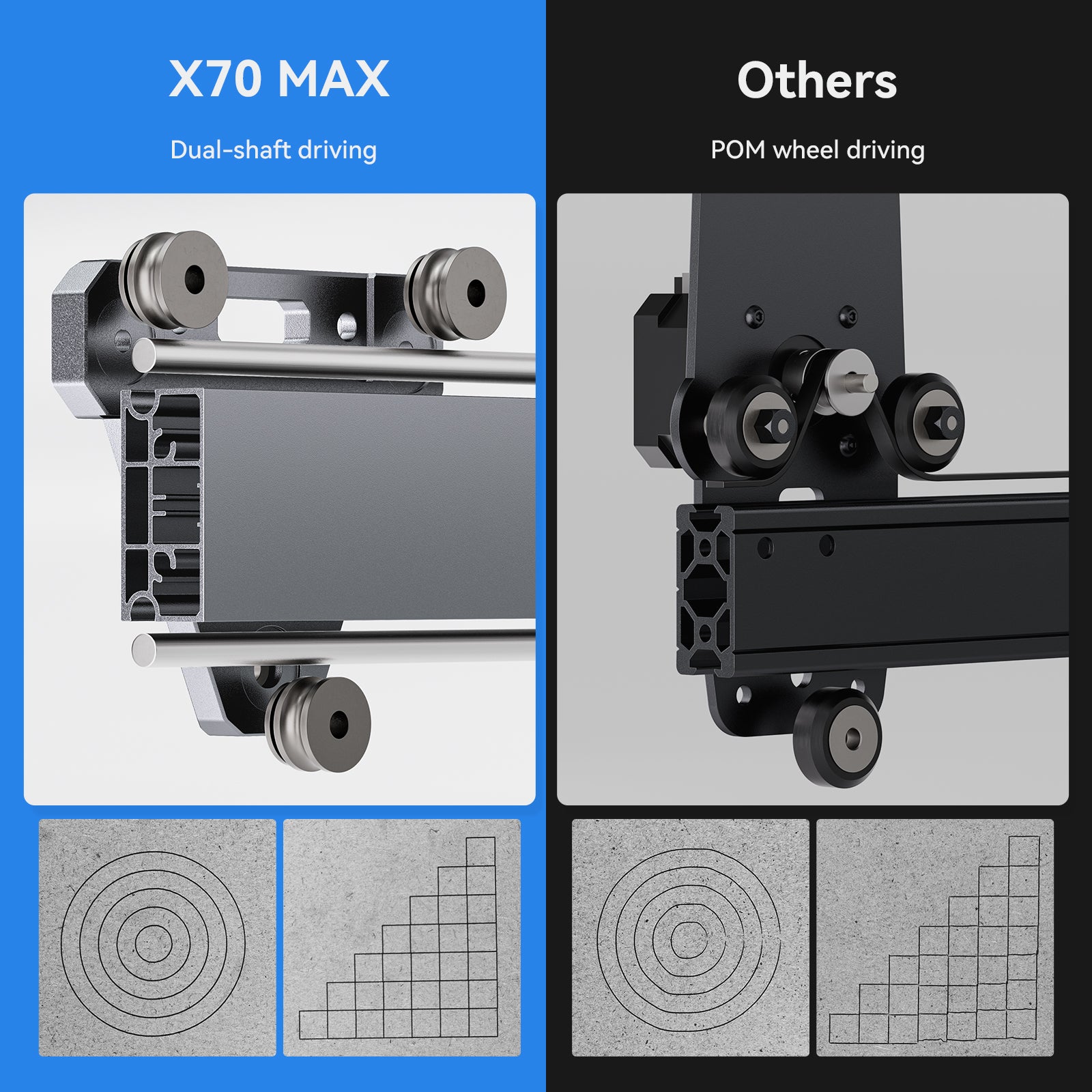

3. New motion structure: To ensure high-speed stable operation, the machine's three axes adopt a new low center of gravity dual-axis guide rail structure, stable operation at high speed, quiet, suitable for heavy-duty engraving and cutting work
4. Offline work: Product comes with a second-generation smart board and control screen, can work offline without a computer or phone
5. Standard large flow air assist: Maximum 60L/min air assist ensures flawless cutting work, surface of the cut lines does not turn yellow, extends the life of the laser
6. Multiple usage scenarios: can work on reflective metals, ceramics, black acrylic, supports woodworking, painting art, DIY creation, billboards, metal marking, clothing design
7. Quick accuracy maintenance: at a high-speed operation of 400mm/s, can maintain accuracy of 0.01mm

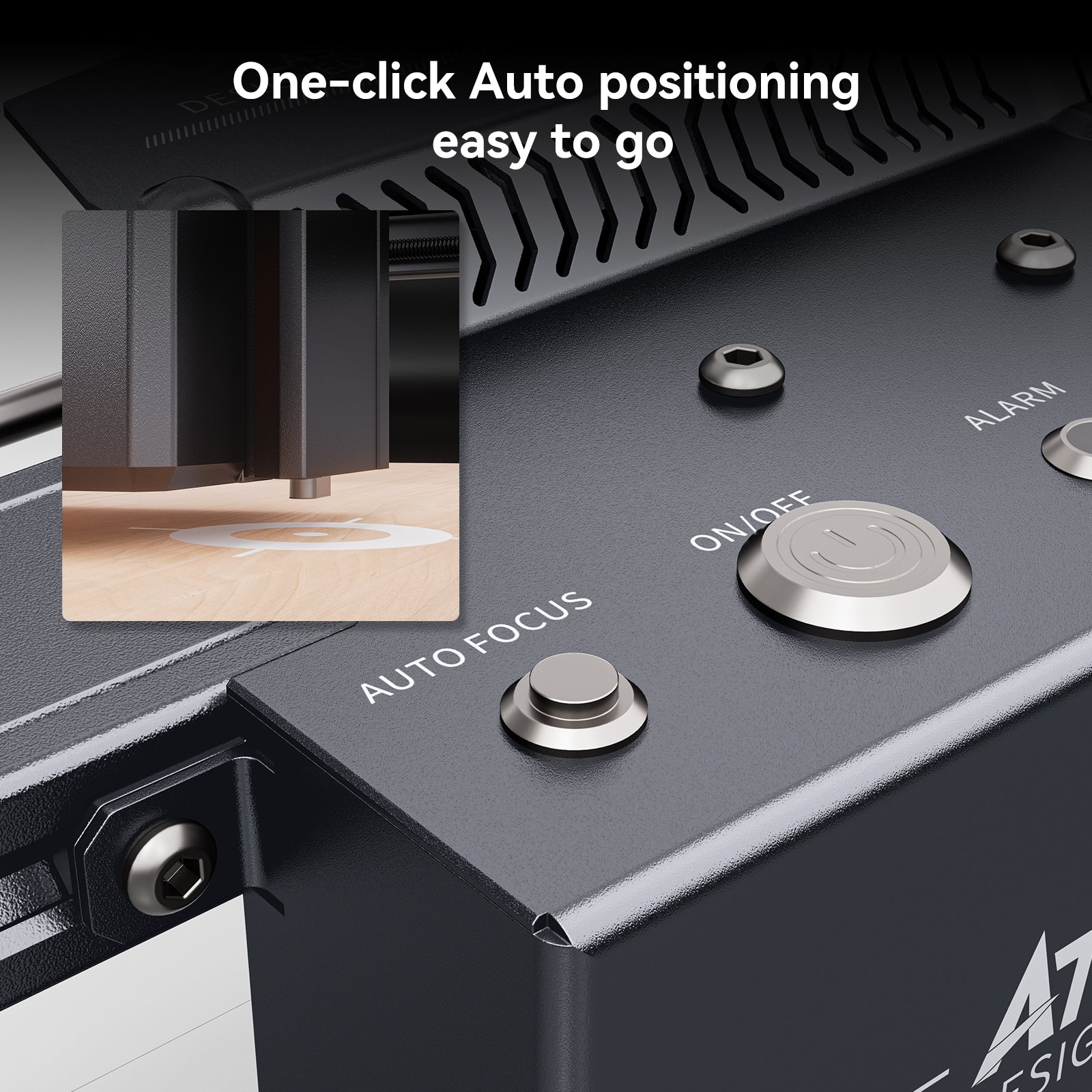

8. Dual-mode focus adjustment: supports manual and automatic focus adjustment, completes focus adjustment within 8 seconds
9. Automatic flame alarm: triggers an alarm and stops working when the wavelength points of the flame spot in the working area exceed 35%, accurate and fast
10. Intelligent cooling system: opens the double-layer air guide hood air assist, automatically turns on air assist during cutting for better heat dissipation and cutting effects
11. Power-off resume function: in case of power outage during creation, resumes unfinished creation when power is restored
Tech Specs:
Product Model: Atomstack X70 Max
Device Size: 1056*1168*230mm
Engraving Size: 850*800mm
Working Principle: Engraving / Cutting
Engraving Materials: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, glass, ceramics, cotton, slate;
Cutting Materials: Thin steel plate, cardboard, non-woven fabric, wood, acrylic, more thin plastic sheets, sponge;
Input Power: 360W

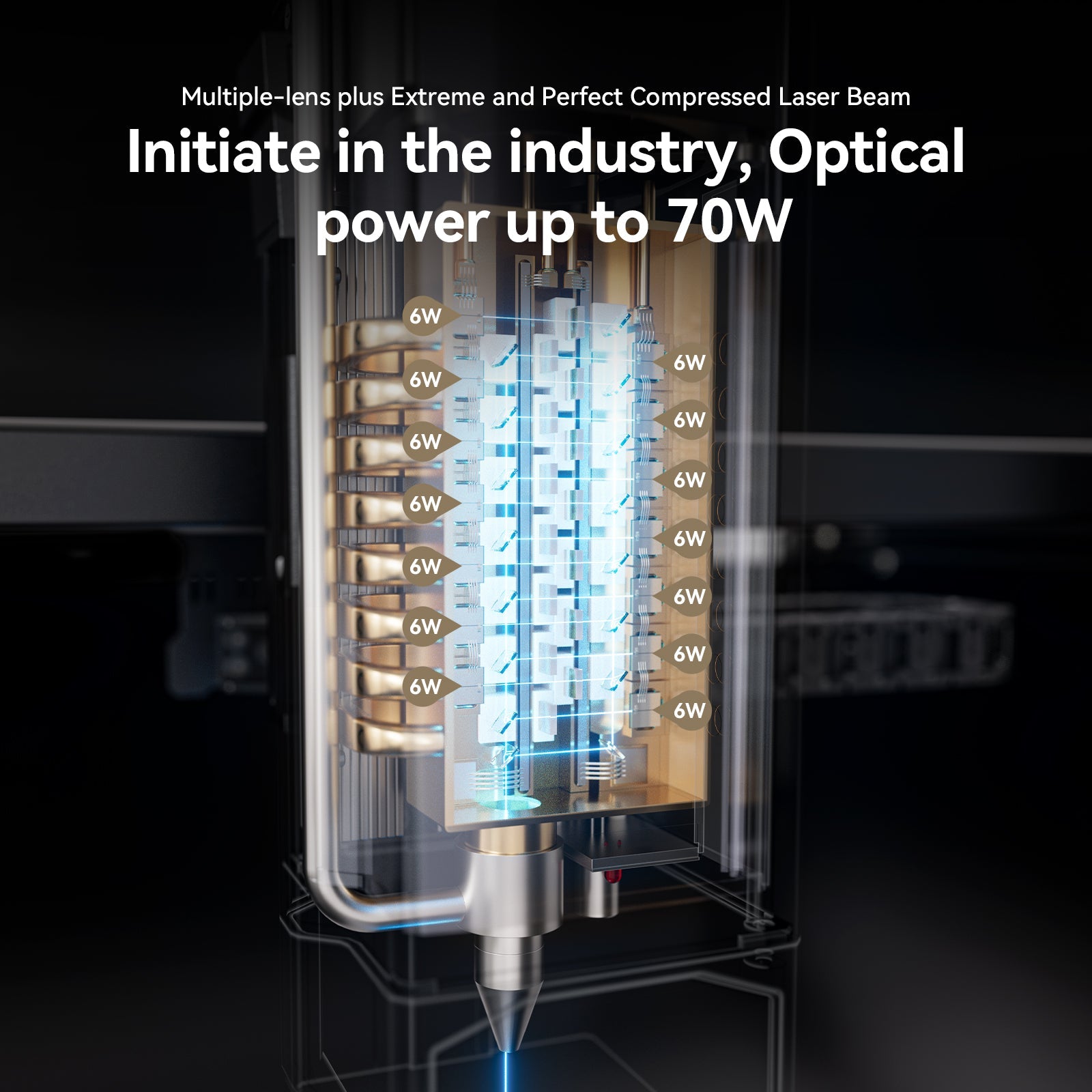

Output Power: 70-77W, 35-39W
Maximum Speed: 400mm/s (24000mm/min)
Laser Wavelength: 455±5nm
Engraving Accuracy: 0.01mm
Repetition Accuracy: 0.1mm
Spot Size: 0.12*0.18mm (70W) / 0.08mm*0.12mm (35W)
Transmission Method: USB transmission
Focus Adjustment Method: Automatic focus + manual focus
Screen Control: 4.3 inches
Connection Support: Type-C, mobile WiFi, touch screen
Support Systems: IOS, Android, Windows, Mac
Operating Software: LaserGRBL, LightBurn, AtomStack Studio
Air Flow Rate: 0-60 L/min infinitely adjustable
Power Supply: Input 100-240V AC, 50/60HZ, output 12V 5A
Quality Certification: CE, FCC, RoHS, FDA, PSE
Package:
1 * Atomstack X70 Max 360W machine
1 * 360W switching power supply
1 * F60 air assist kit
1 * Control Terminal
More Details:
Specification
Product Model
Atomstack X70 Max
Device Size
1056*1168*230mm
Engraving Size
850*800mm
Working Principle
Engraving / Cutting
Engraving Materials
Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, glass, ceramics, cotton, slate;
Cutting Materials
Thin steel plate, cardboard, non-woven fabric, wood, acrylic, more thin plastic sheets, sponge;
Input Power
360W
Output Power
70-77W, 35-39W
Maximum Speed
400mm/s (24000mm/min)
Laser Wavelength
455±5nm
Engraving Accuracy
0.01mm
Repetition Accuracy
0.1mm
Spot Size
0.12*0.18mm (70W) / 0.08mm*0.12mm (35W)
Transmission Method
USB transmission
Focus Adjustment Method
Automatic focus + manual focus
Screen Control
4.3 inches
Connection Support
Type-C, mobile WiFi, touch screen
Support Systems
IOS, Android, Windows, Mac
Operating Software
LaserGRBL, LightBurn, AtomStack Studio
Air Flow Rate
0-60 L/min infinitely adjustable
Power Supply
Input 100-240V AC, 50/60HZ, output 12V 5A
Quality Certification
CE, FCC, RoHS, FDA, PSE
